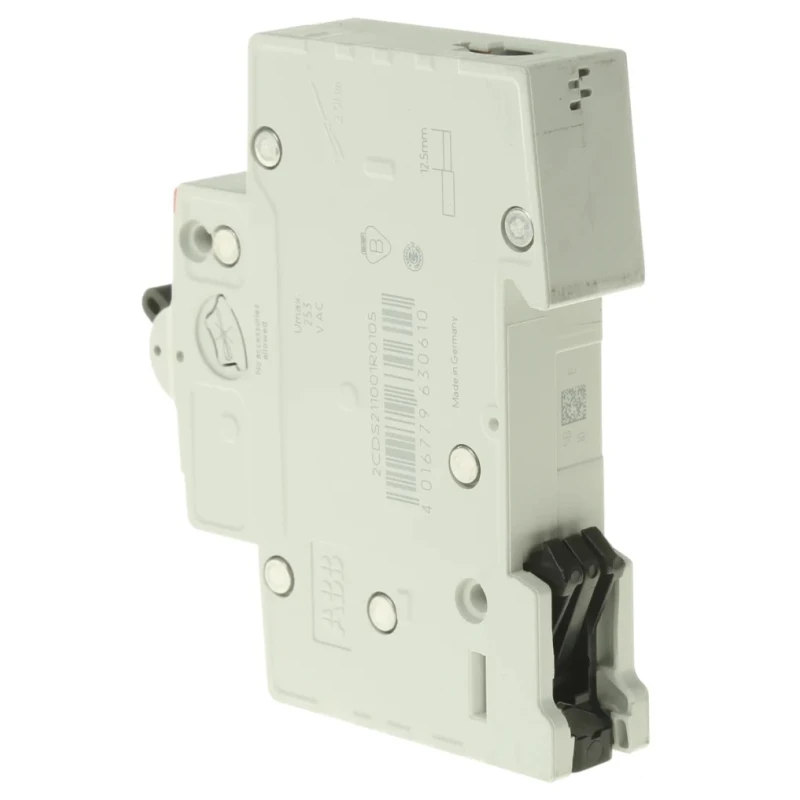

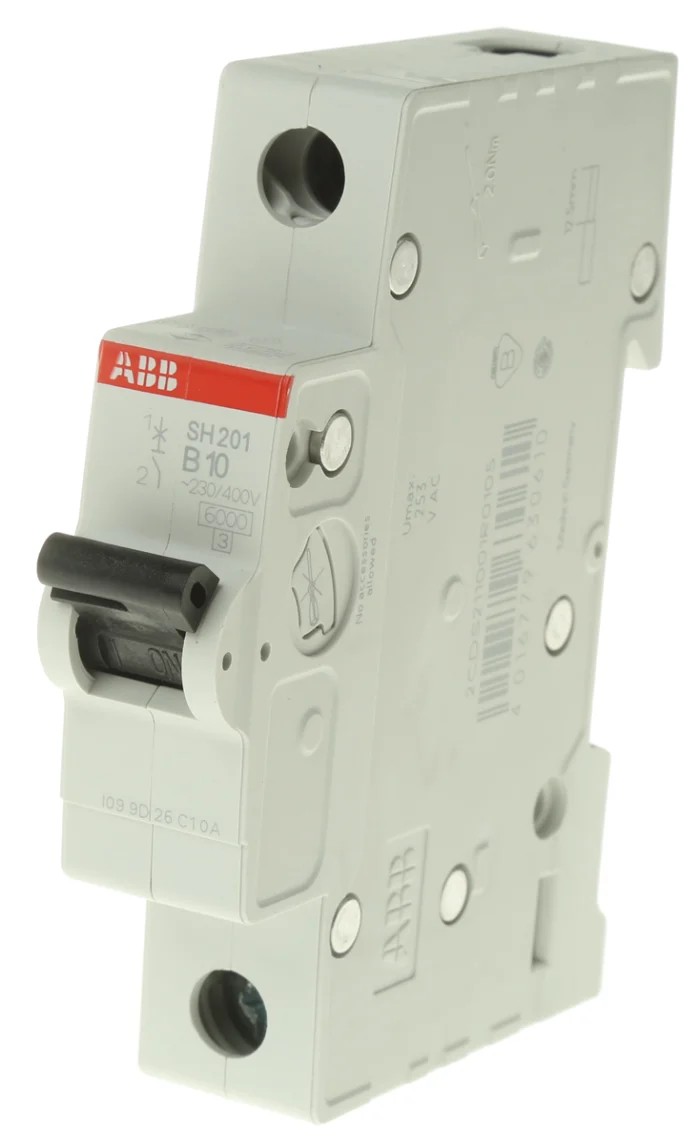

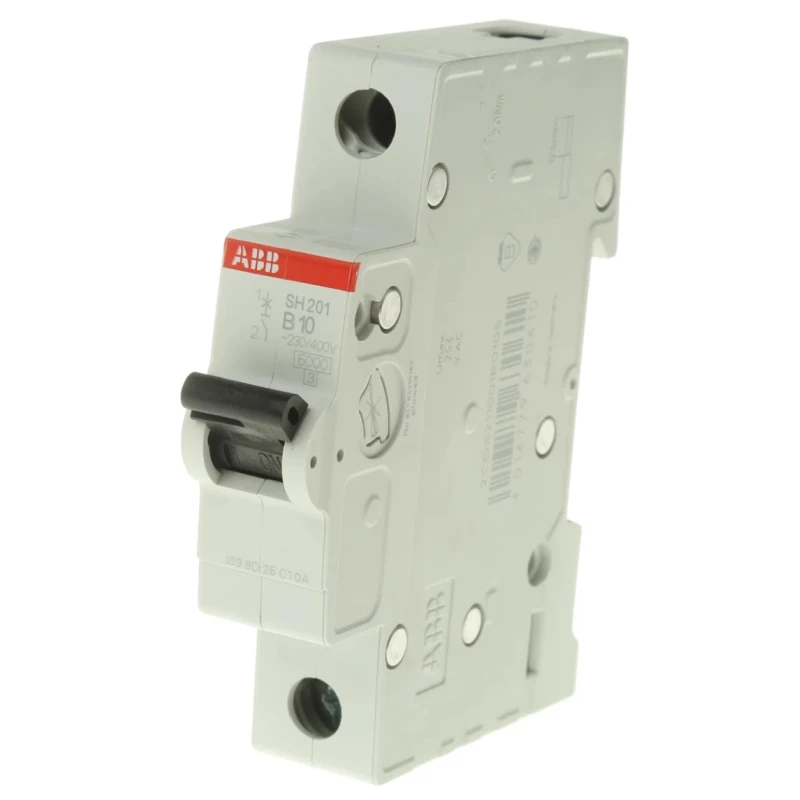

ABB ComPact Home Miniature Circuit Breaker 1-Pole 10A Type B 440V AC 60V DC 6kA Breaking Capacity SH200

Free Delivery in India | Lowest Global Shipping Charges

ABB ComPact Home Miniature Circuit Breaker 1-Pole 10A Type B 440V AC 60V DC 6kA Breaking Capacity SH200



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	ComPact Home
Brand	ABB
Height	85mm
Model	SH200
Depth	69mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	10A
Series	SH200
Terminal type	Screw Clamp
Breaking Capacity	6kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1
Rated AC Voltage	440V ac
Rated DC Voltage	60V dc
Tripping Characteristics	Type B
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Designed for both AC (440V) and DC (60V) electrical systems.
Offers a breaking capacity of 6 kA for enhanced circuit protection.
Compact design suitable for DIN rail mounting in constrained spaces.
Features a toggle switch reset actuator for ease of operation.
Complies with IEC/EN 60898-1 safety standards for quality assurance.
Constructed with electromagnetic and thermomagnetic tripping mechanisms.
IP20 rated for protection against solid objects and limited ingress of dust.
Made in Germany with a focus on sustainability, designed for disassembly.

Product Description

ABB SH200 Miniature Circuit Breaker, model 2CDS211001R0105 SH201-B10, is a high-quality electrical protection device designed for residential, commercial, and light industrial applications. Featuring a 1-pole configuration with a rated current of 10A, this circuit breaker provides reliable protection against overloads and short circuits with Type B tripping characteristics.

The breaker supports both alternating current (440V AC) and direct current (60V DC), with a robust breaking capacity of 6 kA, ensuring quick interruption of fault currents to safeguard wiring and equipment. Its compact size and DIN rail mounting compatibility allow for seamless installation in distribution boards and control panels where space is limited.

Equipped with an electromagnetic and thermomagnetic trip mechanism, the device ensures both instantaneous response and long-term protection. The toggle switch actuator enables straightforward manual resetting after tripping events. Rated IP20, it offers adequate protection against solid particles and is suitable for many indoor environments.

Manufactured in Germany, this breaker is part of ABB’s ComPact Home range and is designed for disassembly to promote environmental sustainability. Dimensions of 85mm height, 17.5mm width, and 69mm depth make it suitable for compact electrical enclosures and systems.

Supports rated current of 10A and breaking capacity of 6 kA. Compatible with AC (440V) and DC (60V) power networks. Compact design enabling installation in tight spaces via DIN rail mount. Meets IEC/EN 60898-1 standards for enhanced safety and reliability.

Toggle switch reset mechanism for easy operation post-trip. Thermomagnetic and electromagnetic tripping for versatile protection. Environmental sustainability ensured through designed disassembly.

This ABB SH200 Miniature Circuit Breaker is ideal for protecting lighting circuits, home appliances, and control panels across residential and commercial electrical systems. Find additional ABB circuit breakers and accessories in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ABB SH200 Miniature Circuit Breaker has a breaking capacity of 6 kA, which ensures quick interruption of fault currents to protect wiring and equipment.

This model has a rated current of 10A, making it suitable for various residential and commercial applications.

It supports both alternating current at 440V AC and direct current at 60V DC, providing versatility for different electrical systems.

The ABB SH200 features Type B tripping characteristics, which are designed for protecting circuits with moderate inrush currents, such as lighting and heating.

The dimensions of this unit are 85mm in height, 17.5mm in width, and 69mm in depth, allowing for compact installation in tight spaces.

It is designed for DIN rail mounting, which facilitates easy installation in distribution boards and control panels.

This circuit breaker is equipped with a toggle switch reset actuator, allowing for straightforward manual resetting after a trip.

It complies with IEC/EN 60898-1 safety standards, ensuring quality assurance and reliability in electrical protection.

The ABB SH200 has an IP20 rating, providing protection against solid objects and limited ingress of dust, suitable for indoor environments.

It utilizes both electromagnetic and thermomagnetic tripping mechanisms, offering instantaneous response and long-term protection against overloads and short circuits.

This miniature circuit breaker is manufactured in Germany, emphasizing sustainability and designed for disassembly.

It is ideal for protecting lighting circuits, home appliances, and control panels across residential and commercial electrical systems.
