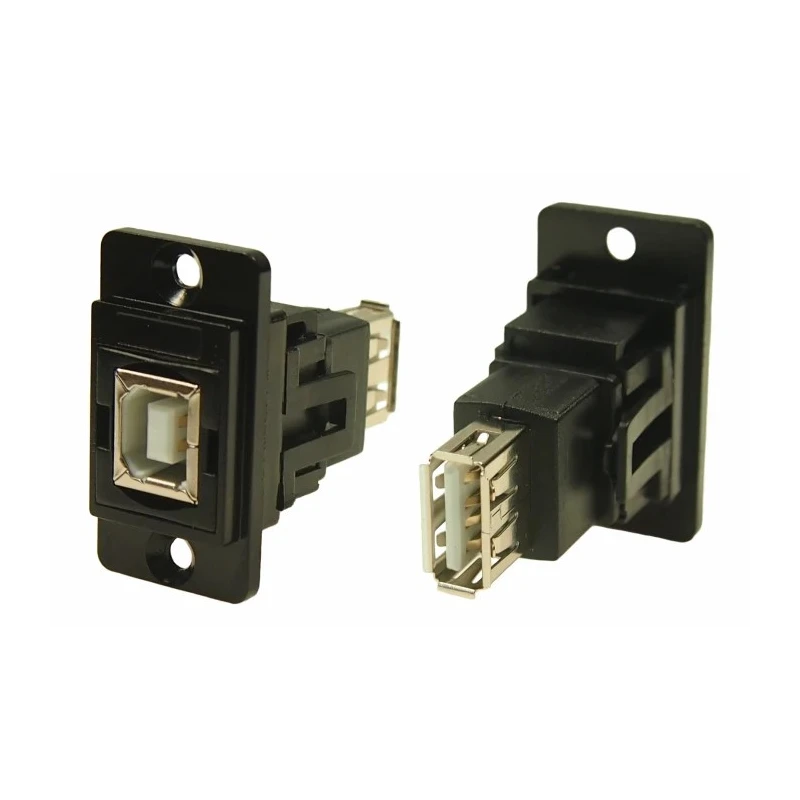

RS PRO USB Connector Panel Mount Female/Female 2 Port Type USB Type B to A USB 2.0 235-4753

RS PRO 235-4753 USB Connector is a panel mount, female to female USB Type B to A connector designed for USB 2.0 applications operating at 30 V AC and 1.5 A max current. This connector features a straight orientation and a slim dual mounting design that allows front and rear mounting on panels or rack enclosures. Its compact build with low rear profile suits applications with limited space.

The connector has an ABS insert, with a frame available in diecast nickel or black plating, and a nickel-plated steel shell. Its gold plated contacts ensure excellent electrical conductivity and low contact resistance of 50 mΩ max. It supports an operating temperature range from -20°C to 50°C, allowing use in various environments without degradation.

Installation is simplified with push-fit panel mounting, requiring no soldering or punch termination. The connector is well suited for telecommunications equipment, Ethernet networking interfaces, audio soundboards, and computer connectivity, ensuring high-quality data transmission. With a dielectric withstanding voltage of 500 V AC, it provides safety and reliability.

The connector supports USB 2.0 standard for high-speed data transfer. Panel mount type with standardized rectangular cut-outs and mounting holes. Durable construction with ABS inserts, diecast nickel or black metal frames, and nickel plated steel shell.

Gold plated contacts reduce contact resistance and ensure reliable signal integrity. Operating temperature range of -20°C to 50°C supports diverse environments. Rated for 30 V AC voltage and 1.5 A maximum current capacity.

Push-fit installation eliminates the need for soldering or punch termination. Low rear profile design optimizes space-saving in panel or rack mounting applications. RS PRO build quality ensures rigorously tested, high reliability performance.

Applications include telecommunications, audio, networking, and computing devices.

This RS PRO USB connector is part of a broad range of feedthrough USB connectors known for their quality and value. They meet demanding industry standards and provide exceptional reliability for industrial and commercial electronic connectivity requirements.
