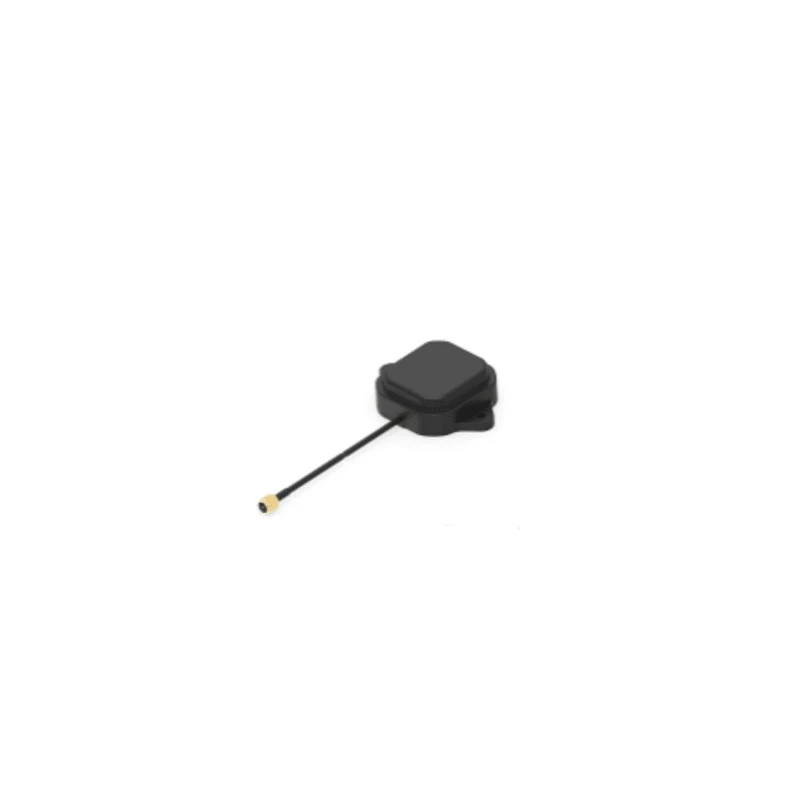

TE Connectivity GPS Patch Omni-Directional Active Antenna 11.1dBi 2108912-1
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TE Connectivity |
| Gain | 11.1dBi |
| Lead Length | 55mm |
| Standards/Approvals | RoHS |
| Connector Gender | Female |
| Internal/External | Internal |
| RF Protocols | GPS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Adhesive |
| Directivity | Omni-Directional |
Key Features
- The antenna is designed as an internal, adhesive-mounted patch type.
- It features a female connector and a 55mm lead length attachment.
- No matching circuits are required, ensuring easy integration.
- The antenna impedance is 50 ohms for consistent signal quality.
- Designed with RoHS compliance and Korean origin, suitable for strict regulatory standards.
- The compact dimensions are 12.0 mm by 12.0 mm by 5.2 mm for space-efficient applications.
- Based on a 150 mm diameter ground plane for optimal signal performance.
- Various cable lengths and connector options are available for customization.
Product Description
TE Connectivity 2108912-1 GPS Patch Omni-Directional Active Antenna is an internal adhesive-mounted antenna designed for GNSS applications operating on the L1 band with high RHCP polarization. It offers a gain of 11.1dBi, ensuring enhanced reception for GPS signals.
This antenna's patch form factor is compact at 12.0 mm x 12.0 mm x 5.2 mm, making it ideal for integration into various electronic devices where space is at a premium. The 55 mm lead length with a female connector facilitates easy and secure connection within systems.
The antenna features an impedance of 50 ohms and requires no matching circuits, simplifying installation and signal matching in GNSS receiver setups. Its omni-directional directivity ensures consistent satellite signal acquisition in diverse environments.
Manufactured under RoHS standards in Korea, the product meets environmental and quality compliance for electronics components. Its design is based on a 150 mm diameter ground plane, which contributes to its signal reception performance.
Applications for this antenna include industrial GNSS receivers, automotive navigation systems, and commercial electronic equipment demanding reliable GPS signal reception. Custom cable lengths and connector configurations are available to meet varied installation requirements.
The antenna is designed as an internal, adhesive-mounted patch type. It features a female connector and a 55mm lead length attachment. No matching circuits are required, ensuring easy integration. The antenna impedance is 50 ohms for consistent signal quality.
Designed with RoHS compliance and Korean origin, suitable for strict regulatory standards. The compact dimensions are 12.0 mm by 12.0 mm by 5.2 mm for space-efficient applications. Based on a 150 mm diameter ground plane for optimal signal performance.
Various cable lengths and connector options are available for customization. Explore more GPS antennas from TE Connectivity on EnvMart to find the best solution for your GNSS and positioning needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a female connector, facilitating easy and secure connections within systems.
The lead length of this antenna is 55mm, allowing for flexible installation options.
The antenna has an impedance of 50 ohms, ensuring consistent signal quality.
This model is designed for adhesive mounting, making it suitable for internal applications.
The antenna is designed in a patch form factor, which is compact and space-efficient.
The dimensions of the antenna are 12.0 mm by 12.0 mm by 5.2 mm.
Yes, the antenna is designed with RoHS compliance, meeting strict regulatory standards.
This model features omni-directional directivity, ensuring consistent satellite signal acquisition.
It is designed based on a 150 mm diameter ground plane for optimal signal performance.
Yes, various cable lengths and connector configurations are available for customization to meet installation requirements.
