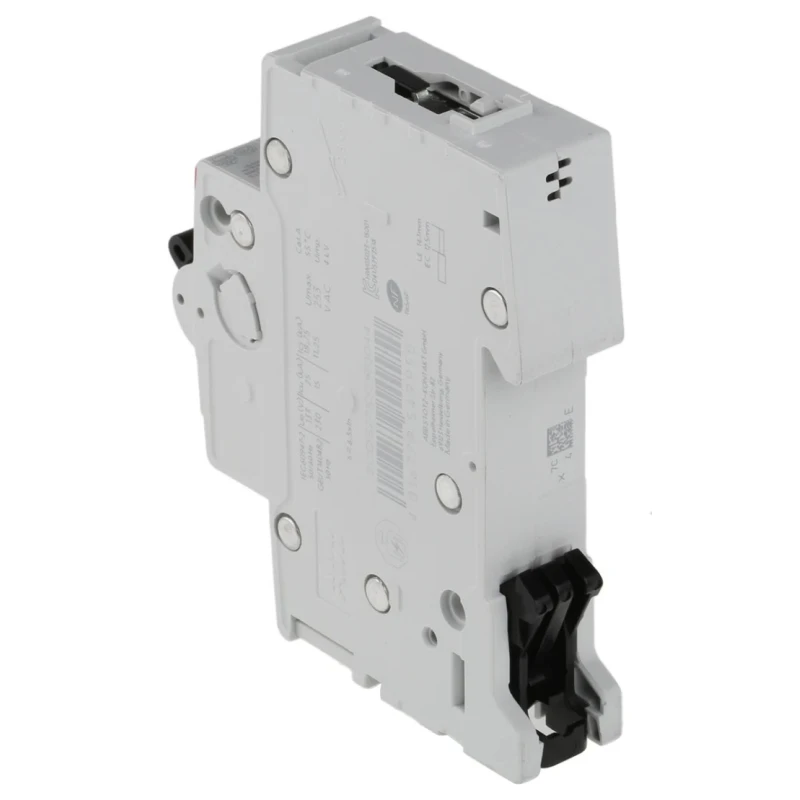

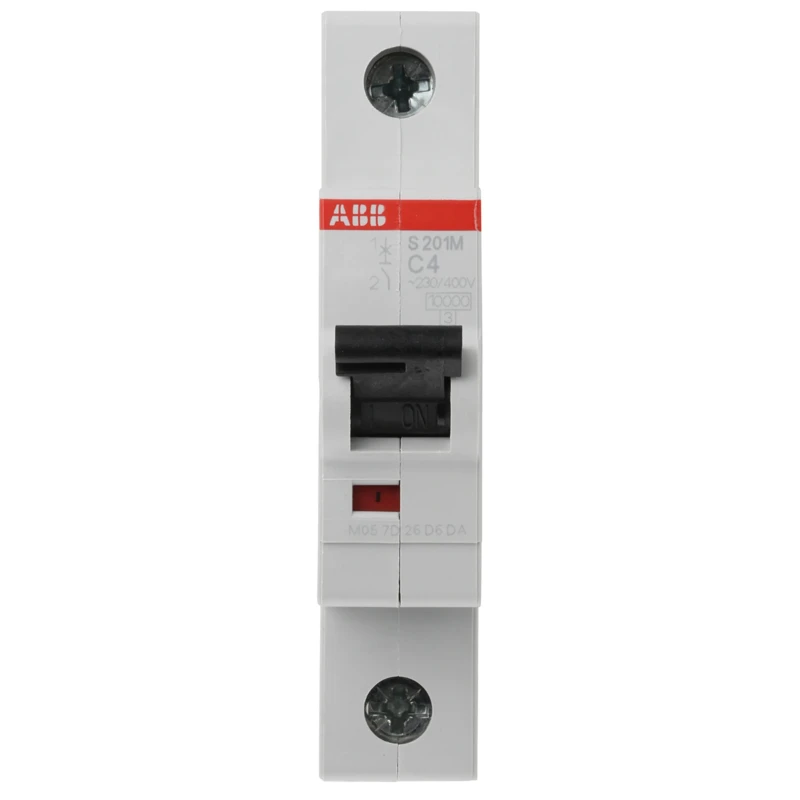

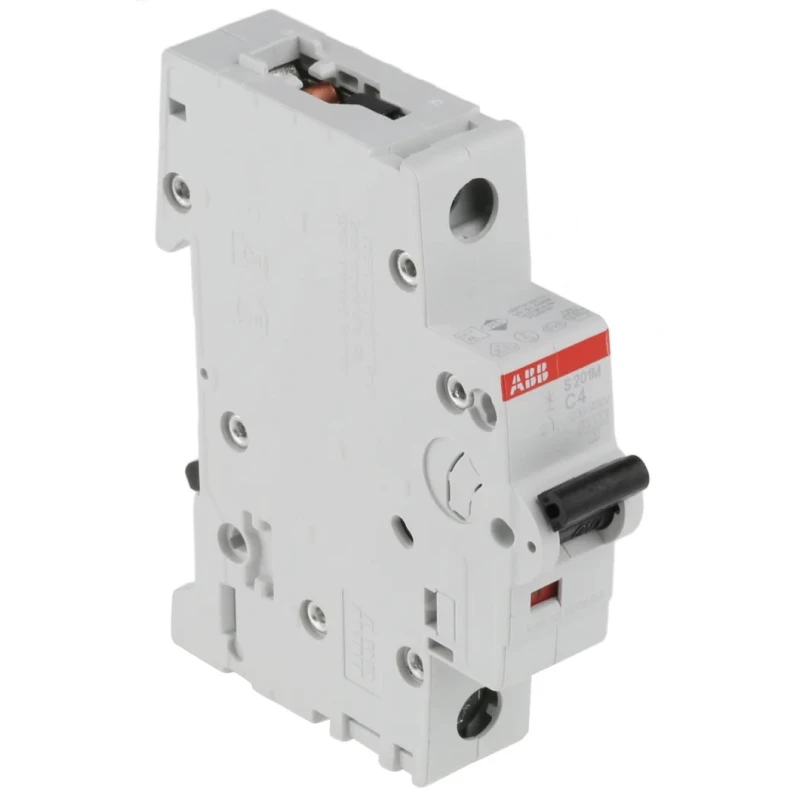

ABB Miniature Circuit Breaker 1-Pole, 4A, Type C, Rated 253V AC, 72V DC, Breaking Capacity 10kA 2CDS271001R0044 S201M-C4
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS271001R0044 S201M-C4 |
| Depth | 76mm |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | System Pro M Compact |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 253V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
Key Features
- Suitable for both AC and DC voltage supplies, rated at 253V AC and 72V DC.
- Type C tripping characteristic ideal for low current applications.
- Breaking capacity of 10kA to handle heavy current surges safely.
- Compact 17.5mm width fits into tight panel spaces.
- Easy DIN rail mounting with screw terminals.
- Mechanical endurance of 20,000 operating cycles for long life.
- IP40 rating provides finger protection against solid objects.
- Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
Product Description
ABB 2CDS271001R0044 S201M-C4 Miniature Circuit Breaker (MCB), 1-Pole, 4A current rating, Type C tripping characteristics, rated for 253V AC and 72V DC, is designed to protect electrical circuits from short circuits and overloads in industrial, commercial, and telecommunications applications.
This circuit breaker utilizes a delayed thermal tripping mechanism combined with an electromechanical system to provide reliable interruption of fault currents and prolonged service life. Its breaking capacity of 10kA ensures capability to handle heavy current spikes without damage.
The narrow 17.5mm width allows efficient use of panel space and easy installation on standard DIN rails with screw terminals. With an IP40 rating, the device is protected against contact with fingers and objects greater than 1mm, enhancing safety in various environments.
Manufactured in Germany, this MCB complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, assuring high quality and reliability in performance. Mechanical endurance rated at 20,000 operating cycles further guarantees long-term operational stability.
With versatility for use on both AC and DC voltage supplies, this Miniature Circuit Breaker is suitable for telecommunications equipment, cooling systems, and industrial lighting where precise overload protection is paramount.
Suitable for AC and DC use with rated voltages of 253V AC and 72V DC. Type C tripping characteristic cuts circuits between 5 and 10 times the rated current. Compact 17.5mm width for space-efficient panel installation. IP40 rating offers protection against finger contact and solid foreign objects.
Breaking capacity of 10kA for safe interruption of fault currents. Reliable mounting on DIN rail using screw terminals. Mechanical endurance of 20,000 operating cycles ensures long-term reliability. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
Manufactured in Germany for assured quality. Explore the ABB range of circuit protection devices on EnvMart for trusted industrial and commercial electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 4A.
It has a breaking capacity of 10kA, allowing it to safely handle heavy current surges.
It is rated for 253V AC and 72V DC, making it suitable for both AC and DC voltage supplies.
This circuit breaker features Type C tripping characteristics, which cut circuits between 5 and 10 times the rated current.
The width of this unit is 17.5mm, allowing for efficient use of panel space.
It is designed for easy mounting on DIN rails using screw terminals.
It has a mechanical endurance rating of 20,000 operating cycles, ensuring long-term operational stability.
The height is 88mm and the depth is 76mm.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
It is suitable for use in industrial, commercial, and telecommunications applications where overload protection is necessary.
It has an IP40 rating, providing protection against finger contact and solid objects greater than 1mm.
This model is manufactured in Germany, ensuring high quality and reliability.
