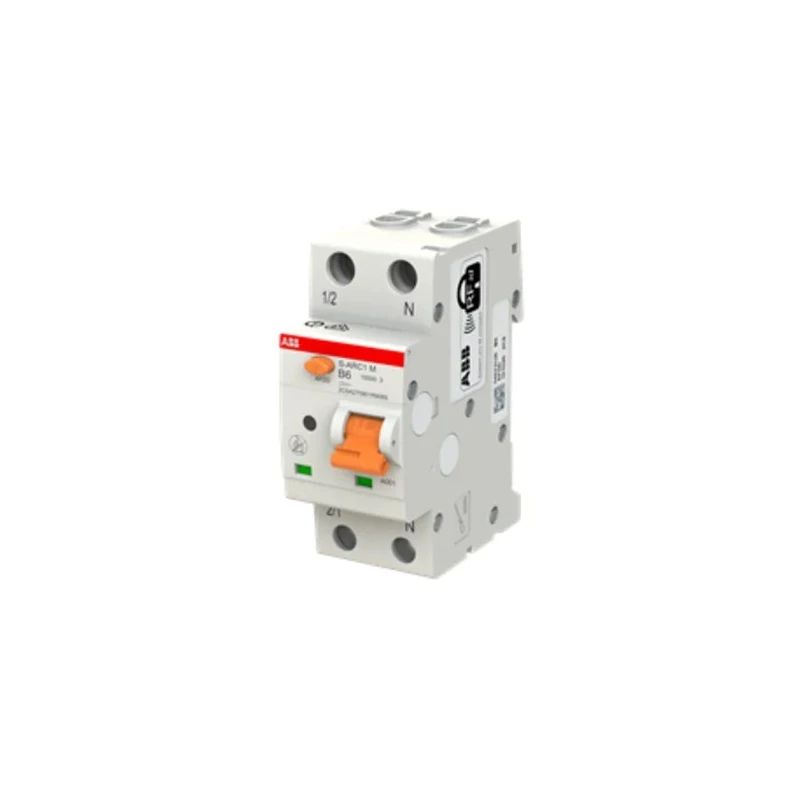

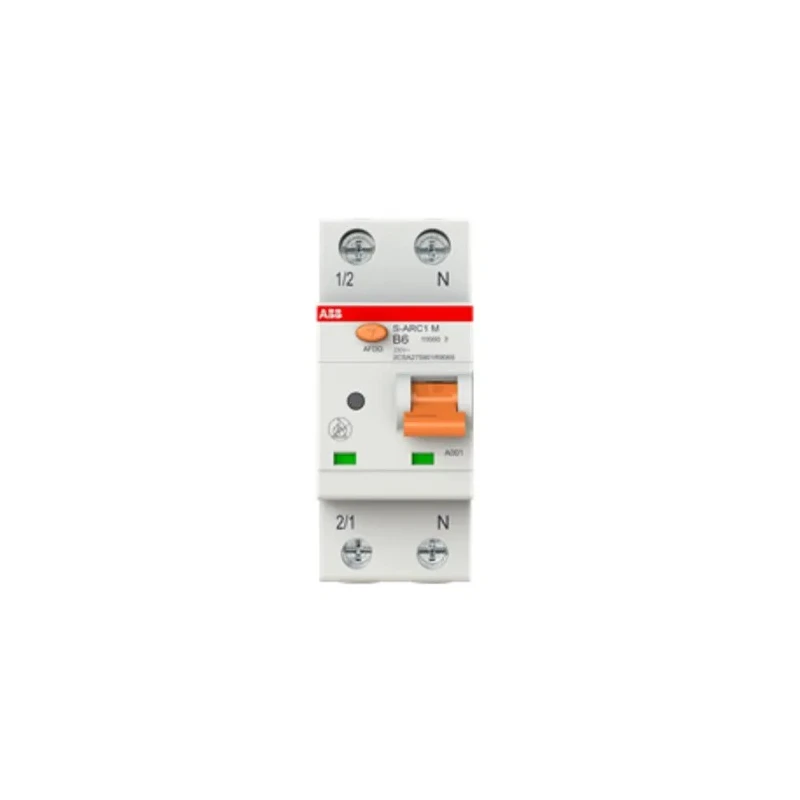

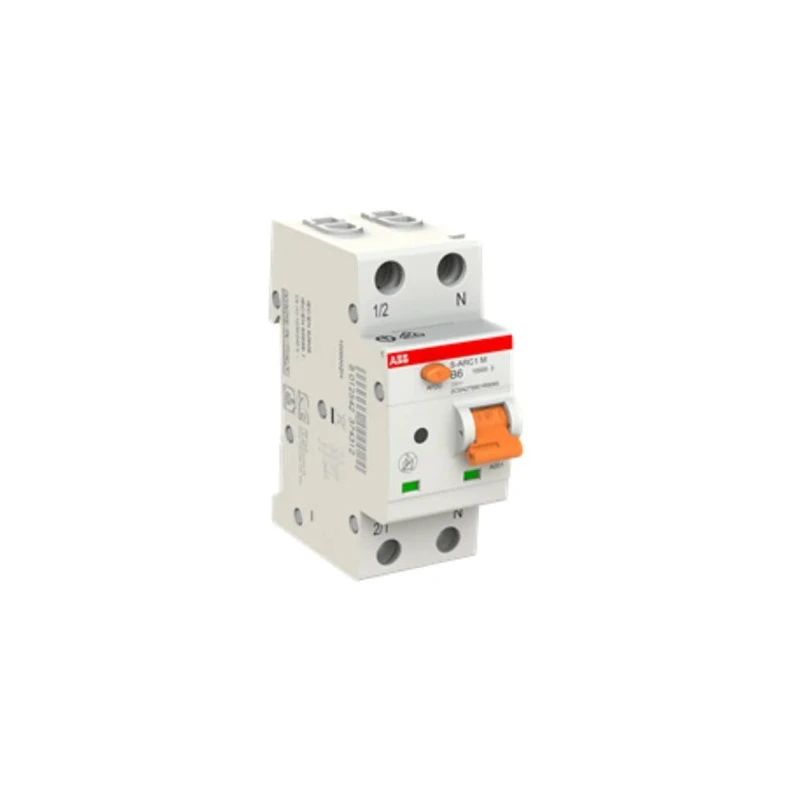

ABB Miniature Circuit Breaker S-ARC1 M 1-Pole 6A Type B 240V AC 10kA Breaking Capacity 2CSA275901R9065 S-ARC1 M B6

ABB 2CSA275901R9065 S-ARC1 M B6 Miniature Circuit Breaker is engineered to deliver efficient and safe circuit protection in residential, commercial, and light industrial environments. This breaker features a single-pole design suitable for single-phase AC applications, making it ideal for protecting various electrical lighting and automation circuits.

The device supports a current rating of 6 amps, allowing it to effectively manage and safeguard circuits with moderate current flow. It meets international standards IEC/EN 60898-1 and IEC/EN 62606, confirming its compliance with electrical safety and performance benchmarks.

Constructed with a DIN rail mount type, the breaker effortlessly integrates into common electrical distribution boards. Its compact dimensions - 35 mm width, 85 mm height, and 69 mm depth - enable space-efficient installation, especially in constrained panel environments.

This Model employs Type B tripping characteristics, offering immediate response to overloads and short circuits typical in domestic and light commercial setups. The thermal magnetic tripping mechanism combines reliable thermal protection with magnetic short circuit interruption for enhanced safety.

With a breaking capacity of 10 kA, this breaker can disconnect fault currents rapidly to prevent damage to wiring and downstream equipment. The toggle switch reset actuator allows for easy restoration post-trip, while screw terminals facilitate secure wiring connections to ensure long-term operational reliability.

The product carries an ingress protection rating of IP40 and IP20, providing resistance against solid ingress and enhancing its durability in various installation settings.

Applications for the ABB S-ARC1 M include protection of lighting circuits in commercial buildings, integration within residential and industrial automation systems, and incorporation into electrical distribution boards where dependable short circuit protection and compact dimensions are crucial.

Manufactured in Italy, this Miniature Circuit Breaker offers trusted quality, certified standards, and dependable service life for electrical safety professionals. Explore more products in the Miniature Circuit Breaker category for a comprehensive selection of protective devices.

Designed with a 1-pole configuration for use in single-phase circuits. Features a 6 amp current rating suitable for low power circuits. Equipped with Type B tripping characteristics for prompt response to overload conditions.

Operates at a rated AC voltage of 240 volts compatible with standard installations. Offers a breaking capacity of 10 kiloamperes ensuring strong short circuit protection. Compact design with 35 mm width fits standard DIN rail mountings.

Includes thermal magnetic trip mechanism for dependable circuit interruption. Screw terminal type ensures secure and easy wiring connections. Provides ingress protection rated at IP40 and IP20 for enhanced durability. Reset actuator uses a toggle switch for user-friendly operation.
