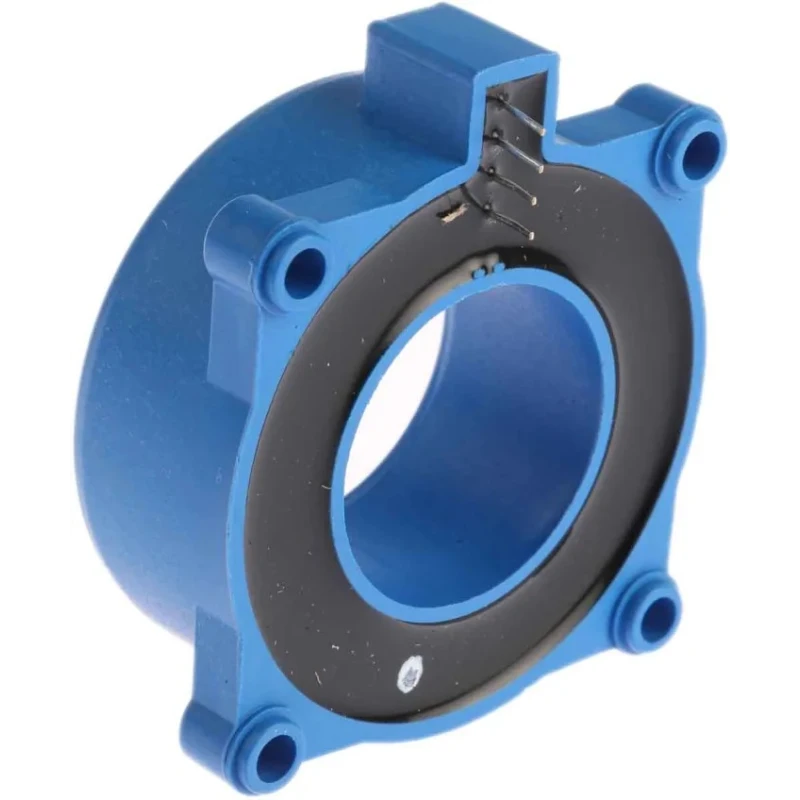

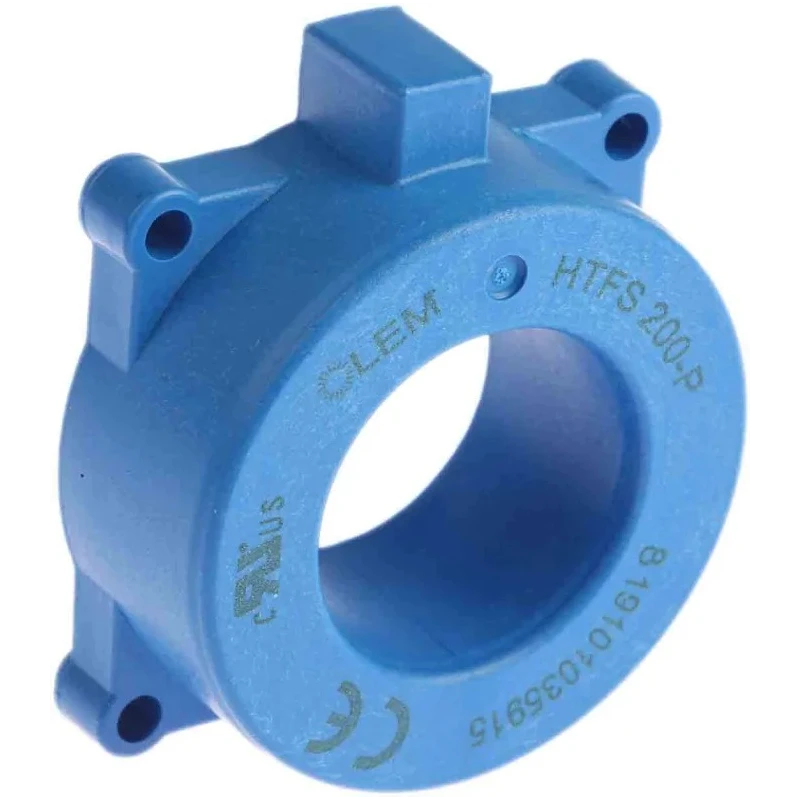

LEM HTFS 200 .. 800-P Series Current Transformer 300 A 5V 22mm Bore HTFS 200-P

LEM HTFS 200-P series current transformer is a high-precision PCB-mounted Hall Effect current transducer engineered with proprietary ASIC technology. It supports AC, DC, and mixed current measurements with a 300 A primary current and uses a unipolar 5V supply voltage. Designed for industrial, laboratory, and automation applications, this device provides a ratiometric output that is proportional to the supply voltage, enabling accurate current sensing.

This transformer has a 22mm bore diameter with a compact depth of 17mm and a width of 4mm, making it suitable for space-constrained environments. It features a 4-pin terminal and screw mount design for secure and easy installation. The operating temperature range spans from -40°C to 105°C, allowing performance in various harsh conditions.

With compliance to EN 50178 standards, the HTFS 200-P ensures safety and reliability in diverse industrial settings including process control, electrical automation, and monitoring systems. Its low power consumption and extremely low profile enable integration in compact system designs. The P version includes a fixing mechanism using 4 mounting holes for enhanced mechanical stability during operation.

Precise AC, DC, and mixed current measurement using Hall Effect technology. 5V unipolar supply voltage with ratiometric output for accurate sensing. Robust operating temperature range from -40°C to 105°C for diverse environments.

Compact and low profile design enabling PCB mounting and space-saving installation. 4-pin terminal type and screw mount fitting for reliable mechanical attachment. Complies with EN 50178 standard ensuring high quality and safety standards.

Stable fixing with 4 mounting holes for secure placement in the P version. Suitable for industrial automation, process control, and measurement applications. Explore more LEM Current Transformers and related equipment on EnvMart for your precision electrical measurement needs.
