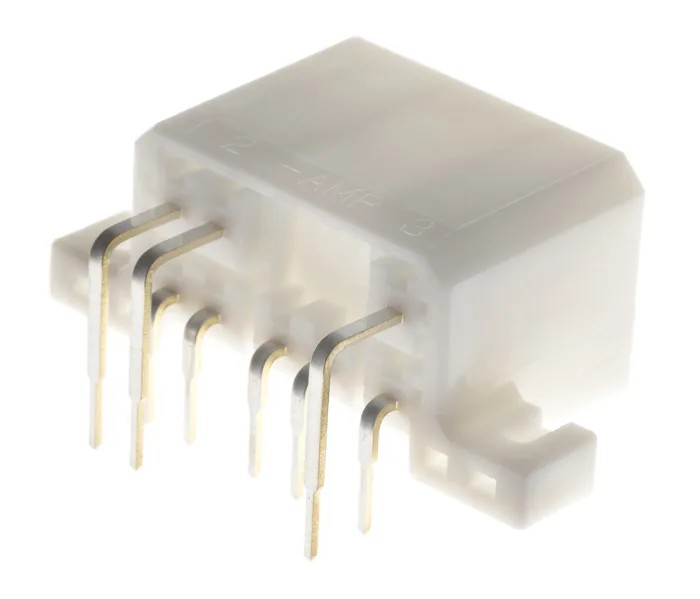

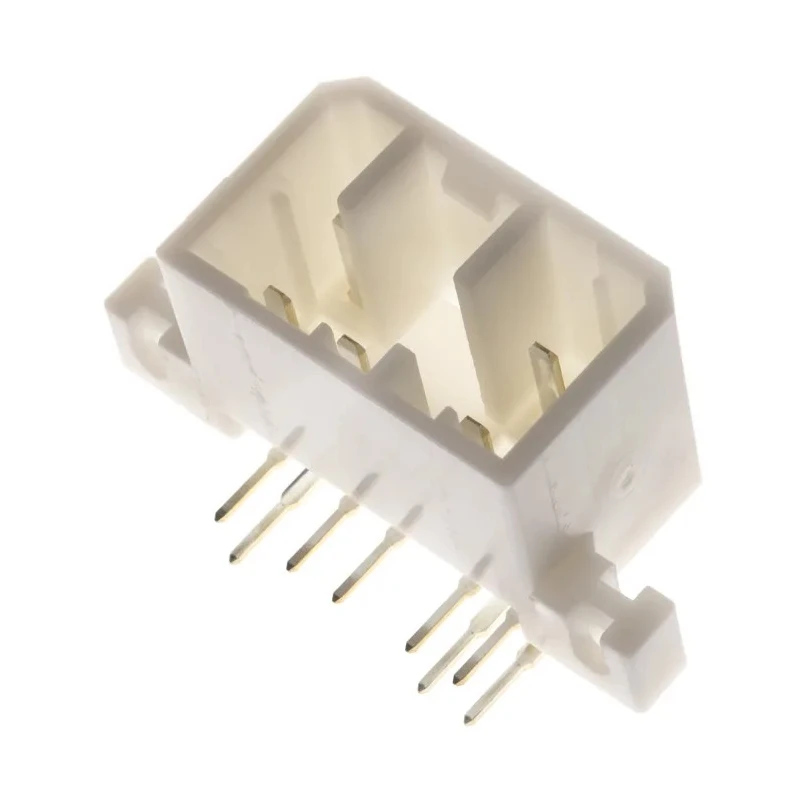

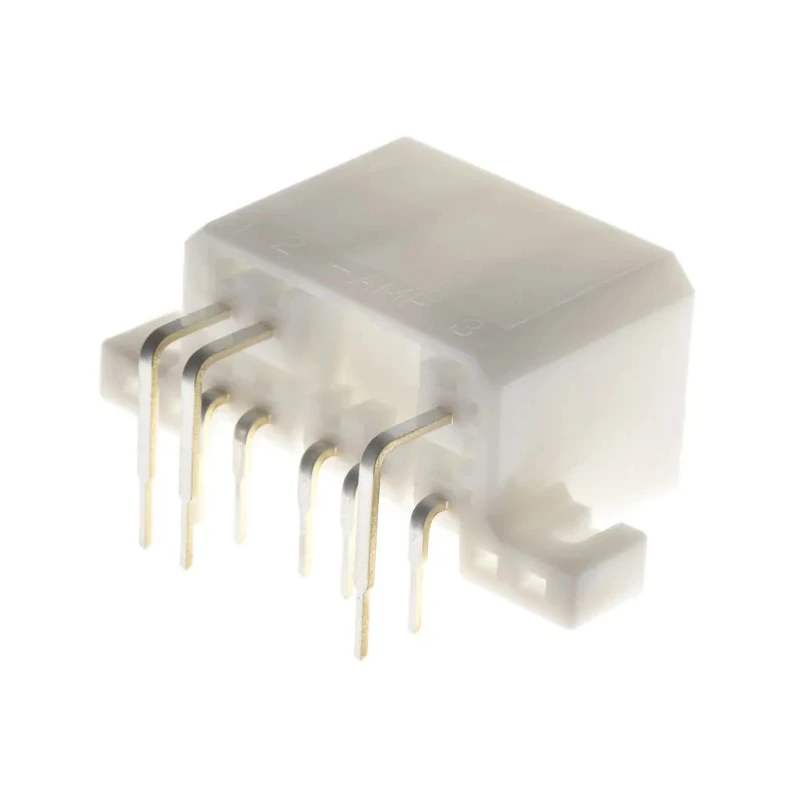

TE Connectivity MULTILOCK 070 Female Connector Housing 3.5 mm Pitch 8 Way 2 Row Right Angle 173856-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 39.3mm |
| Model | 173856-1 |
| Width | 15.8mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Series | MULTILOCK 070 |
| Interfaces | lance design |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| For Use With | Multilock Wire-to-Board Connector |
| Number of Contacts | 8 |
| Connector Gender | Female |
Key Features
- Compact and durable design for high-density electrical connections.
- Features a high-density 3.5 mm pitch between contacts for space saving.
- Right angle orientation enabling versatile mounting options.
- Integral double lock mechanism ensures secure contact retention.
- Manufactured from polybutylene terephthalate housing material offering robustness.
- Suitable for through-hole mounting on PCBs.
- Designed specifically for automotive powertrain, safety, and body systems.
- Housing lance design protects contacts from KOJIRI action damage during mating and unmating.
Product Description
TE Connectivity 173856-1 MULTILOCK 070 Female Connector Housing is a premium-quality electrical connector designed for automotive and industrial wire-to-board applications. It features an 8-contact, 2-row configuration with a miniaturized 3.5 mm pitch to enable high-density connections in compact spaces.
Constructed from durable polybutylene terephthalate, the housing protects contacts from mechanical damage caused by KOJIRI action during connection cycles. The right angle through-hole mount ensures flexible PCB layout options while maintaining reliable electrical performance.
The MULTILOCK 070 series incorporates a robust integral double locking system to ensure secure retention of crimped female contacts and prevent partial insertions. The housing lance design supports lanceless contacts, reducing deformation and enhancing durability.
This connector series is widely used in automotive applications, including powertrain control, safety and security systems, driver information modules, and body and chassis wiring harnesses. It offers excellent mechanical stability, durability, and ease of handling for demanding industrial environments.
Compact and durable design for high-density electrical connections. High-density 3.5 mm pitch contact centers for miniaturized applications. Integral double locking system ensures secure contact retention. Housing lance design prevents contact damage caused by KOJIRI action.
Right angle orientation suitable for varied PCB mounting scenarios. Made of robust polybutylene terephthalate housing material. Through-hole mounting compatible with automotive and industrial PCBs. Reliable connector for automotive powertrain, safety, convenience, and body systems.
Explore EnvMart’s extensive collection of automotive and industrial connectors to find complementary wire housings, contacts, and PCB headers designed for seamless integration with this MULTILOCK 070 series Connector Housing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this connector housing have a pitch of 3.5 mm, allowing for high-density electrical connections in compact spaces.
This model supports 8 contacts arranged in a 2-row configuration.
The connector housing features a right angle orientation, which enables versatile mounting options on PCBs.
The housing is constructed from polybutylene terephthalate, providing robustness and protection for the contacts.
It is designed for through-hole mounting on printed circuit boards (PCBs).
The connector housing has a length of 39.3 mm and a width of 15.8 mm.
It features an integral double locking system that ensures secure retention of crimped female contacts and prevents partial insertions.
This model is specifically designed for automotive applications, including powertrain control, safety systems, and body wiring harnesses.
Yes, the housing lance design protects contacts from KOJIRI action damage during mating and unmating cycles.
This connector housing is part of the MULTILOCK 070 series by TE Connectivity.
It is designed for use with Multilock Wire-to-Board Connectors, ensuring compatibility within this series.
