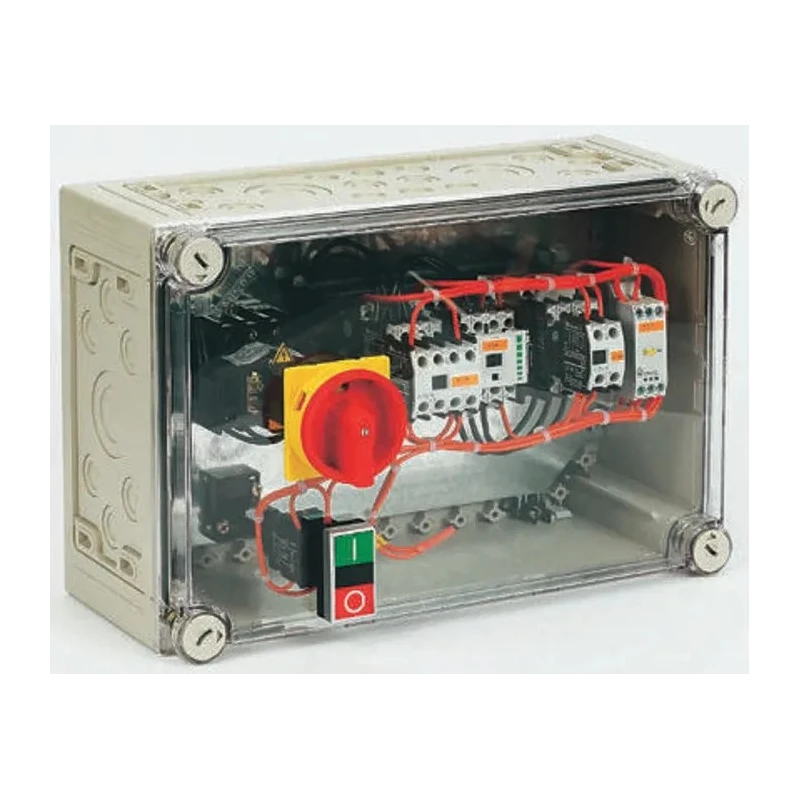

Eaton XSDP Star Delta Starter 3 Phase 400V AC 15 kW IP65 118551 XSDP15/I(400V50HZ,440V60HZ)

Eaton 118551 XSDP15/I(400V50HZ,440V60HZ) Star Delta Starter is a 3 Phase motor starter with a voltage rating of 400V AC and power handling of 15 kW, housed in an IP65 rated polycarbonate enclosure designed for industrial and commercial motor control applications.

This starter is fully insulated and comes complete with an isolator suitable for star delta motor configurations. The enclosure ensures excellent protection against dust and water, making it ideal for harsh industrial environments.

The starter features AC-3 rated triple pole contactors and switch disconnector, along with IP65 rated 'On' and 'Off' pushbuttons, all equipped with IP20 terminals for safe electrical connections. The switch disconnector supports up to three padlocks for locking out the device during maintenance or emergencies.

The enclosure is pre-wired to accept ZB thermal overload relays, which provide sensitive protection against motor single phasing conditions in accordance with IEC 947-4 standards. It uses overloads such as ZB12 and ZB32 (overload relays must be ordered separately).

The compact form factor with overall dimensions of 250 mm length, 375 mm width, and 150 mm depth allows easy surface mounting in control panels or industrial setups. Totally insulated enclosed starter with isolator for star delta motor applications.

Polycarbonate enclosure providing IP65 rating against dust and water. AC-3 rated triple pole contactors and switch disconnector included. IP65 rated On and Off pushbuttons with IP20 terminals ensure operation safety. Disconnector designed for up to three padlocks for safety lockout.

Pre-wired to accept ZB series thermal overload relays with single phasing sensitivity. Overload relay is not supplied and must be ordered separately. Compact size enables easy surface mounting.

This Eaton star delta starter is manufactured in the United Kingdom and adheres to the IEE Regulations for electrical isolation and switching (16th Edition). It is suited for use in industrial, manufacturing, and automation control environments requiring reliable motor starting solutions.

Available under the XSDP series, this device offers high performance motor starting with robust IP65 enclosure protection to withstand demanding environmental conditions. Explore more Motor Starters and automation control products at EnvMart to fulfill your industrial electrical needs.
