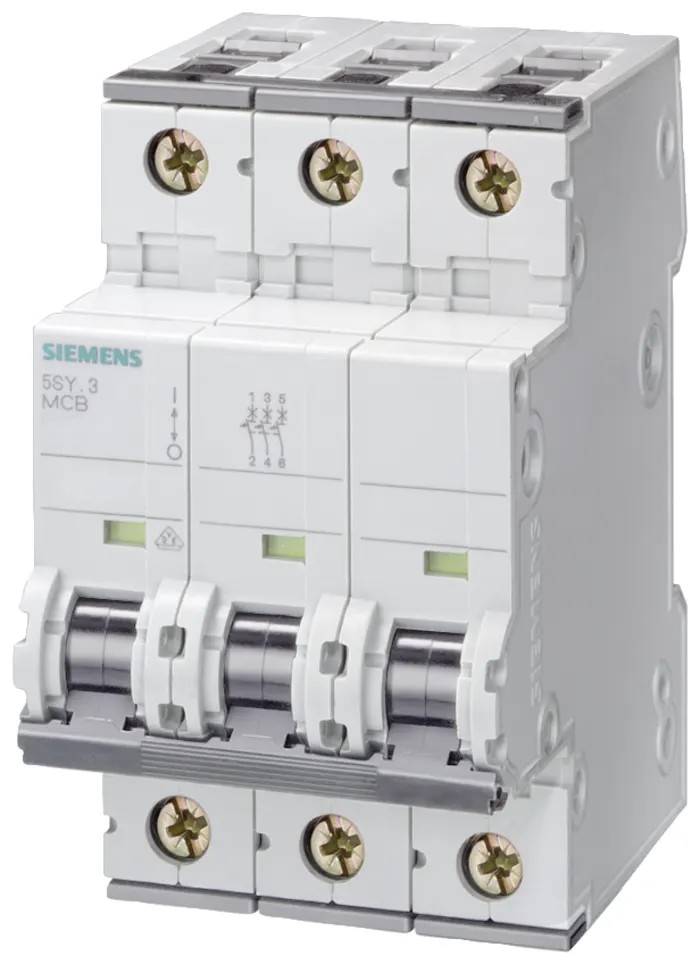

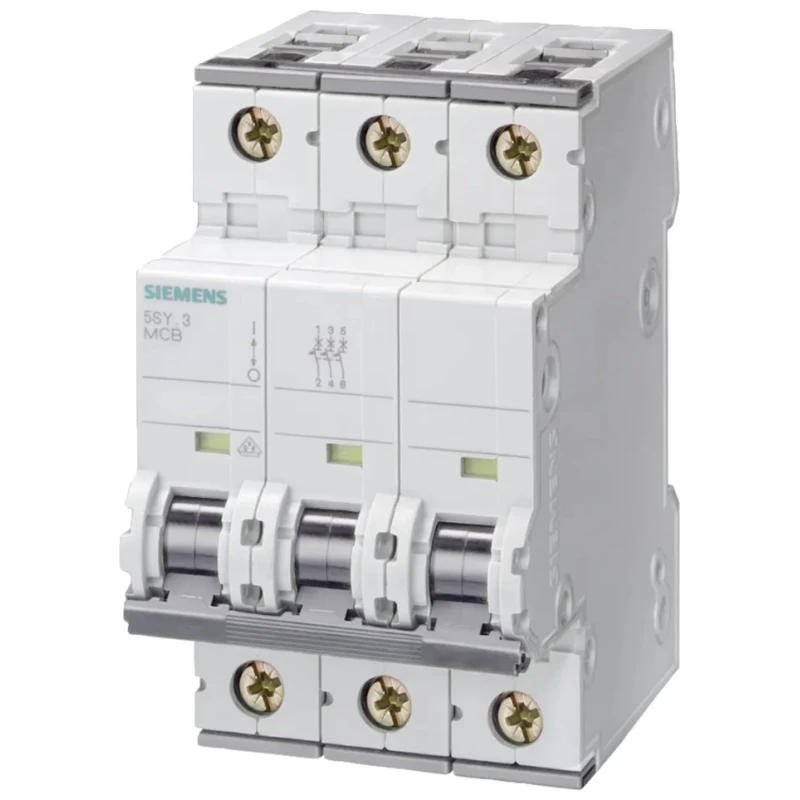

Siemens SENTRON 5SY6 Miniature Circuit Breaker, 3-Pole, 4A, Type C, 400V AC, 60V DC, 6 kA Breaking Capacity 5SY6304-7
Specifications
| Country of Origin | India |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY6304-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Enclosure | IP20 equipment |
| Width | 53mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | 5SY6 |
| Terminal type | Combined Terminal |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Supports 3 poles for comprehensive circuit protection.
- Current rating of 4 amperes with Type C tripping characteristic.
- Rated for 400V AC and 60V DC voltages.
- Breaking capacity of 6 kiloamperes ensures safety under fault conditions.
- DIN rail mounting facilitates easy installation and maintenance.
- Combined terminal type enhances wiring convenience.
- Enclosure rated IP20 providing protection against solid objects.
- Complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
Product Description
Siemens 5SY6304-7 SENTRON 5SY6 Miniature Circuit Breaker is a high-quality 3-pole protective device rated for 4A current with Type C tripping characteristics, suitable for both AC and DC systems rated at 400V AC and 60V DC respectively. This breaker ensures reliable operation and protection of electrical circuits in industrial, residential, and functional construction settings. The device is designed for DIN rail mounting, allowing straightforward installation and quick removal or replacement.
Its breaking capacity of 6 kA offers robust protection against short circuits and overloads, providing safety for circuits and connected equipment. The combined terminal type enables easy and efficient wiring, while the compact form factor with dimensions 90mm (height), 53mm (width), and 76mm (depth) makes it suitable for use in compact electrical panels. The IP20 rated enclosure protects against ingress of solid foreign objects, contributing to device longevity and safe operation.
This miniature circuit breaker complies with key industry standards IEC/EN 60898-1 and IEC/EN 60947-2, as well as UL1077, ensuring international quality and safety benchmarks are met. The Type C tripping curve indicates it trips at 5 to 10 times the rated current, suitable for protection of general applications and circuits with moderate inrush currents such as motors and transformers.
Supports 3 poles for comprehensive circuit protection. 4A current rating with Type C tripping characteristic. Rated voltage: 400V AC and 60V DC. 6 kA breaking capacity for fault safety. DIN rail mount type for easy assembly.
Compact dimensions (90mm x 53mm x 76mm). Combined terminal type for wiring convenience. IP20 enclosure rating ensuring protection from solid objects. Complies with IEC/EN 60898-1, IEC/EN 60947-2 and UL1077 standards. Extended product life under sustainability program.
This Siemens Miniature Circuit Breaker is ideal for industrial, residential, and commercial electrical circuits requiring dependable protection compliant with international standards. Browse more circuit breakers and electrical components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 4A.
It has a breaking capacity of 6 kA, ensuring robust protection against short circuits and overloads.
The breaker is rated for 400V AC and 60V DC.
This unit features 3 poles for comprehensive circuit protection.
It has Type C tripping characteristics, which means it trips at 5 to 10 times the rated current.
The dimensions are 90mm in height, 53mm in width, and 76mm in depth.
It has an IP20 enclosure rating, providing protection against solid foreign objects.
This model is designed for DIN rail mounting, facilitating easy installation and maintenance.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
It features a combined terminal type, enhancing wiring convenience.
The country of origin for this product is India.
It is suitable for industrial, residential, and commercial electrical circuits requiring dependable protection.
