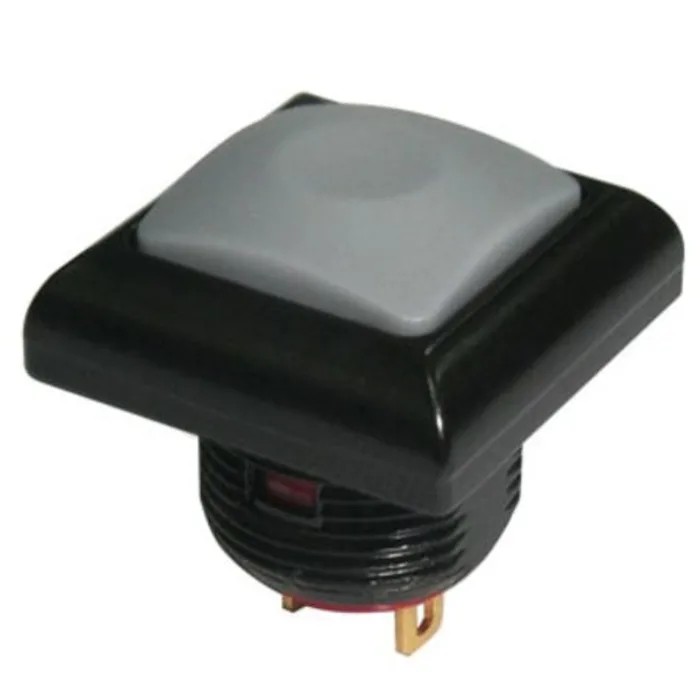

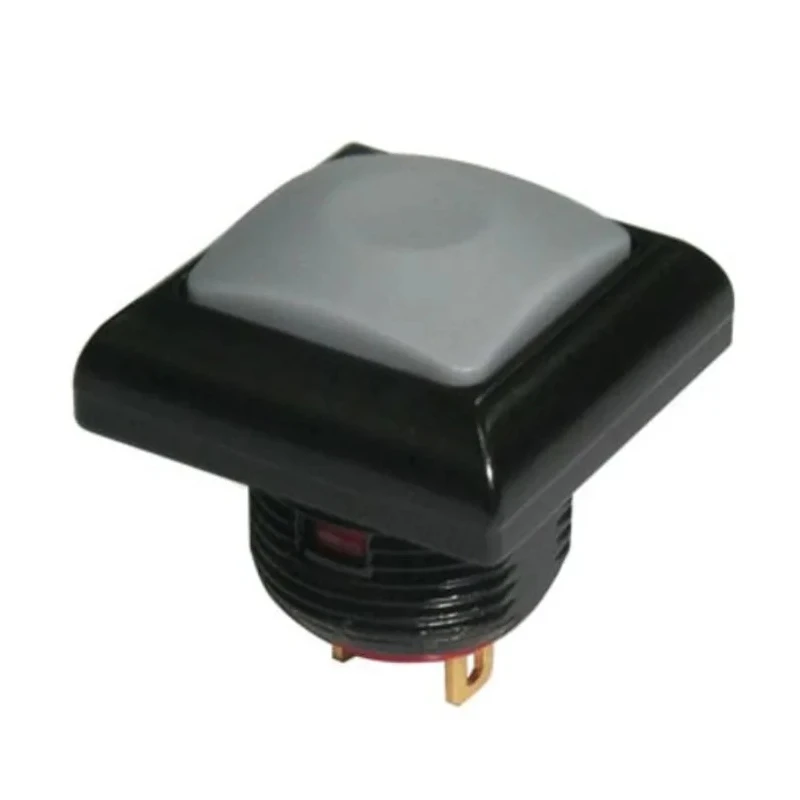

RS PRO Push Button Switch, Momentary, Panel Mount, Blue LED, 13.6 mm Cutout, SPST, IP67, 36V dc 250V ac 209-9097
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 209-9097 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | RS |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 125mA |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates with a momentary (Off-(MOM)) action suitable for control or process activation applications.
- Constructed with a square flat cap made of Polyamide 6/6 providing a sleek and durable design.
- Features an IP67 rating for protection against dust and water ingress.
- Designed for panel mounting with a M12 x 0.75 thread for secure installation.
- Rated for 36 V dc and 250 V ac contact voltage, supporting a switch contact current of 125 mA.
- Includes a blue LED for visual indication and solder lug terminals for reliable connections.
- Operates reliably within a temperature range from -35 °C to 85 °C.
- Offers a mechanical life expectancy of up to 1,000,000 cycles ensuring long-term usage.
Product Description
RS PRO 209-9097 is a high-quality push button switch designed for precise and reliable momentary operation in panel mounting applications. Featuring a blue illuminated LED, this SPST (single-pole single-throw) switch has a 13.6 mm panel cutout size and an IP67 rating, ensuring excellent protection against dust and water ingress.
The actuator is made from durable Polyamide 6/6, offering a flat square cap style for easy operation and a clean appearance. The switch offers robust electrical performance, supporting contact voltages of 36 V dc and 250 V ac with a maximum current rating of 125 mA. Solder lug terminals facilitate secure and stable wiring connections.
Built to withstand harsh environmental conditions, it can operate efficiently within a temperature range of -35 °C to 85 °C. The mechanical life cycle of the switch reaches up to one million operations, enhancing reliability in demanding industrial and laboratory settings.
This switch is ideal for industrial applications including test equipment, telecommunications hardware, networking devices, and handheld appliances, providing dependable on-off control for various electrical circuits.
The product includes a retaining nut and O-ring for firm mounting and sealing. It is a trusted component for control or process activation needs, combining exceptional durability with professional-grade specifications.
The switch operates with a momentary (Off-(MOM)) action suitable for control or process activation applications. Constructed with a square flat cap made of Polyamide 6/6 providing a sleek and durable design. Features an IP67 rating for protection against dust and water ingress.
Designed for panel mounting with a M12 x 0.75 thread for secure installation. Rated for 36 V dc and 250 V ac contact voltage, supporting a switch contact current of 125 mA. Includes a blue LED for visual indication and solder lug terminals for reliable connections.
Operates reliably within a temperature range from -35 °C to 85 °C. Offers a mechanical life expectancy of up to 1,000,000 cycles ensuring long-term usage. Ideal for use in test equipment, telecommunications, networking, and handheld appliances.
Explore EnvMart for more RS PRO Push Button Switches and professional-grade electrical components for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has an IP67 rating, providing protection against dust and water ingress.
It can operate at a maximum temperature of 85°C.
The switch is rated for a contact voltage of 36 V dc and 250 V ac.
It features solder lug terminals for secure and stable wiring connections.
The required panel cutout size for this switch is 13.6 mm.
The mechanical life expectancy is up to 1,000,000 cycles.
It has a single-pole single-throw (SPST) configuration.
The operating temperature range is from -35 °C to 85 °C.
The LED is blue, providing visual indication when activated.
The actuator style is flat, made from durable Polyamide 6/6.
Yes, the IP67 rating makes it suitable for outdoor use, protecting against water and dust.
It is ideal for applications in test equipment, telecommunications hardware, networking devices, and handheld appliances.
