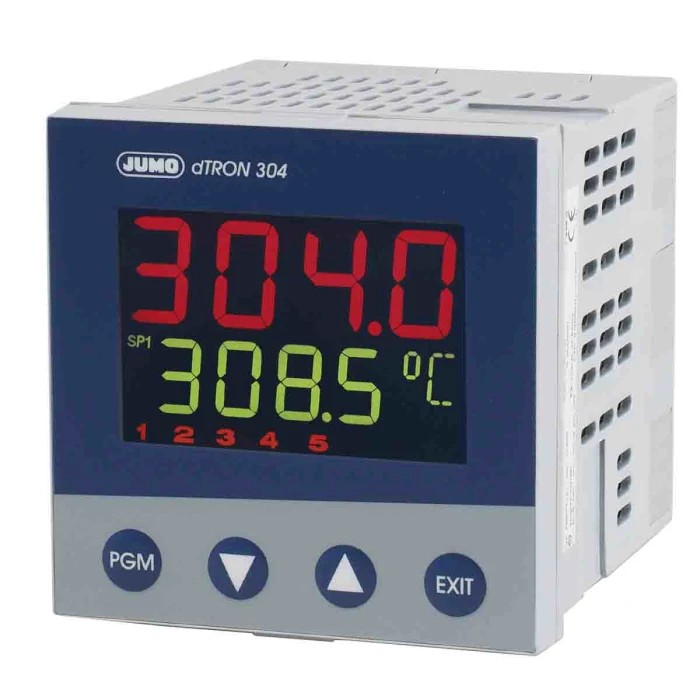

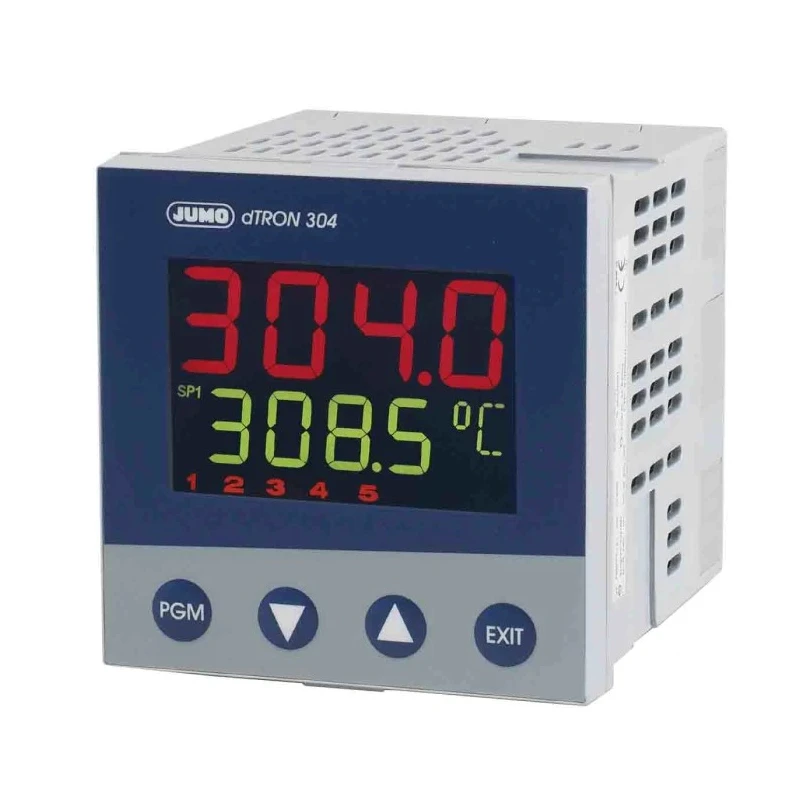

Jumo dTRON Panel PID Temperature Controller 1 Input 4 Output Logic SSR 240V ac On-Off 703044/181-000-23/000

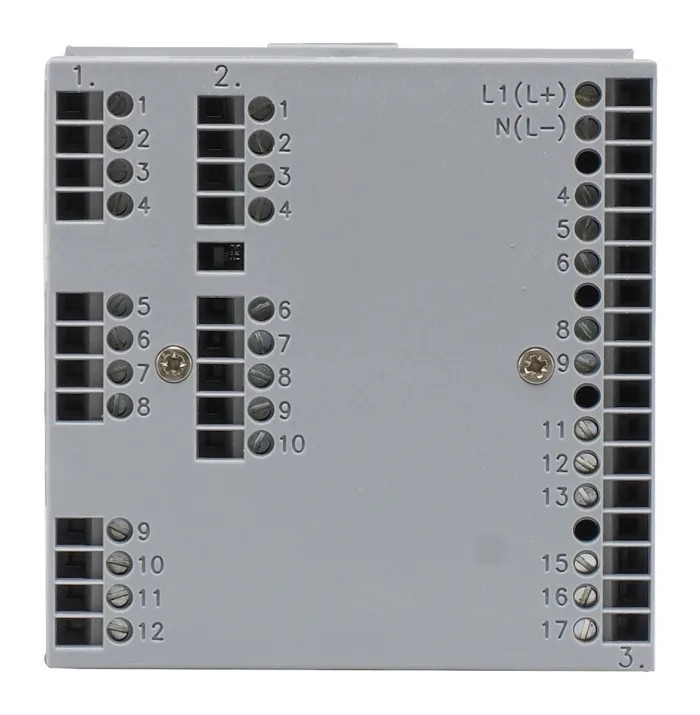

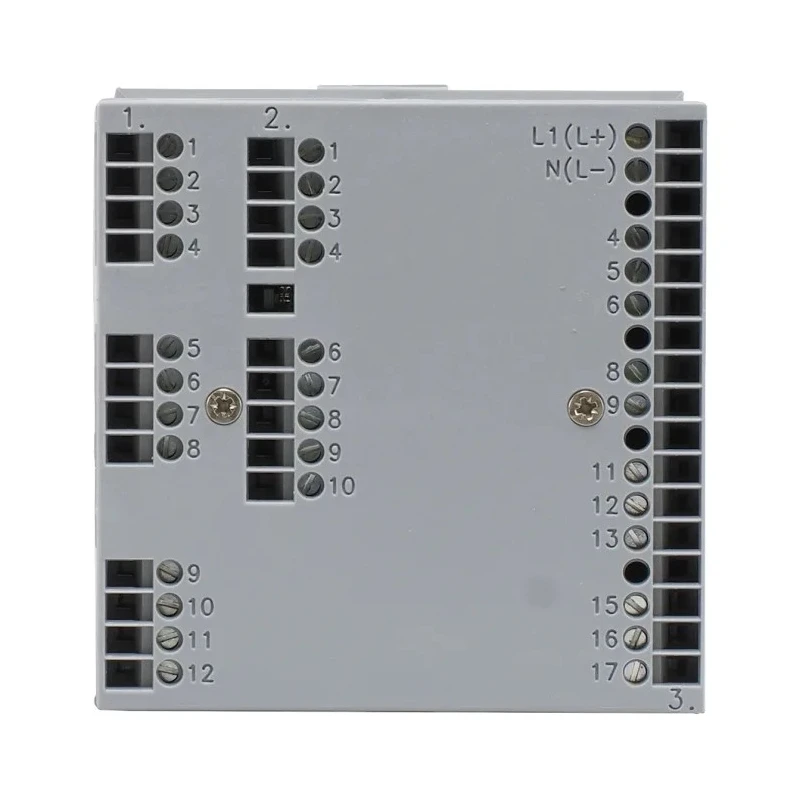

Jumo 703044/181-000-23/000 Panel PID Temperature Controller is engineered for precise process control with a universal input and four outputs supporting logic and solid state relay (SSR) 240V AC On-Off operation. This robust controller is designed for panel mounting in industrial environments, measuring 96 by 96mm (1/4 DIN) with a 90mm panel depth and screw terminal connections for secure installation.

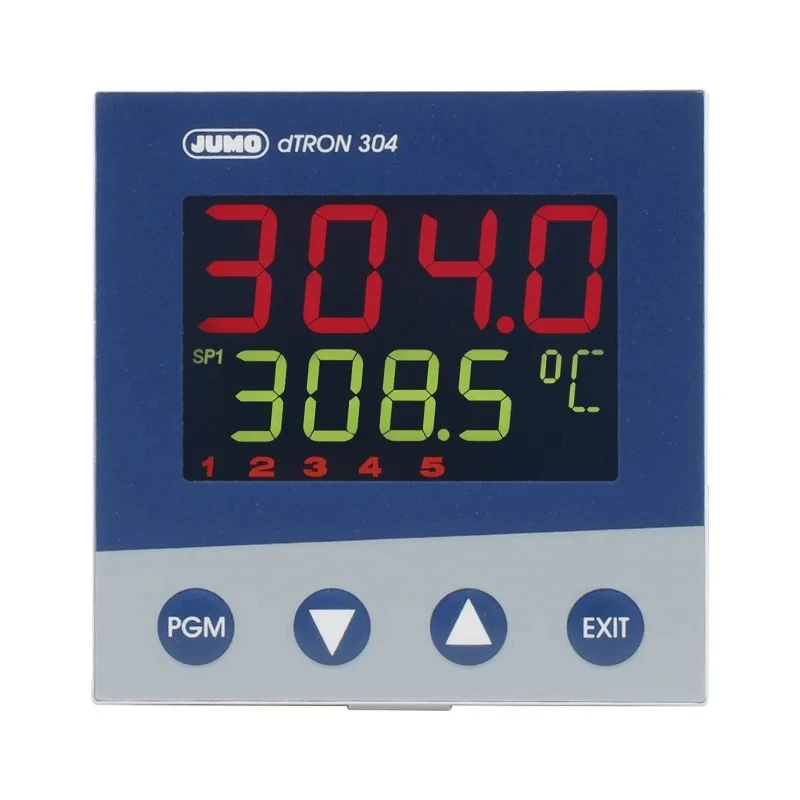

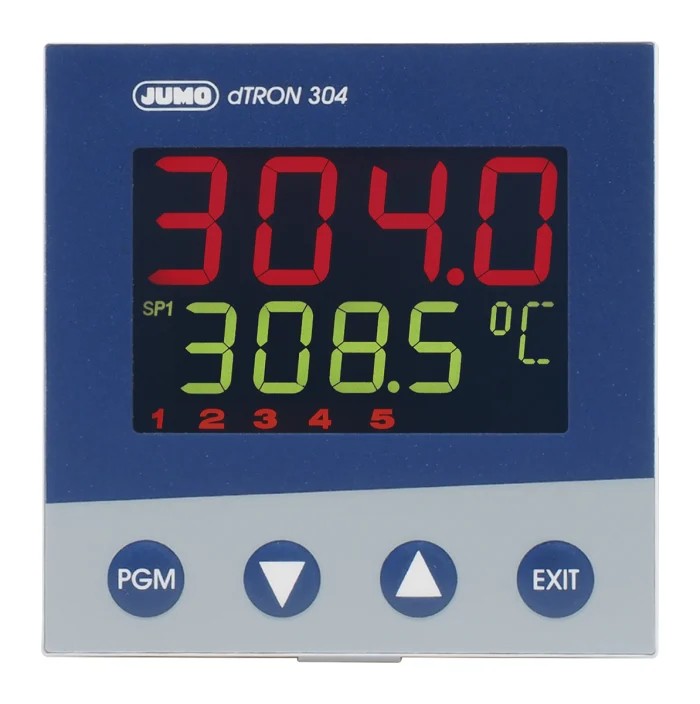

Operating within a temperature range of 0°C to 55°C, the device is suitable for various process control applications including temperature, pressure, and other process variables. It features bright LED display that allows clear monitoring of operational parameters.

The controller includes advanced communication interfaces such as PROFIBUS-DP, RS422, and RS485, facilitating integration with digital control systems. It offers up to 4 programmable set points and 2 parameter sets to enable flexible and precise tuning of process controls.

Its freely programmable control structures support 2-state, 3-state, modulating, and continuous-action control modes, as well as timer functions and limit comparators for advanced process management. The device supports self-optimization processes and quick configuration through a user-friendly setup program. Additional features include programmable differential, humidity, or ratio control, and up to 8 binary outputs.

Certified to multiple international standards including EN 60730, CAN/CSA-C22.2 No. 61010-1, DIN EN 14597, EN 14597, EN 60584, EN 60751, EN 61326-1, GL-Approval, IEC 61554, and UL 61010-1, this controller meets stringent safety and performance criteria. It is IP20 and IP65 rated, ensuring protection in dusty and wet environments.

The package includes the controller, sealing, fastening elements, and detailed operating instructions for installation. Manufactured in Germany, this product offers high reliability and precision for industries like manufacturing, HVAC, laboratory automation, and water treatment.

Operates safely from 0°C to 55°C with universal input support. Features clear LED display and programmable control schemes. Equipped with advanced digital communications: PROFIBUS-DP, RS422, RS485. Supports multiple control types including on-off and modulating control.

Complies with numerous international safety and quality standards. IP20 and IP65 protection ratings ensure durable operation in harsh environments. Panel mount form factor with a compact 96x96mm size. Includes programming options for timers, limit comparators, and set points.

Manufactured in Germany, emphasizing engineering quality and longevity. Package contains all necessary mounting and operating components. Explore the full range of Temperature Controllers available to suit diverse industrial process control applications at EnvMart.
