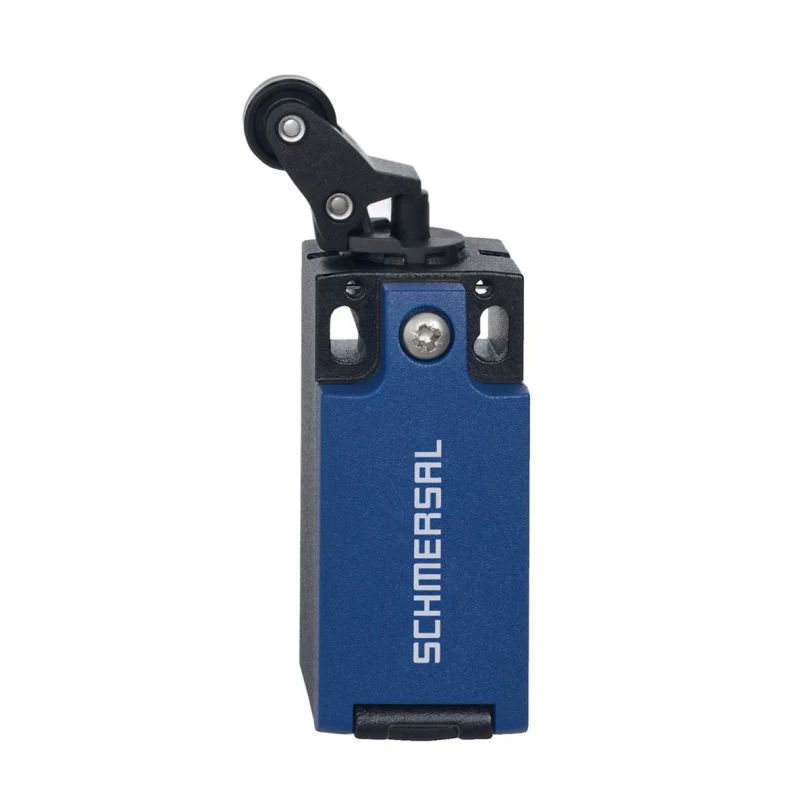

Schmersal PS215-Z12-K230 Series Angle Roller Lever K230 Limit Switch, 1 NO/2 NC Contacts, IP66, IP67, Die Cast 103014965

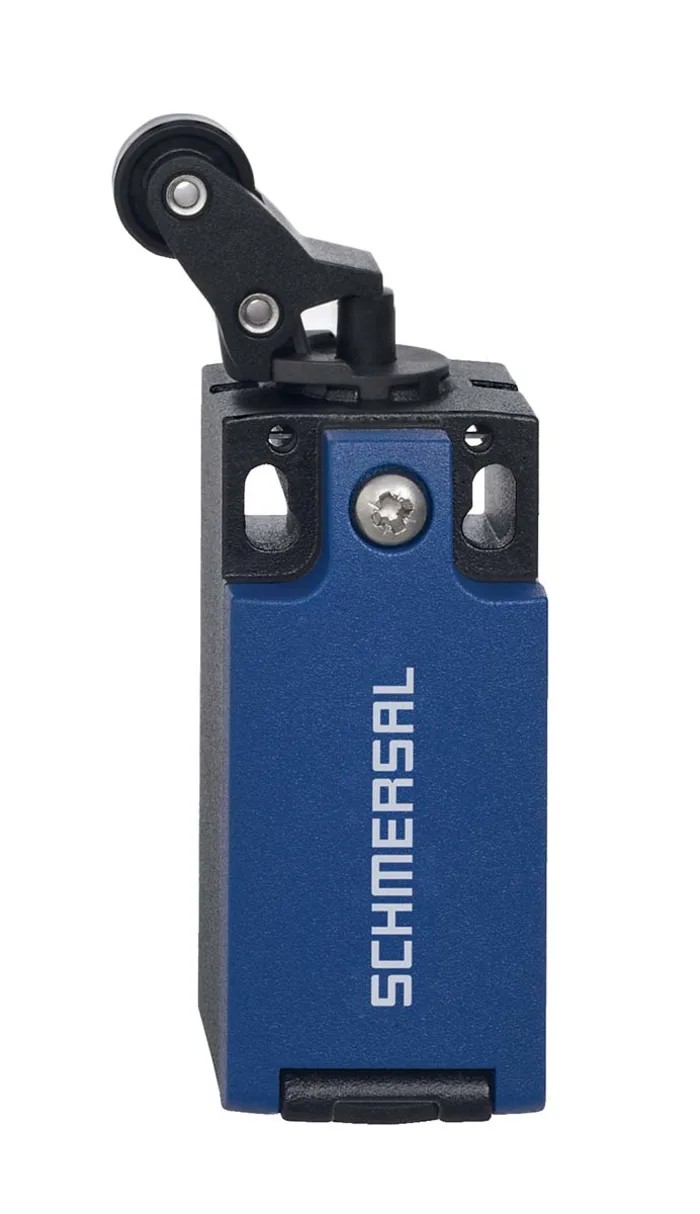

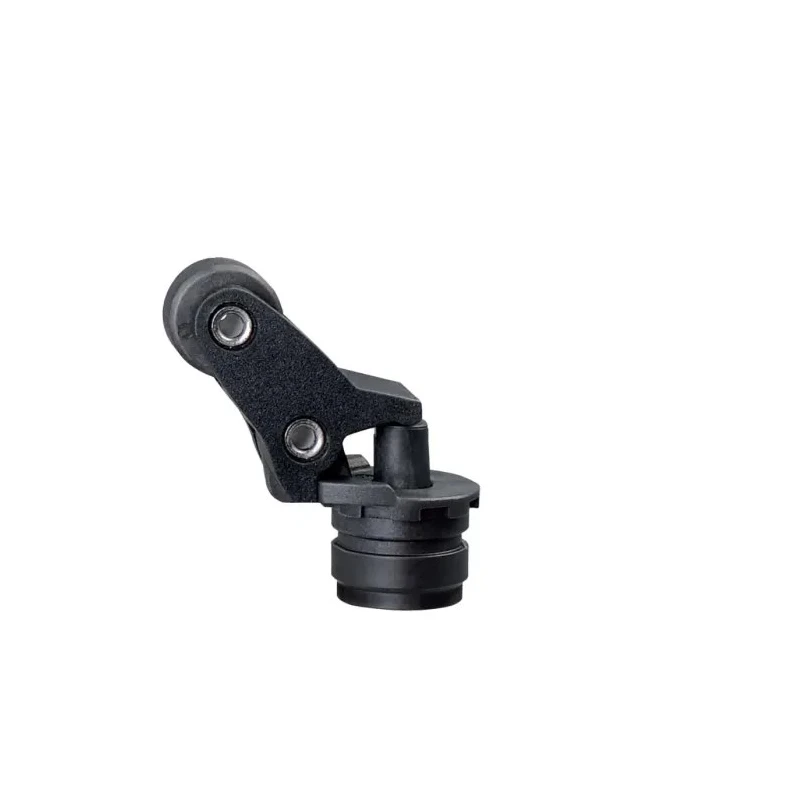

Schmersal 103014965 PS215-Z12-K230 Series Angle Roller Lever K230 Limit Switch is a robust industrial-grade limit switch designed with an angle roller lever actuator type to provide precise position control in automation systems. Featuring a die cast zinc metal housing, this limit switch offers high durability, corrosion resistance, and excellent mechanical strength.

The device has a high ingress protection rating of IP66 and IP67, making it ideal for use in harsh and wet environments, including industrial, manufacturing, and automation systems. It operates reliably over a wide temperature range of -30°C to 80°C, ensuring consistent performance under various climatic conditions.

This limit switch is equipped with high-quality silver electrical contacts configured as 1 Normally Open (NO) and 2 Normally Closed (NC) contacts, capable of switching currents up to 3A at 24V DC and 240V AC voltages. The switching principle is based on a snap switch element, achieving a switching frequency up to 5,000 operations per hour with a thermal test current of 5A.

The compact device dimensions (32.5mm length by 31mm width) and screw terminal connections facilitate easy installation and integration into control panels or machinery. With a mechanical life rated at 10,000,000 operations and a B10d rating of 20,000,000 for normally closed contacts, this limit switch ensures longevity and reliability in continuous industrial use.

Certified to IEC 60947-5-1 and ISO 13849-1 standards, the Schmersal PS215-Z12-K230 Series provides compliance with international safety and performance requirements. Its operating force of 40N delivers precise actuation for switching applications, beneficial for manufacturing, water treatment, HVAC systems, and other industrial automation scenarios.

Equipped with 1 Normally Open (NO) and 2 Normally Closed (NC) silver contacts for reliable switching. Robust die cast zinc metal housing ensures durability and corrosion resistance. Rated for IP66 and IP67 protection classes, suitable for harsh environments.

Operates at switching voltages of 24V DC and 240V AC with a 3A switching current. Designed to withstand a mechanical life of 10 million operations for long-term reliability. Compact dimensions simplify installation in limited space applications.

Wide operating temperature range from -30°C to 80°C for versatile use. Screw terminal type offers secure and easy electrical connections. Compliant with IEC 60947-5-1 and ISO 13849-1 safety standards. Operating force of 40N assures precise and dependable actuation.

This limit switch is made in Germany, guaranteeing high manufacturing quality and technical support. It is suitable for use in industrial automation, manufacturing machinery, water treatment plants, HVAC control systems, and other commercial applications.
