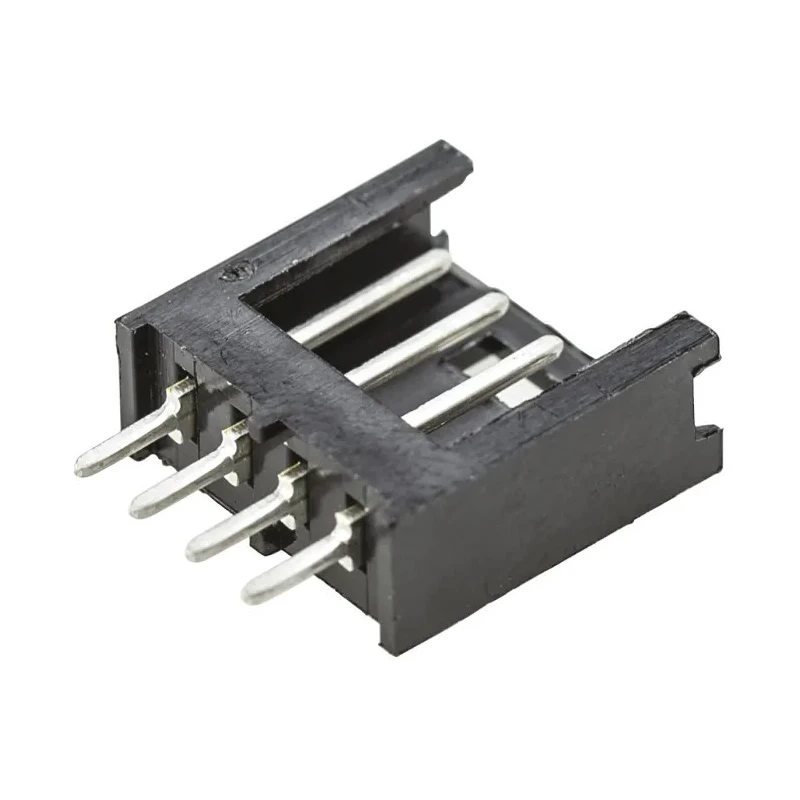

TE Connectivity AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header 4 Contacts 2.54mm Pitch 280371-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 280371-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a straight orientation with a single row of contacts.
- Shrouded design provides pin protection and prevents mismating.
- Constructed with thermoplastic housing and phosphor bronze contacts plated with tin.
- Suitable for board-to-board and wire-to-board connector systems.
- Operates reliably between -65°C and 105°C.
- Tail pin length of 3.5 mm ensures secure solder termination.
- Rated for up to 750 volts, ideal for industrial and electronic applications.
- Polarized housing and detent positive locking mechanism enhance secure connections.
Product Description
TE Connectivity 280371-1 AMPMODU MOD II Series shrouded PCB header offers a reliable straight through-hole connector solution with 4 male contacts spaced at a 2.54 mm pitch.
This PCB header features a robust thermoplastic housing with shrouding on three sides to protect the pins and prevent incorrect mating with other connectors. The contact material is phosphor bronze with a tin plating, ensuring good conductivity and corrosion resistance suitable for electronic component assemblies.
Its single-row straight orientation allows for versatile applications in various industries including automotive controls, industrial machinery, telecommunications, medical instruments, and computing systems.
The connector system supports both board-to-board and wire-to-board interfaces. It is designed for solder termination with a tail pin length of 3.5 mm to ensure a secure connection to printed circuit boards. It can operate within a temperature range of -65°C to 105°C and is rated for 750 volts, making it suitable for demanding electronic and power applications.
The housing is polarized to avoid mismating and includes a detent positive locking mechanism for secure, vibration-resistant connections. This combination of features makes it a suitable choice for high-reliability industrial, commercial, and electronics manufacturing contexts.
Features a straight orientation with a single row of contacts. Shrouded design provides pin protection and prevents mismating. Constructed with thermoplastic housing and phosphor bronze contacts plated with tin. Suitable for board-to-board and wire-to-board connector systems.
Operates reliably between -65°C and 105°C. Tail pin length of 3.5 mm ensures secure solder termination. Rated for up to 750 volts, ideal for industrial and electronic applications. Polarized housing and detent positive locking mechanism enhance secure connections.
This TE Connectivity AMPMODU MOD II Series PCB header series is widely used in electronic manufacturing processes due to its reliable mechanical and electrical properties. It supports easy integration into automated assembly lines and offers consistent performance for PCB interconnections.
Explore more PCB connectors and components from TE Connectivity to meet various industrial and electronics application requirements at EnvMart.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for up to 750 volts, making it suitable for industrial and electronic applications.
The contacts are spaced at a pitch of 2.54 mm.
The housing is made of thermoplastic, while the contacts are constructed from phosphor bronze with tin plating.
It operates reliably between -65°C and 105°C.
This model features 4 male contacts.
It uses solder termination with a tail pin length of 3.5 mm.
Yes, it supports both board-to-board and wire-to-board connector systems.
It features a straight orientation with a single row of contacts.
Yes, it has a shrouded design that provides pin protection and prevents mismating.
It includes a detent positive locking mechanism for secure connections.
The country of origin for this PCB header is India.
This connector is part of the AMPMODU MOD II series.
