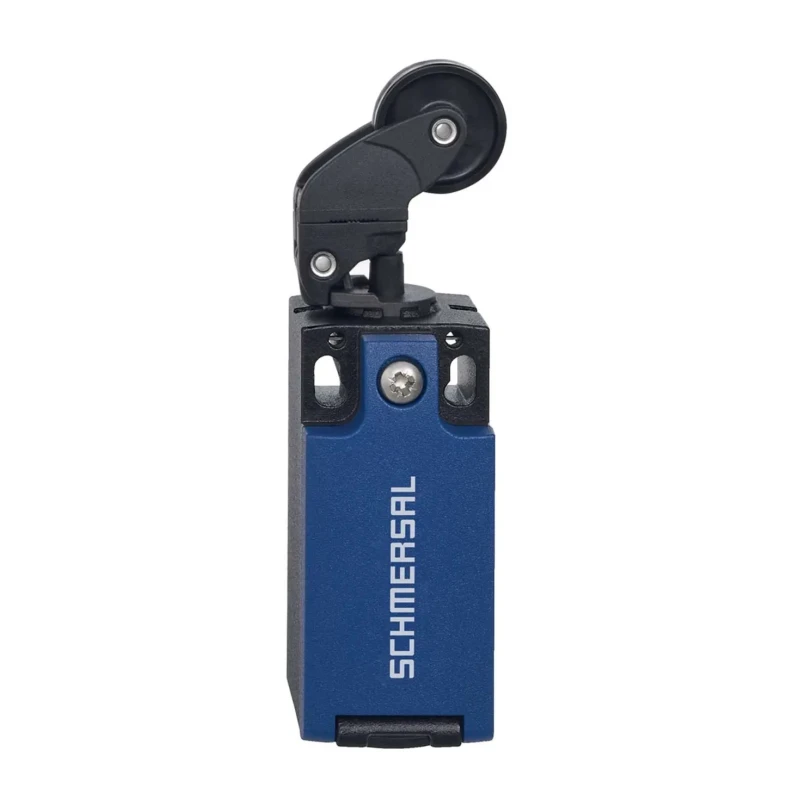

Schmersal PS215-T12-K240 Series Angle Roller Lever K240 Limit Switch 1 NO/2 NC, IP67, IP66, Metal Die Cast Zinc 103014992
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 32.5mm |
| IP Rating | IP67, IP66 |
| Width | 31mm |
| Housing Material | Metal, Die Cast Zinc |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS215-T12-K240 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Angle Roller Lever K240 |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Operating Force | 40N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 1 x M20 x 1.5 |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- The housing is constructed from durable die cast zinc metal for long-lasting protection.
- It supports switching currents up to 3A and voltages of 24V DC and 240V AC.
- This limit switch operates reliably between -30°C and 80°C operating temperatures.
- Equipped with screw terminal connections for secure wiring.
- Has a mechanical life of 10 million operations ensuring extensive durability.
- Protection class rated IP66 and IP67 for resistance against dust and water ingress.
- Includes conduit entry sized at 1 x M20 x 1.5 for easy installation.
- Designed and manufactured in Germany, adhering to ISO 13849-1 and IEC 60947-5-1 standards.
Product Description
Schmersal 103014992 PS215-T12-K240 Series Angle Roller Lever K240 Limit Switch is engineered for precise control in industrial automation and safety applications. The limit switch features a robust die cast zinc metal housing that provides excellent mechanical protection and environmental resistance with IP66 and IP67 ratings, suitable for harsh industrial environments.

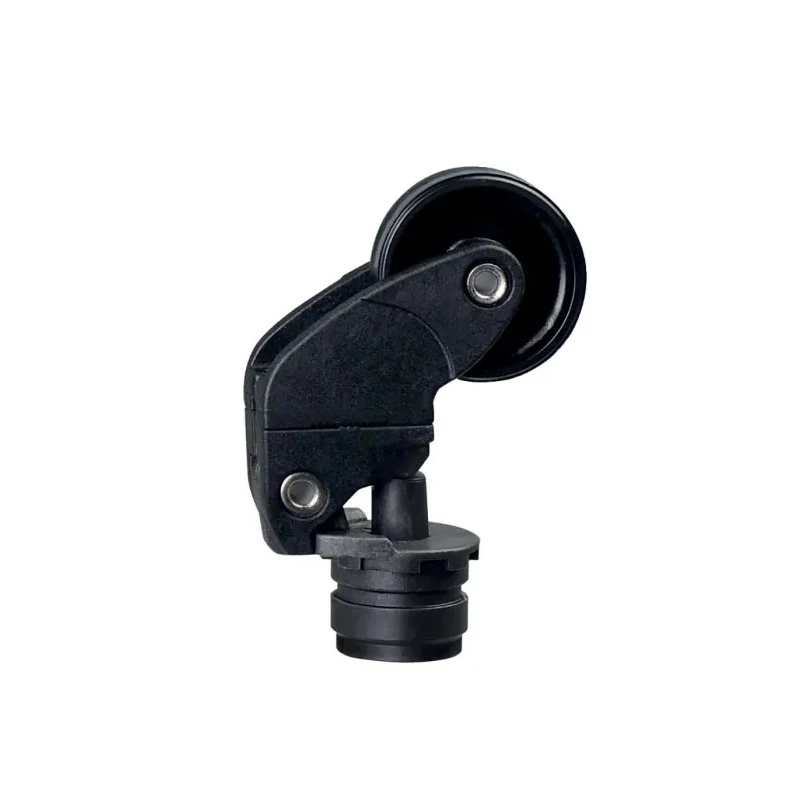

This model includes a reliable angle roller lever actuator which operates on a creep switch element principle. It has a contact configuration consisting of 1 normally open (NO) and 2 normally closed (NC) contacts made with silver for optimal conductivity and durability.
The switch supports switching currents up to 3A and operates on 24V DC and 240V AC voltages, allowing compatibility with a wide range of electrical systems. Its operating temperature range from -30°C to 80°C makes it adaptable for diverse industrial climates.
The terminal type is screw-based ensuring secure and stable electrical connections. The device is designed to withstand 10 million mechanical operations, highlighting its long service life and reliability in continuous industrial use.
Installation is facilitated via a 1 x M20 x 1.5 conduit entry size. The limit switch complies with international standards ISO 13849-1 and IEC 60947-5-1, reinforcing its quality and safety credentials.
Manufactured in Germany, this limit switch is suitable for applications in manufacturing plants, automation systems, material handling, and process control environments where precise limit control and operational safety are paramount.
The housing is made from durable die cast zinc for protection and longevity. Contact configuration includes 1 NO and 2 NC contacts for versatile switching functions. IP66 and IP67 ratings assure superior ingress protection against dust and water.
Mechanical life rated at 10 million operations supports extended industrial use. Operates under temperature ranges from -30°C to 80°C for environmental resilience. Conduit entry of 1 x M20 x 1.5 facilitates installation in standard industrial setups.
Complies with ISO 13849-1 and IEC 60947-5-1 international safety standards. Manufactured in Germany ensuring high build and quality standards. Explore more Limit Switches and control components at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This limit switch supports a maximum switching current of 3A.
It operates on 24V DC and 240V AC voltages.
The operating temperature range for this limit switch is from -30°C to 80°C.
The contact configuration consists of 1 normally open (NO) and 2 normally closed (NC) contacts.
The housing is constructed from die cast zinc metal, providing durability and protection.
It has a mechanical life rated for 10 million operations.
This limit switch has IP66 and IP67 ratings for dust and water ingress protection.
It features screw terminal connections for secure wiring.
It uses an angle roller lever K240 actuator type.
It complies with ISO 13849-1 and IEC 60947-5-1 standards.
The conduit entry size is 1 x M20 x 1.5, facilitating easy installation.
