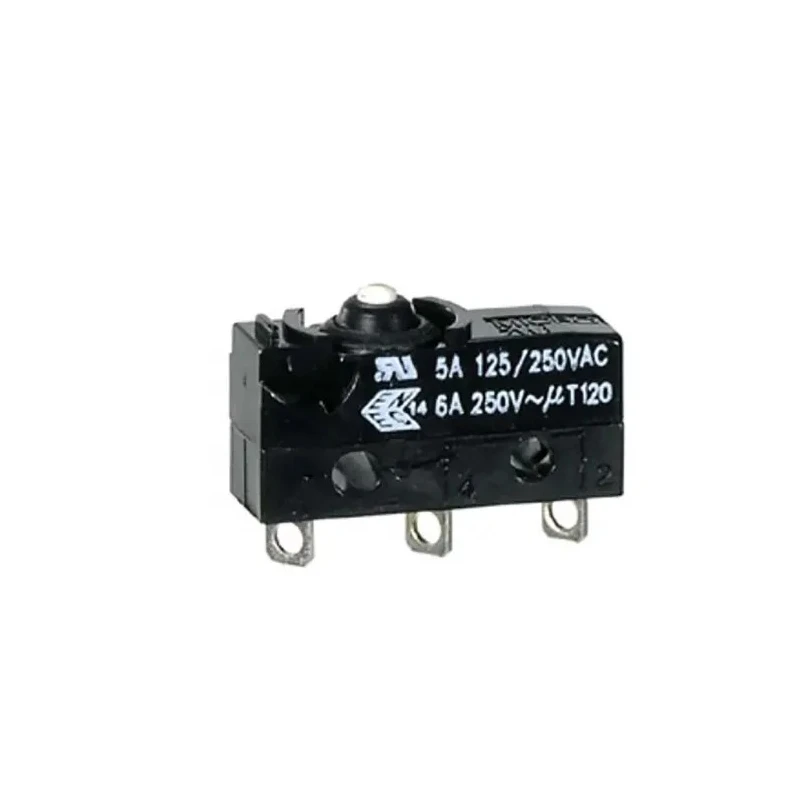

Honeywell Pin Plunger Micro Switch, Solder Terminal, 6A, 250 V AC, SPNC, IP00 ZW50F15AD4
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW50F15AD4 |
| Depth | 9.25mm |
| IP Rating | IP00 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate Polyester |
| Series | ZW |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPNC |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Hazardous Area Certification | UL, RoHS, ENEC, cUL, CQC |
| Standards/Approvals | UL, RoHS, ENEC, cUL, CQC |
| Switch Contact Current | 6A |
| Operating Force | 203g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- The subminiature switch uses a pin plunger actuator for reliable tactile sensing.
- Solder terminals enable easy wire or PCB connections with a consistent 203 g operating force.
- Constructed with polybutylene terephthalate polyester housing material offering electrical insulation.
- Supports operating temperatures from -40°C to 120°C for harsh industrial environments.
- Configured as a single-pole normally closed (SPNC) contact arrangement simplifying circuit wiring.
- Mechanical life rating of 1 million cycles ensures long-term reliability.
- Meets UL, RoHS, ENEC, cUL, and CQC certifications.
- Compact dimensions of 19.8 mm length, 6.4 mm width, and 9.25 mm depth suit tight spaces.
Product Description
Honeywell ZW50F15AD4 pin plunger micro switch is a precision mechanical switching device designed for industrial, laboratory, control panel, and consumer appliance applications requiring reliable tactile actuation and compact form factor.
This subminiature switch utilizes a pin plunger actuator and solder terminal connection to enable straightforward installation with consistent operating force of 203 grams. Its compact dimensions (19.8 mm length, 6.4 mm width, 9.25 mm depth) allow integration into tight spaces.
The housing is made from polybutylene terephthalate polyester, providing excellent electrical insulation and resistance to common industrial stressors. It supports a contact current of 6 amperes at 250 V AC, handling moderate power switching requirements.
The device has a single-pole normally closed (SPNC) contact configuration that simplifies wiring in control circuits. It is rated for operation from minus 40 to 120 degrees Celsius, suitable for harsh environmental conditions.
Mechanical durability is ensured with a rated mechanical life of one million cycles, guaranteeing reliable long-term operation in demanding applications. This micro switch carries approvals including UL, RoHS, ENEC, cUL, and CQC, making it suitable for regulated installations.
The subminiature form enables compact, space-saving designs. Pin plunger actuator provides precise tactile feedback and control. Solder terminals support low-resistance wiring connections. Robust housing material enhances durability and electrical safety.
Operating temperature range meets industrial environment demands. High mechanical life extends maintenance intervals. Certifications assure compliance with international standards. Compact size facilitates integration into electronic assemblies.
Applications include industrial automation, limit detection, and consumer electronics. Explore more Honeywell Micro Switch solutions in the Electronics & Electricals category at EnvMart for precision control and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an operating temperature range from -40°C to 120°C, making it suitable for harsh industrial environments.
This model has a single-pole normally closed (SPNC) contact configuration, which simplifies circuit wiring.
The switch can handle a contact current of 6 amperes at a voltage of 250 V AC.
It has compact dimensions of 19.8 mm in length, 6.4 mm in width, and 9.25 mm in depth.
It utilizes a pin plunger actuator for reliable tactile sensing and control.
The mechanical life rating is 1 million cycles, ensuring long-term reliability in applications.
The housing is made from polybutylene terephthalate polyester, which provides excellent electrical insulation.
It features solder terminals that enable easy wire or PCB connections.
It meets several certifications including UL, RoHS, ENEC, cUL, and CQC, making it suitable for regulated installations.
This model is suitable for industrial automation, limit detection, and consumer electronics applications.
The operating force is 203 grams, providing consistent tactile feedback during actuation.
The country of origin for this micro switch is Taiwan.
