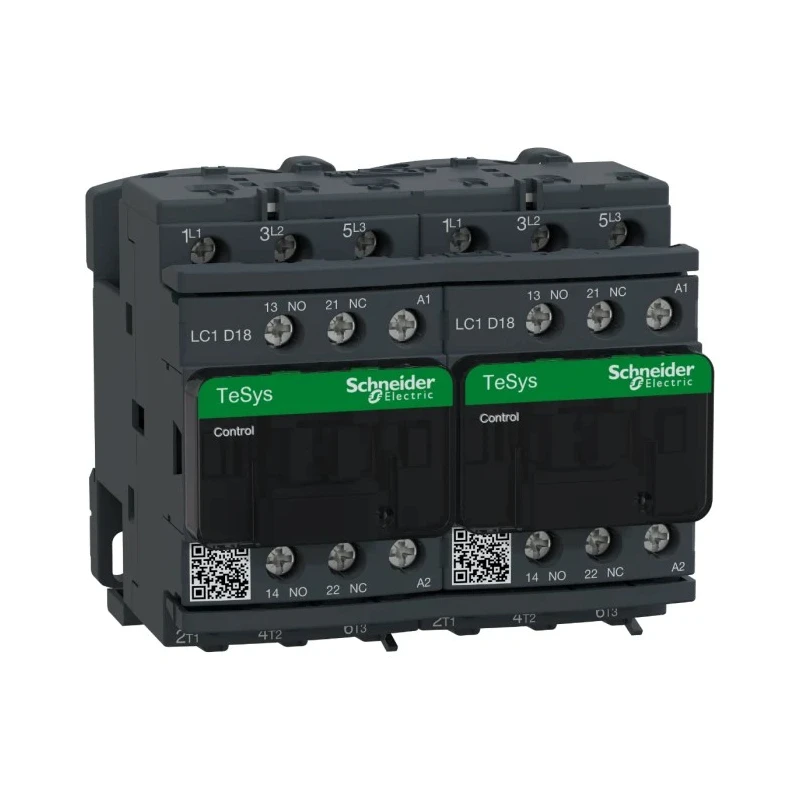

Schneider Electric LC2D Contactor 110V AC Coil, 3-Pole, 18 A, 7.5 kW, 3 NO, 690V AC LC2D18FE7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 82.5mm |
| Model | LC2D18FE7 |
| Depth | 86mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, EAC, IEC, RoHS, UL, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- 3-pole configuration suitable for reversing motor control.
- Rated for 18 A operational current and 7.5 kW power rating at 690V AC.
- Includes 3 normally open main contacts and 2 auxiliary contacts.
- DIN rail mountable with IP20 finger-safe screw terminals.
- Operates within temperature range of -5°C to 60°C.
- Complies with international standards including CSA, IEC, UL, RoHS, and CCC.
- Pre-installed interlock for safe reversing operation.
Product Description
Schneider Electric LC2D18FE7 contactor is a high-quality, durable device designed for robust motor control and resistive load management in industrial and commercial electrical systems. Featuring a 110V AC coil, this 3-pole contactor supports 18 A operational current and a power rating of 7.5 kW at 690V AC, ensuring efficient performance in demanding applications.
The LC2D series provides a preassembled reversing power busbar and is engineered to facilitate quick and easy installation via DIN rail mounting or panel screws. Screw connections feature IP20 finger-safe terminals with both North American and international markings, enhancing safety and compatibility in global installations.
This model includes 3 normally open main contacts and 2 auxiliary contacts configured as 2 NO/2 NC, along with a pre-installed mechanical and electrical interlock that guarantees only one contactor can be closed at a time, preventing electrical conflicts during reversing operations.
The device functions reliably within an operating temperature range from -5°C to 60°C and complies with multiple international standards such as CSA, IEC, UL, RoHS, and CCC, ensuring global acceptance and adherence to safety norms.
3-pole reversing contactor for motor control and resistive load applications. 110V AC coil voltage for flexible control circuit integration. 18 A operational current with 7.5 kW power handling capacity. IP20 rated screw terminals providing finger-safe connections.
Pre-installed interlock enhancing operational safety. Compact and robust design suitable for industrial environments. Designed for disassembly to support sustainability. Conforms to multiple international safety and performance standards.
This contactor is ideal for use in industrial automation, HVAC systems, manufacturing plants, and other commercial electrical control applications where reliable motor reversing and efficient power switching are essential. Schneider Electric’s dedication to sustainability is reflected in the product’s design for disassembly, enabling easier recycling and reuse.
Explore more Schneider Electric automation and control components at EnvMart for comprehensive solutions tailored to your industrial needs.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 7.5 kW at 690V AC, suitable for motor control and resistive load applications.
The LC2D18FE7 is rated for an operational current of 18 A, making it effective for various electrical applications.
This contactor measures 82.5 mm in length, 90 mm in width, and 86 mm in depth.
It is designed for DIN rail mounting, allowing for easy installation in various setups.
The coil voltage for this model is 110V AC, which is suitable for flexible control circuit integration.
It operates reliably within a temperature range of -5°C to 60°C, accommodating various environmental conditions.
This contactor features a 3-pole configuration, suitable for reversing motor control.
It includes 3 normally open main contacts and 2 auxiliary contacts configured as 2 NO/2 NC.
This model complies with several international standards, including CSA, IEC, UL, RoHS, and CCC, ensuring global acceptance.
It is designed for motor control and resistive load applications, making it versatile for various industrial uses.
Yes, it comes with a pre-installed interlock that ensures only one contactor can be closed at a time, enhancing operational safety during reversing operations.
It features IP20 finger-safe screw terminals, providing safe and secure connections in electrical installations.
