MEC IP67 Black Tactile Switch Button 5.9 mm SPST 50mA 24V dc PCB IP67

The MEC IP67 Black Tactile Switch Button, model IP67, is a high-quality surface mount tactile switch designed for demanding industrial and electronic applications. It offers a compact form factor with a base size of 10.1 mm by 10.1 mm and an actuator length of 5.9 mm. This SPST (Single Pole Single Throw) momentary switch is capable of handling a contact current of 50mA at 24V dc, making it suitable for low power signal switching tasks on printed circuit boards.

Built to IP67 standards, the switch is sealed to be dust tight and resistant to temporary immersion in water, enabling reliable operation in harsh, high-moisture environments. It operates reliably within a broad temperature range from -40°C to 160°C, making it ideal for use in industrial automation, electrical controls, instrumentation, and rugged outdoor applications.

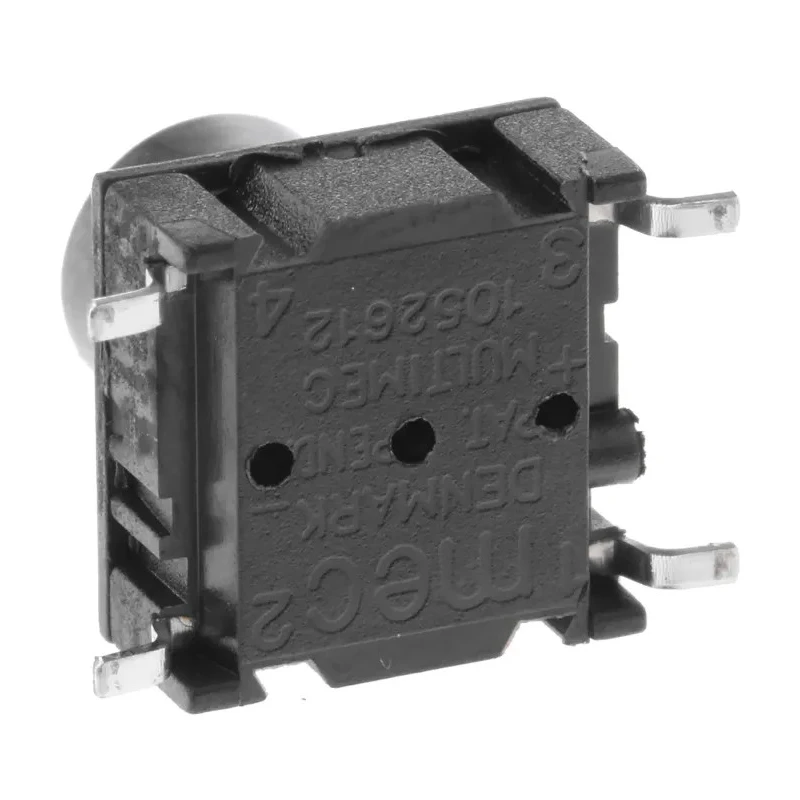

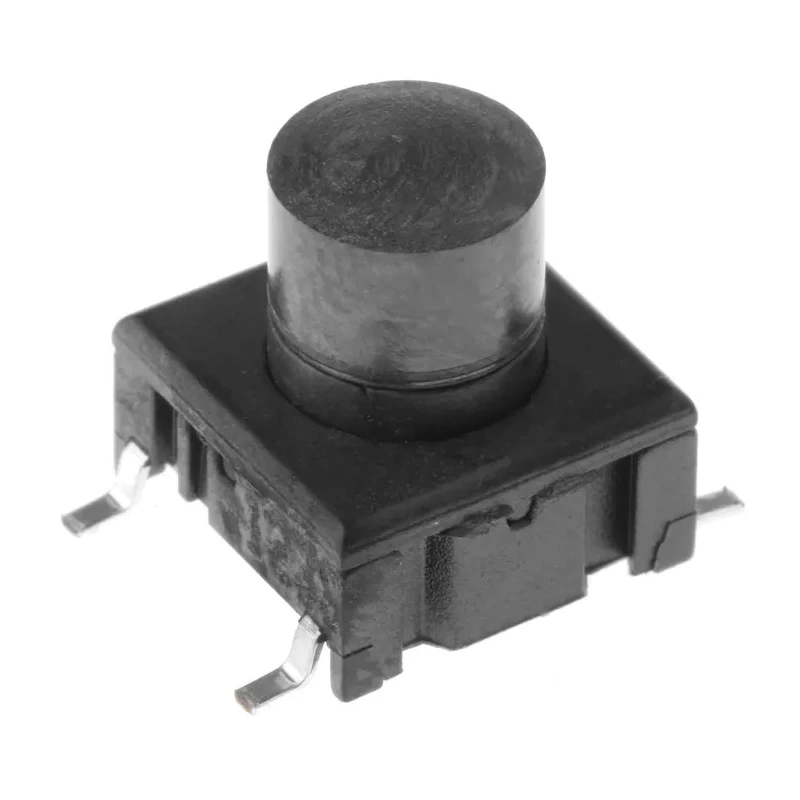

The actuator is a black button with a straight orientation, designed for easy tactile feedback. The mounting is via surface mount technology (SMT) on PCBs, permitting easy assembly in modern electronic manufacturing.

With an exceptional mechanical life rated at 10 million cycles, this tactile switch ensures sustained performance and durability over prolonged use. The product complies with RoHS directives, confirming it is free from hazardous substances and environmentally safe.

This tactile switch has an actuator length of 5.9 mm and a compact 10.1 mm by 10.1 mm base size. It supports SPST contact configuration with a switch contact current rating of 50mA at 24V dc. The switch features an IP67 rating, ensuring dust-tight and temporary water immersion protection.

Operating temperature range extends from -40°C to a maximum of 160°C, suitable for harsh environments. The switch actuator is black, straight button style with surface mount PCB terminals. Rated for a mechanical life of 10 million cycles providing long-lasting durability.

This switch complies with RoHS standards, ensuring hazardous substance compliance.

This MEC Tactile Switch is excellent for use across various sectors including electronics manufacturing, industrial automation, control systems, laboratory equipment, and telecommunications. Its rugged sealing and long mechanical life ensure reliable switching performance even in challenging conditions.
