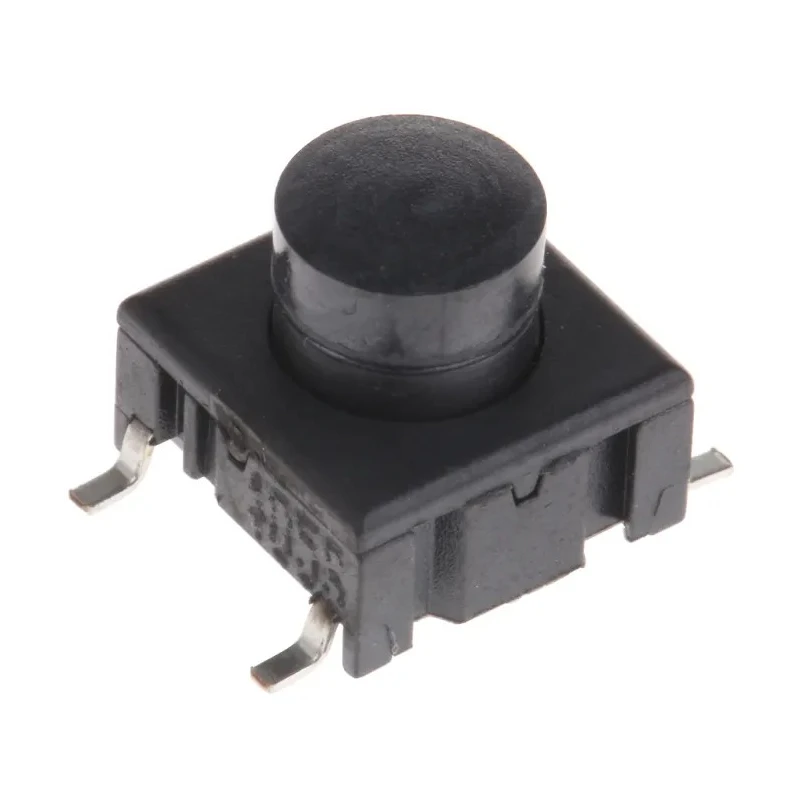

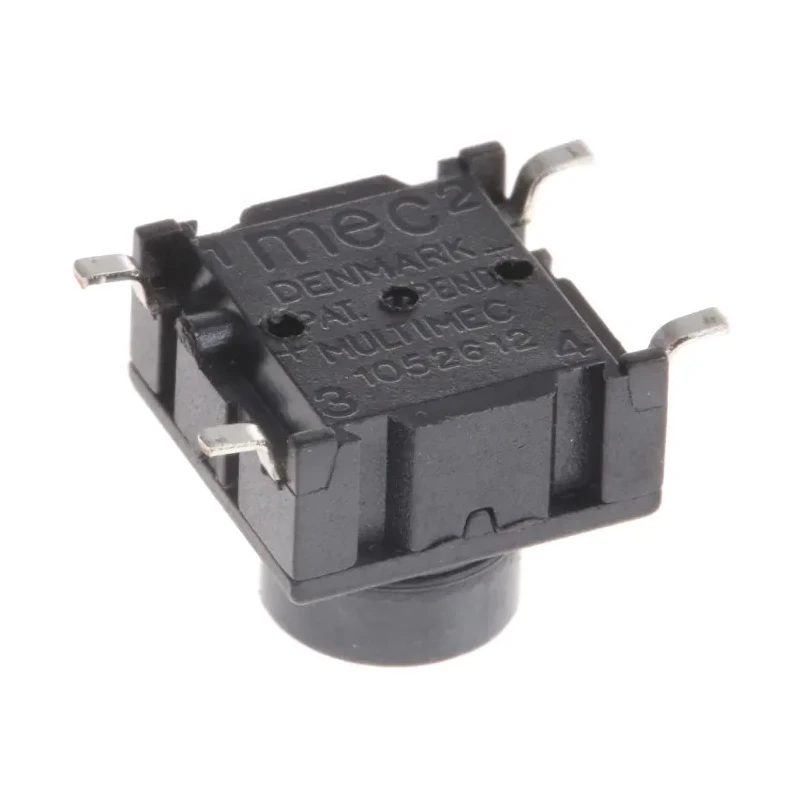

MEC IP67 Black Tactile Switch Button 4.4 mm SPST 50mA 24 V dc PCB IP67
Specifications
| Country of Origin | Denmark |
|---|---|
| Brand | MEC |
| Height | 9.5mm |
| Length | 10.1mm |
| Model | IP67 |
| IP Rating | IP67 |
| Width | 10.1mm |
| Mount Type | PCB |
| Series | 3E |
| Maximum Operating Temperature | 160°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 4.4mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Mechanical Life | 10000000Cycles |
| MEC IP67 Black Tactile Switch Button, 2.9 mm, SPST 50mA 24 V dc, PCBBrand | MEC |
Key Features
- The switch offers a momentary operation mechanism ensuring reliable on-off control.
- It is rated for 50mA contact current at 24 V dc, suitable for low power electronic circuits.
- The switch's body measures 10.1 mm in length and width with a height of 9.5 mm and an actuator length of 4.4 mm.
- Designed to withstand harsh environments, it has an IP67 rating providing complete protection against dust and water ingress.
- It features a mechanical life of 10 million cycles for extended durability in industrial and electronic applications.
- Operating temperature ranges from -40°C to 160°C, supporting diverse environmental conditions.
- The switch includes RoHS compliance, ensuring environmentally safe manufacturing processes.
- Its black button actuator with straight orientation complements its sealed design optimal for PCB surface mount technology.
Product Description
The MEC IP67 Black Tactile Switch Button model IP67 is engineered for demanding electrical and electronics applications requiring reliable tactile input with environmental sealing. This compact switch, with dimensions of 10.1 mm by 10.1 mm and height of 9.5 mm, features a 4.4 mm black button actuator that is straight oriented and designed for mounting on printed circuit boards (PCBs).
Operating as a Single Pole Single Throw (SPST) momentary switch, it carries a contact current rating of 50mA at 24 V dc, suitable for control circuits, instrumentation, and signal applications in industrial automation and consumer electronics alike.
Built to endure rigorous use, it offers an impressive mechanical life of 10 million actuations and operates reliably within a wide temperature range from -40°C to 160°C, supporting harsh environmental conditions.
The tactile switch is sealed to IP67 standards ensuring complete protection against dust ingress and water immersion. It complies with RoHS directives, guaranteeing environmentally responsible manufacturing and reduced hazardous material use.
This switch is ideal for applications requiring precise tactile feedback combined with high environmental resistance such as instrumentation panels, industrial control systems, and rugged consumer electronic devices.
The switch provides momentary ON-OFF control functionality with SPST configuration. Compact body measuring 10.1 mm by 10.1 mm, height 9.5 mm, actuator length 4.4 mm. IP67 rated for dust tight and water immersion protection.
Rated for 50mA current at 24 V dc power supply. Mechanical life expectancy of 10 million cycles ensures longevity. Operating temperature span from -40°C to 160°C suitable for harsh environments. Black, straight-oriented button actuator designed for PCB surface mount installation.
RoHS compliant for environmental safety and manufacture standards.
This MEC Tactile Switch model IP67 is well suited for industrial automation, electronic instrumentation, control panels, and other applications requiring tactile feedback with high ingress protection and mechanical reliability.
Explore more about MEC switches and browse high-quality electronic components at EnvMart for professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a contact current of 50mA at 24 V dc.
This model has an IP67 rating, providing complete protection against dust and water ingress.
The switch measures 10.1 mm in length and width, with a height of 9.5 mm.
It has a mechanical life expectancy of 10 million cycles.
The operating temperature range is from -40°C to 160°C.
Yes, it complies with RoHS directives, ensuring environmentally responsible manufacturing.
It operates as a Single Pole Single Throw (SPST) momentary switch.
This switch is designed for surface mount on printed circuit boards (PCBs).
The actuator length is 4.4 mm.
The actuator is black in color.
It is suitable for applications in industrial automation, electronic instrumentation, and control panels.
The terminal type is surface mount.
