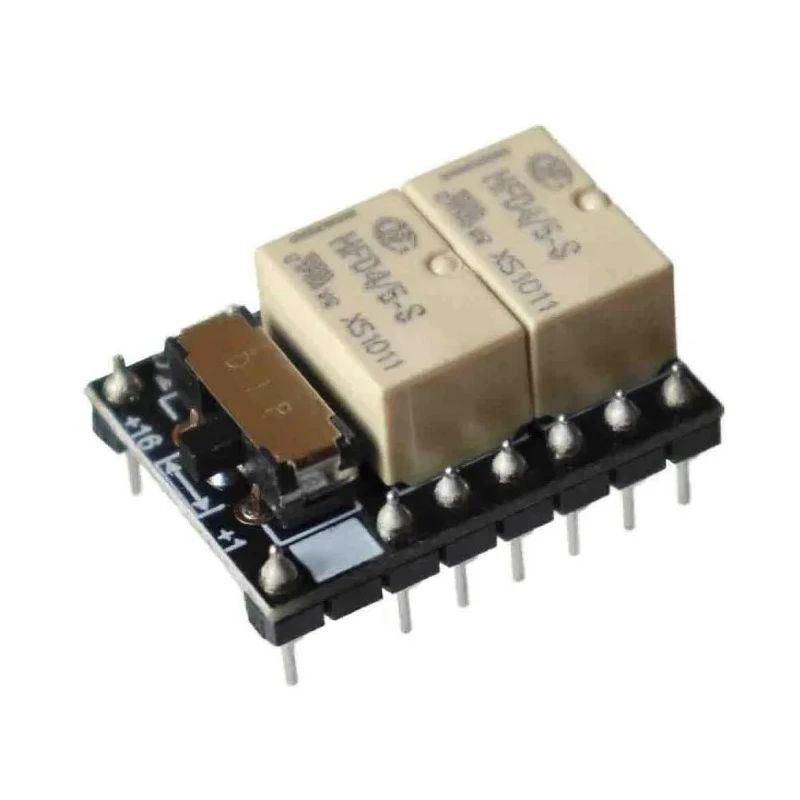

RS PRO Signal Relay PCB Mount 12V DC Coil 2A 4PDT Gold Plated Contacts 193-5848
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Height | 8.4mm |
| Length | 15mm |
| Model | 193-5848 |
| Width | 9.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 280mW |
Key Features
- This relay has a surface mount terminal type for easy PCB integration.
- It supports switching AC voltage up to 250V and DC voltage up to 220V.
- The contact material is gold plated to ensure reliable conductivity and durability.
- The coil resistance is 178 ohms and coil power consumption is 280mW.
- It operates efficiently between -40°C and 85°C temperature range.
- The relay dimensions are compact with 15mm length, 9.4mm width, and 8.4mm height.
- Contact resistance is low at 100 milliohms, ensuring minimal signal loss.
- The product complies with RoHS standards and is made in the United Kingdom.
Product Description

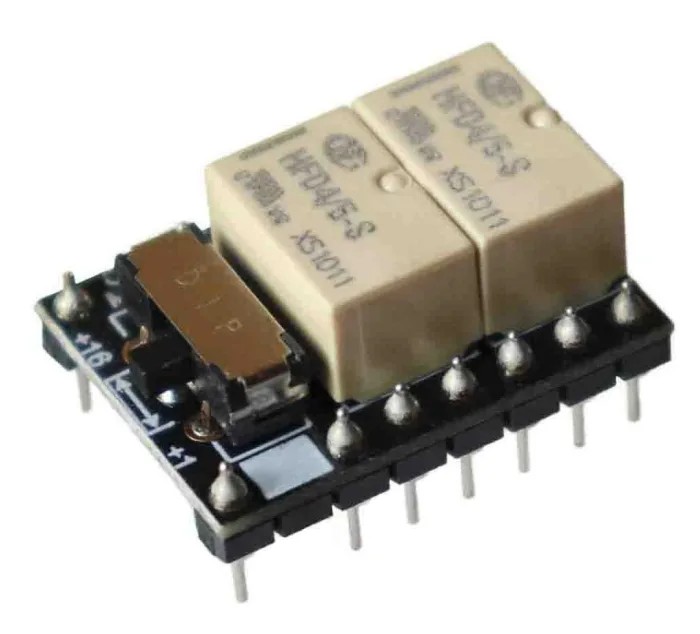

RS PRO 193-5848 is a 4PDT (Four Pole Double Throw) signal relay designed for PCB mount applications, operating with a 12V DC coil voltage and rated for 2A switching current. It is engineered to replace obsolete Tyco/Axicom MT4 and Siemens V23104 relays, featuring polarised signal relays with a polarity selector switch to facilitate integration into various relay circuits.
This relay’s surface mount design and compact dimensions of 15mm length, 9.4mm width, and 8.4mm height make it ideal for space-constrained electronic assemblies. The contact material is gold plated, providing excellent conductivity and resistance to corrosion, thus ensuring long-term reliability in signal switching applications.
It supports switching AC voltages up to 250V and DC voltages up to 220V, suitable for diverse industrial, electronic, and automation scenarios. The coil resistance of 178 ohms combined with a coil power consumption of 280mW allows for efficient operating performance.
The relay functions effectively in a wide temperature range from -40°C to 85°C, making it suitable for demanding environments. Additionally, the contact resistance is maintained at a minimal 100 milliohms to reduce signal degradation.
This product is RoHS compliant, ensuring adherence to environmental standards and is manufactured in the United Kingdom, assuring quality and consistency. This 4PDT PCB mount signal relay features 12V DC coil voltage and 2A switching current.
Gold plated contacts provide superior conductivity and corrosion resistance. Surface mount terminal type facilitates easy installation on PCBs. Supports switching voltages of 250V AC and 220V DC for versatile use. Operates reliably within -40°C to 85°C temperature range.
Compact dimensions of 15mm x 9.4mm x 8.4mm save PCB space. Low contact resistance of 100 milliohms ensures efficient signal transfer. Coil power consumption is 280mW with resistance of 178 ohms. Complies with RoHS environmental standards.
Constructed in the United Kingdom for assured quality.
This RS PRO signal relay is ideal for industrial electronics, automation systems, communication devices, and other applications requiring reliable PCB relay switches. Explore the broad range of high-quality RS PRO products and related Signal Relays available on EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 2A.
The coil voltage for this model is 12V DC.
The relay measures 15mm in length, 9.4mm in width, and 8.4mm in height.
It supports switching AC voltages up to 250V and DC voltages up to 220V.
The contact material is gold plated, which ensures reliable conductivity and resistance to corrosion.
The coil resistance is 178 ohms.
It operates efficiently within a temperature range of -40°C to 85°C.
The contact resistance is low at 100 milliohms, which helps minimize signal loss.
This relay features a PCB mount type for easy integration into printed circuit boards.
Yes, this relay complies with RoHS standards, ensuring adherence to environmental regulations.
The coil power consumption is 280mW.
This relay is suitable for industrial electronics, automation systems, and communication devices requiring reliable signal switching.
