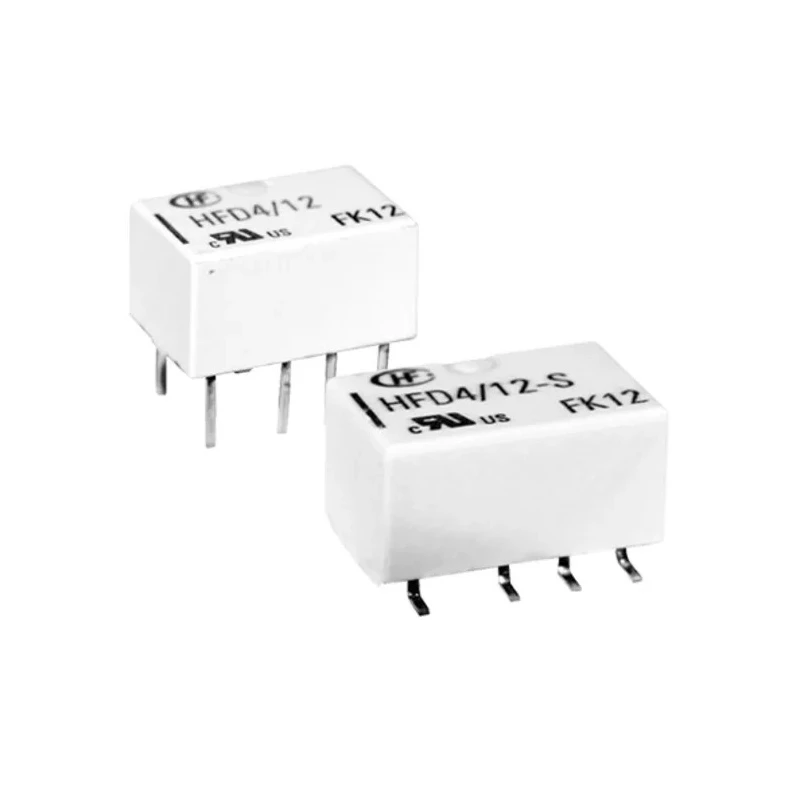

Hongfa Europe GMBH PCB Signal Relay 12V Coil 2A DPDT HFD4/12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 5.4mm |
| Length | 10mm |
| Model | HFD4/12 |
| Width | 6.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | HFD4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Voltage | 12V |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
Key Features
- Operates with a 12V coil voltage ensuring efficient low power consumption.
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching.
- Supports switching currents up to 2A for both AC and DC applications.
- Designed for PCB mounting with gold-plated contacts for enhanced endurance.
- Environmental friendly with compliance to RoHS standards.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- High isolation voltage of 1600VAC between coil and contacts for safety.
- Compact dimensions of 10mm length x 6.5mm width x 5.4mm height save board space.
Product Description
Hongfa Europe GMBH HFD4/12 PCB Signal Relay delivers precise and reliable switching operations with a 12V coil and 2A switching current rating. This DPDT (Double Pole Double Throw) relay is designed for PCB mounting with a compact profile of 10mm by 6.5mm by 5.4mm, making it ideal for applications requiring space efficiency.
The relay features gold-plated contacts offering high electrical endurance and low contact resistance of 100mΩ. It operates safely within a temperature range from -40°C to 85°C and withstands isolation voltages up to 1600VAC. With a coil resistance of 1028Ω and coil power consumption of 140mW, it ensures low power usage in signal control circuits.
This environmental-friendly relay complies with RoHS standards and is suitable for numerous industrial sectors including automotive controls, household appliances, telecommunications equipment, and industrial machinery.
Its robust design includes resistance to vibration and abrasion, with a mechanical life expectancy of up to 100 million cycles, providing high reliability in demanding environments.
Operates at a 12V coil voltage with low consumption of 140mW. DPDT contact configuration for versatile switching. Gold-plated contacts ensure longevity and low resistance. Compact PCB mount design saves space. Wide operating temperature range (-40°C to 85°C) suitable for industrial use.
High isolation voltage of 1600VAC enhances safety. Mechanical life expectancy up to 100 million operations. Applications in automotive, industrial machinery, household appliances, and telecom sectors.
Choose Hongfa Europe GMBH signal relays for dependable PCB relay solutions in industrial, automotive, and electronic control systems. Explore advanced electrical components including Signal Relays and contactors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HFD4/12 relay operates with a coil voltage of 12V.
This model supports a maximum switching current of 2A for both AC and DC applications.
The relay has compact dimensions of 10mm in length, 6.5mm in width, and 5.4mm in height.
It features a Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching.
The HFD4/12 operates within a temperature range from -40°C to 85°C, making it suitable for industrial environments.
The relay is equipped with gold-plated contacts, which enhance electrical endurance and reduce contact resistance.
This model has a high isolation voltage of 1600VAC between the coil and contacts for safety.
The coil resistance for this relay is 1028Ω.
The coil power consumption is 140mW, ensuring low power usage in signal control circuits.
This relay complies with RoHS standards, making it environmentally friendly.
It is suitable for various applications including automotive controls, household appliances, telecommunications equipment, and industrial machinery.
The relay has a mechanical life expectancy of up to 100 million cycles, providing high reliability in demanding environments.
