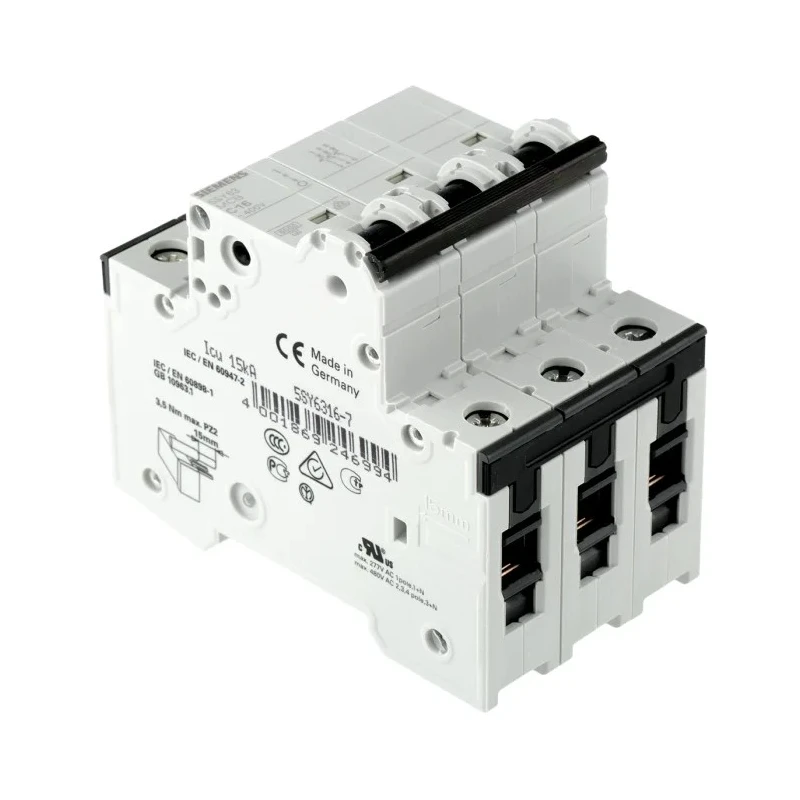

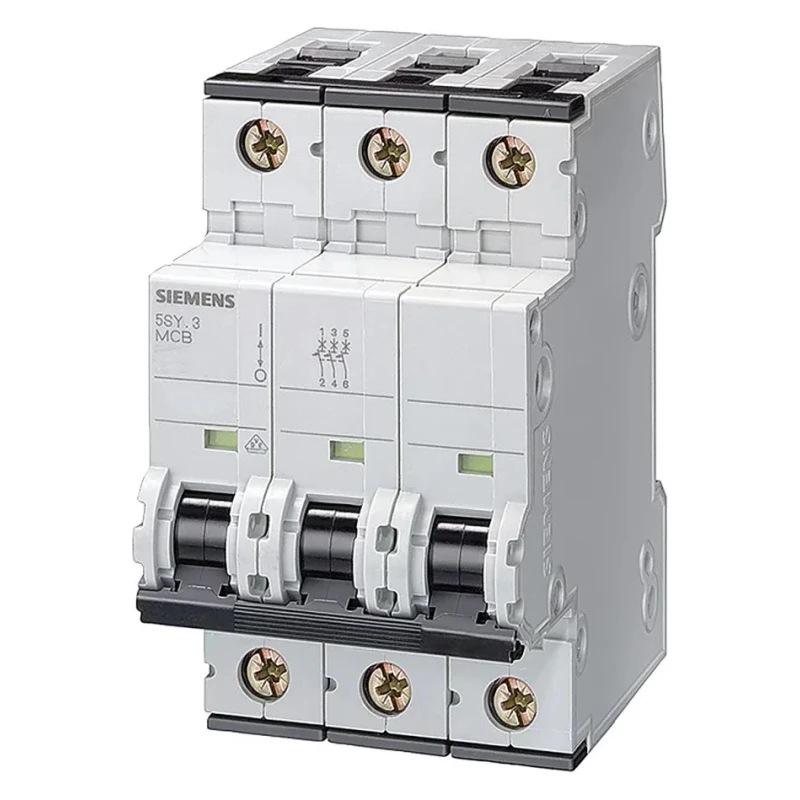

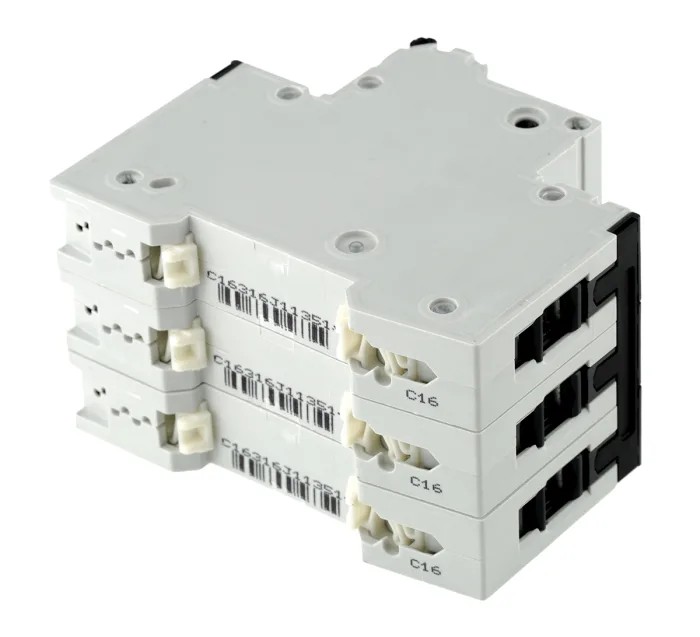

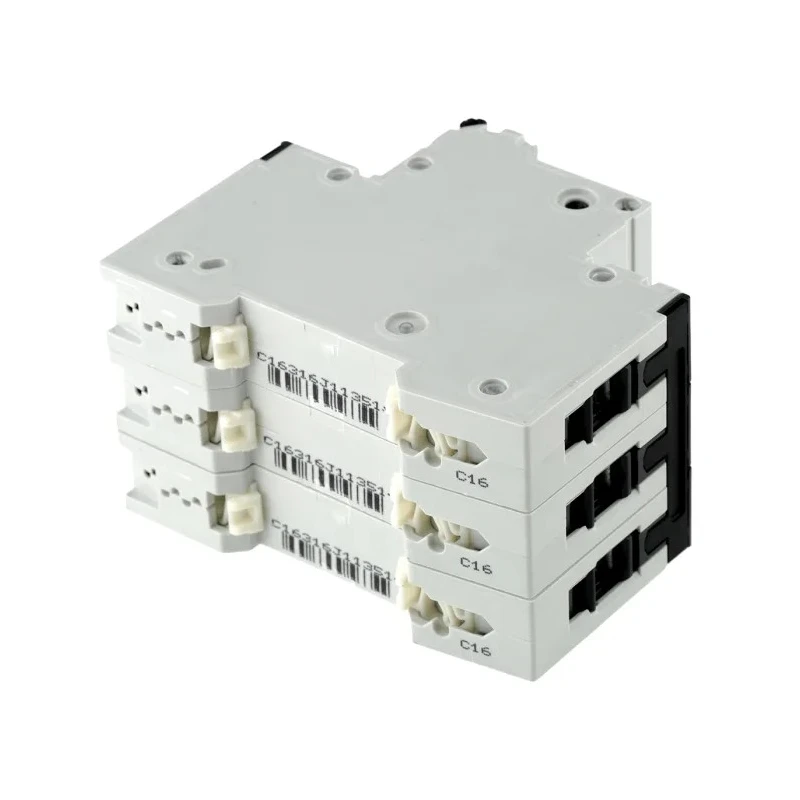

Siemens SENTRON Miniature Circuit Breaker, 3-Pole, 16A, Type C, 400V AC, 72V DC, 6 kA Breaking Capacity 5SY6316-7
Specifications
| Country of Origin | Germany |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SY6316-7 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 53mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | 5SY6 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
| Siemens MCB3P, 16A Curve CBrand | Siemens |
Key Features
- Provides reliable protection with a 6 kA breaking capacity.
- Equipped with screw terminals for secure electrical connections.
- Designed for DIN rail mounting with snap-on mechanism for easy installation.
- IP20 rated enclosure ensures protection against access to live parts.
- Operates effectively in environments from -25°C to +55°C.
- Complies with international standards including IEC 60947-2 and EN 60898.
- Shock and vibration resistant for industrial applications.
- Energy-efficient with low power loss of 1.6W.
Product Description
Siemens 5SY6316-7 Miniature Circuit Breaker is a highly reliable, industrial-grade circuit protection device designed to safeguard electrical systems against overload and short circuits. This 3-pole MCB is rated at 16 amperes and operates at 400V AC and 72V DC voltages, suitable for various electrical installations in industrial and commercial settings.
The device features Type C tripping characteristics, which allow it to trip instantaneously at 5 to 10 times its rated current, providing enhanced protection for circuits with moderate inrush currents such as motors and transformers. It offers a breaking capacity of 6 kiloamperes, ensuring high fault current interruption capabilities that protect equipment and personnel.
Installation is user-friendly with a DIN rail snap-on mount mechanism that permits quick attachment or removal without tools. The screw terminal design supports secure and robust electrical connections. Additionally, the device is IP20 rated, providing finger protection and preventing contact with live internal components.
Engineered to endure harsh environments, the breaker operates reliably across a temperature range of -25°C to +55°C and is shock and vibration resistant, ideal for industrial applications where machinery movement is frequent. Its compact size (90mm height, 53mm width, 76mm depth) allows for efficient panel space utilization.
Certified under internationally recognized standards such as IEC 60947-2, EN 60898, and UL 1077, this Siemens MCB aligns with stringent safety and quality norms. With a low power loss of 1.6 watts, it offers energy efficiency and extended product life, embodying Siemens' commitment to sustainability and performance.
Reliable 3-pole circuit protection with 16A rating and Type C trip curve. High breaking capacity of 6 kA ensures fault current interruption. Easy DIN rail mounting with snap-on and screw terminal connections. Durable design with IP20 protection and wide operating temperature range.
Shock and vibration resistant for industrial robustness. Compact and space-saving dimensions. Certified to major international electrical safety standards. Energy-efficient operation with low power loss.
This Miniature Circuit Breaker is ideal for industrial, commercial, and electrical panel applications requiring reliable, high-quality circuit protection. Explore more Siemens electrical components and circuit breakers at EnvMart to support your projects with trusted, innovative solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a breaking capacity of 6 kA, ensuring effective fault current interruption.
This model operates at a rated AC voltage of 400V and a rated DC voltage of 72V.
The current rating of this miniature circuit breaker is 16A.
It is designed for DIN rail mounting with a snap-on mechanism for easy installation.
The device has an IP20 rating, providing protection against access to live parts.
The dimensions are 90mm in height, 53mm in width, and 76mm in depth.
It features Type C tripping characteristics, allowing it to trip instantaneously at 5 to 10 times its rated current.
It operates effectively in environments ranging from -25°C to +55°C.
It is equipped with screw terminals for secure electrical connections.
Yes, it complies with international standards including IEC 60947-2 and EN 60898.
It has a low power loss of 1.6 watts, contributing to its energy-efficient operation.
It is ideal for industrial, commercial, and electrical panel applications requiring reliable circuit protection.
