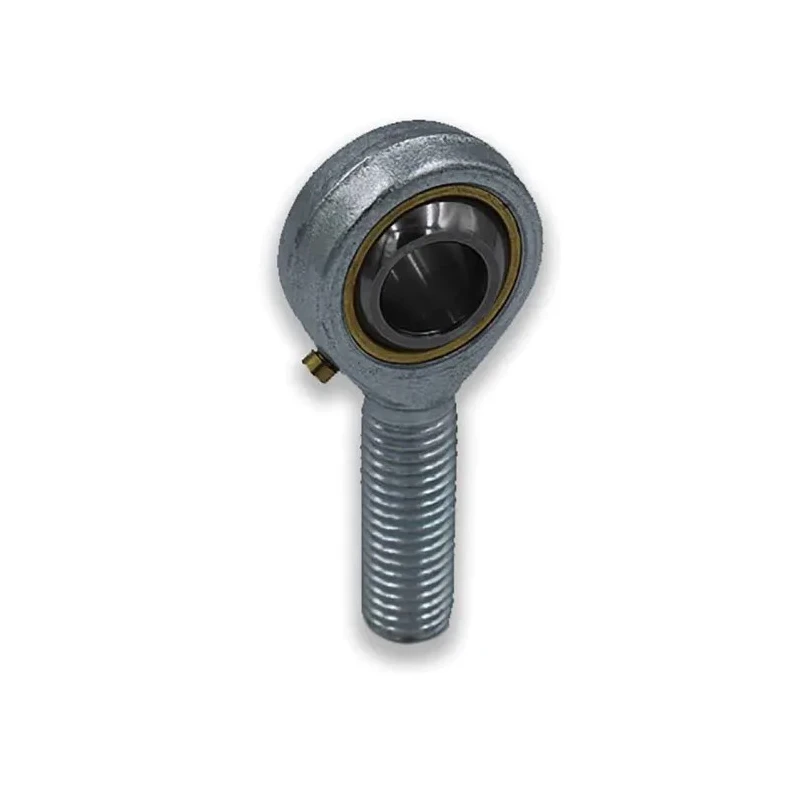

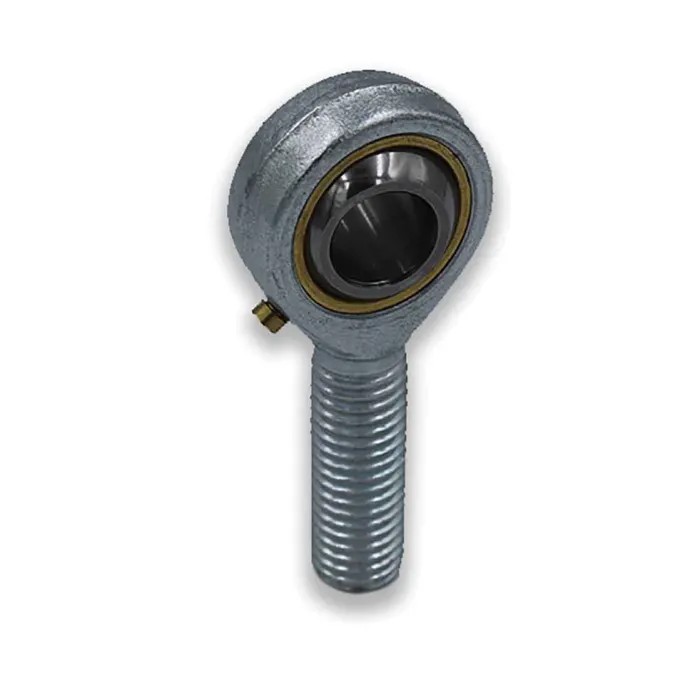

LDK M16 Male Carbon Steel Rod End Metric 16mm Bore POS 16

Free Delivery in India | Lowest Global Shipping Charges

LDK M16 Male Carbon Steel Rod End Metric 16mm Bore POS 16



Category Rod End Brand LDK Condition New

Specifications

Country of Origin	China
Brand	LDK
Material	Carbon Steel
Model	POS 16
Body	Carbon steel,clear Zinc plated
BALL	AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished
Overall Width	85mm
Outside diameter	38mm
Connection Size	M16 Male
Bore Diameter	16mm
Thread Standard	Metric
Static Load Rating	25.9kN
Dynamic Load Rating	16kN
Connection Gender	Male
Race	Brass
Sliding contact surfaces	Steel/Brass

Key Features

Constructed from durable carbon steel with clear zinc plating for corrosion resistance.
Ball made of heat treated AISI 52100 bearing steel, precision ground and polished.
16mm bore diameter suitable for metric standard applications.
Dynamic load rating of 16 kN and static load rating of 25.9 kN for reliable strength.
Thread standard is metric with a male connection gender for compatibility.
Outside diameter measures 38mm with overall width of 85mm ensuring sturdy fitment.
Sliding contact surfaces consist of steel and brass providing smooth operation.
Race component is brass enhancing durability and wear resistance.

Product Description

LDK POS 16 model M16 Male Carbon Steel Rod End Metric with 16mm bore delivers high strength and precision suitable for a wide range of industrial and mechanical uses. This rod end is designed to provide reliable rotary bearing support in demanding fluid power and mechanical systems.

The ball component is constructed from AISI 52100 bearing steel that has been heat treated to achieve a hardness rating between HRC58-64, and is precision ground and polished for excellent performance and longevity. The body is made of carbon steel with a clear zinc-plated finish offering corrosion resistance in industrial environments.

It features a 16mm bore diameter and complies with metric thread standards, making it suitable for metric connection requirements. The connection is male with an outside diameter of 38mm and overall width of 85mm, ensuring a robust and accurate fit.

The race is crafted from brass, combined with sliding contact surfaces of steel and brass to ensure smooth operation and increased wear resistance. With a dynamic load capacity of 16 kN and static load rating of 25.9 kN, this rod end is capable of withstanding significant mechanical stress.

Manufactured in China, the POS 16 meets the needs of industries including manufacturing, hydraulics, fluid power systems, and mechanical assemblies demanding precision rotary bearing components.

Durable carbon steel body with clear zinc plating. Heat-treated AISI 52100 bearing steel ball for high hardness. Brass race and steel/brass sliding contact surfaces for durability. Metric M16 male thread standard connection.

Robust load ratings for static and dynamic applications. Corrosion-resistant finish suited for industrial environments. Precision ground and polished components for smooth operation. Suitable for fluid power, mechanical, and hydraulic systems.

Manufactured under strict quality standards in China. Explore more rotary bearings and Rod Ends within our Industrial Tools & Equipment section at EnvMart for premium quality solutions tailored to your mechanical requirements.
