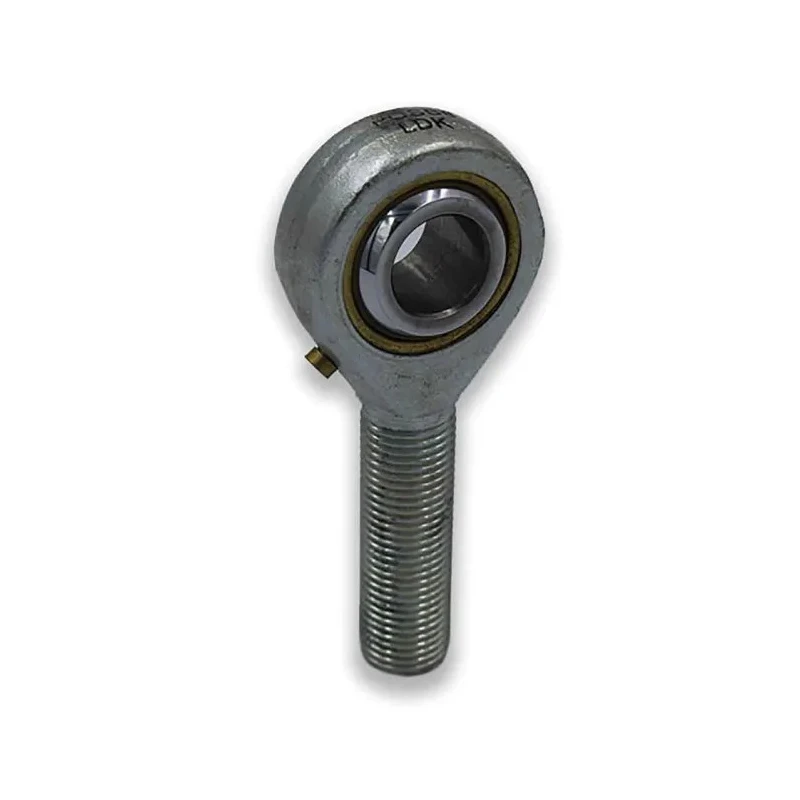

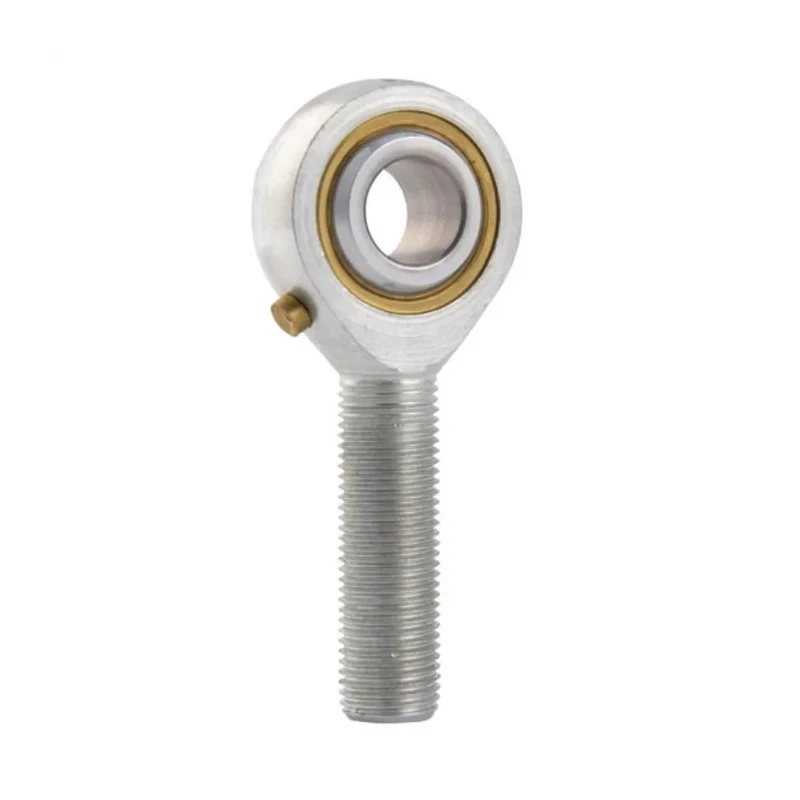

LDK Carbon Steel Rod End UNF 11.11mm Bore Left Hand Thread POSB7L

LDK POSB7L Carbon Steel Rod End UNF 11.11mm Bore is a durable male rod end designed for rotary bearing and mechanical applications requiring precise and reliable motion transfer. This rod end offers a robust carbon steel body with clear zinc plating that protects against corrosion and extends service life in demanding industrial environments.

The ball component is crafted from AISI 52100 bearing steel, heat treated to a minimum hardness of HRC56, precision ground, and polished with a hard chromium plating to ensure excellent wear resistance and smooth operation.

Sliding contact surfaces are formed from a combination of steel and brass materials to provide optimal friction characteristics and long-lasting performance. This product supports a dynamic load rating of 10 kN and a static load rating of 17 kN, emphasizing its suitability for applications subjected to varying mechanical stresses.

Technical dimensions include a bore diameter of 11.11 mm, outside diameter of 28.58 mm, and an overall width of 68.27 mm, corresponding to 7/16 UNF sizes with left hand thread and male connection gender.

Manufactured in China, this rod end is well-suited for use in industrial machinery, fluid power systems, HVAC assemblies, agricultural equipment, and other commercial mechanical components requiring precise rotary bearing units.

Constructed with carbon steel body featuring clear zinc plating for corrosion resistance. Ball made from heat treated AISI 52100 bearing steel with hard chromium plating. Sliding contact surfaces consist of steel and brass for durability and wear resistance.

Dynamic load rating of 10 kN and static load rating of 17 kN for robust mechanical support. Dimensions compatible with 7/16 UNF thread standard including bore and outside diameters. Available in the Rod Ends category on EnvMart for industrial applications requiring high-quality rotary bearings.
