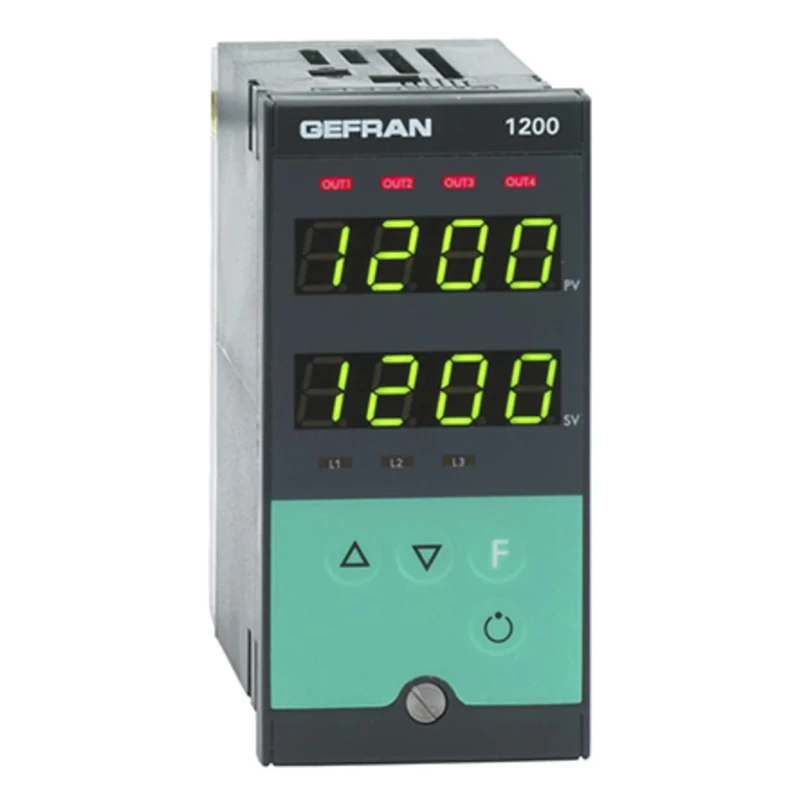

Gefran 1200 Panel PID Temperature Controller 3 Input, 3 Output Relay 240V AC On-Off F024894/ 1200-RDR0-00-0-1

Gefran F024894/ 1200-RDR0-00-0-1 Panel PID Temperature Controller is a microcontroller-based unit designed for precise control of heating and cooling systems in industrial process control environments. It supports 3 configurable universal inputs, including RTD 3-wire sensors, auxiliary current transformer inputs, digital inputs, and universal thermocouples, offering extensive versatility for varied industrial requirements.

The controller provides 3 relay outputs capable of managing loads up to 5A, ensuring robust and reliable actuation. It operates on a 240V AC power supply and utilizes an On-Off control type with additional control modes such as P, PD, PI, and PID, which can be adjusted via the front keypad. The device employs phase angle firing for effective power regulation across two controlled phases.

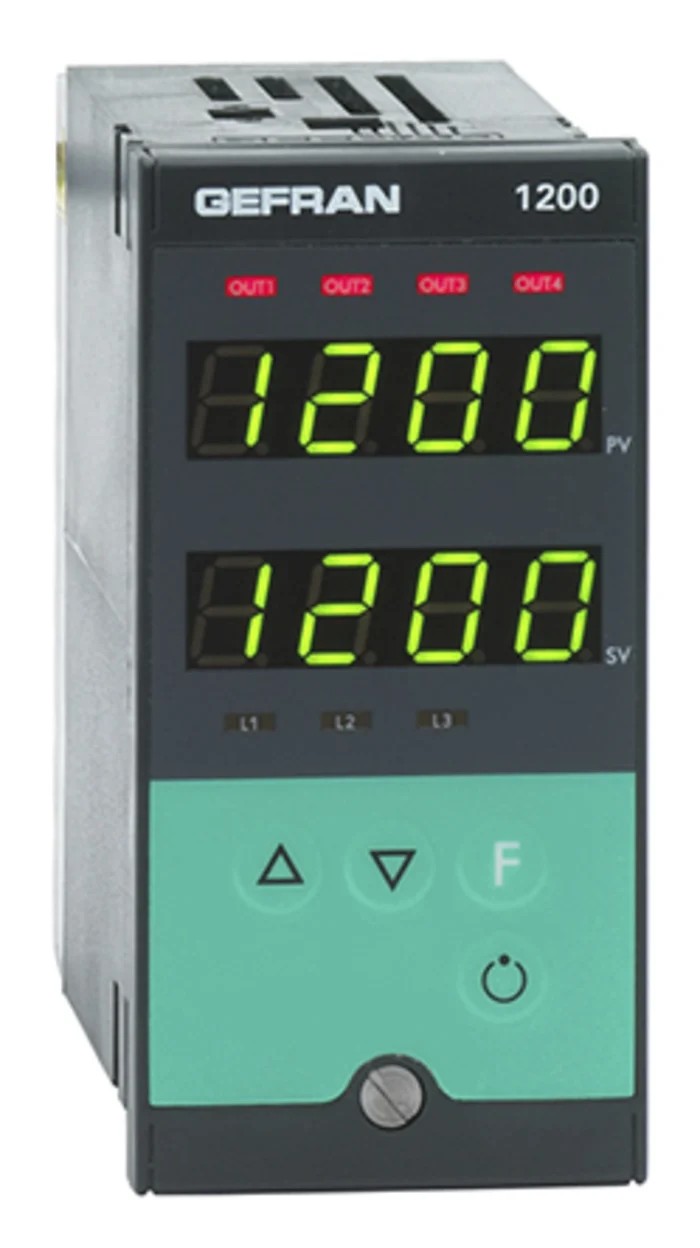

Its front panel features a multi-line LED display with 10mm green characters that clearly show both the process variable (PV) and the set value (SV), supported by intuitive function buttons to facilitate easy operation and function selection. The IP65 rated facia ensures protection against dust and moisture, making it suitable for harsh industrial environments.

Communication capabilities include Modbus RTU over RS422, RS485, and current loop interfaces, with baud rates between 1200 and 19200 bps, enabling integration with industrial automation networks. The panel mount design, compliant with the 1/8 DIN size standard of 48mm by 96mm, and a panel depth of 100mm, offers space-efficient installation options.

The controller is well suited for applications such as material injection presses, thermoforming machines, heating ovens, packing machines, and extrusion lines where precise temperature regulation is critical. Safety features include configurable alarms for load break or sensor faults to enhance reliability and protect connected equipment.

Manufactured in Italy, it conforms to stringent EN 61000-6-2 and EN 61000-6-3 electromagnetic compatibility standards, as well as EN 61010-1 safety requirements. This makes the Gefran 1200 series a trusted solution for demanding industrial temperature control tasks.

Equipped with 3 universal inputs including RTD, Auxiliary CT, Digital, and Thermocouple sensors. Includes 3 relay outputs with a maximum current rating of 5A for reliable switching. Operates in a temperature range of 0°C to 50°C suitable for general industrial use.

Features multi-line LED display for clear PV and SV visualization. Supports Modbus RTU communication via RS422, RS485, and current loop with 1200-19200 bps baud rate. Compact 48x96 mm 1/8 DIN panel mount design with IP65 protection rating.

Provides ON-OFF, P, PD, PI, and PID control modes for versatile temperature regulation. Manufactured in Italy, certified to EN and C/UL/US standards. Explore more industrial Temperature Controllers and related automation products at EnvMart.
