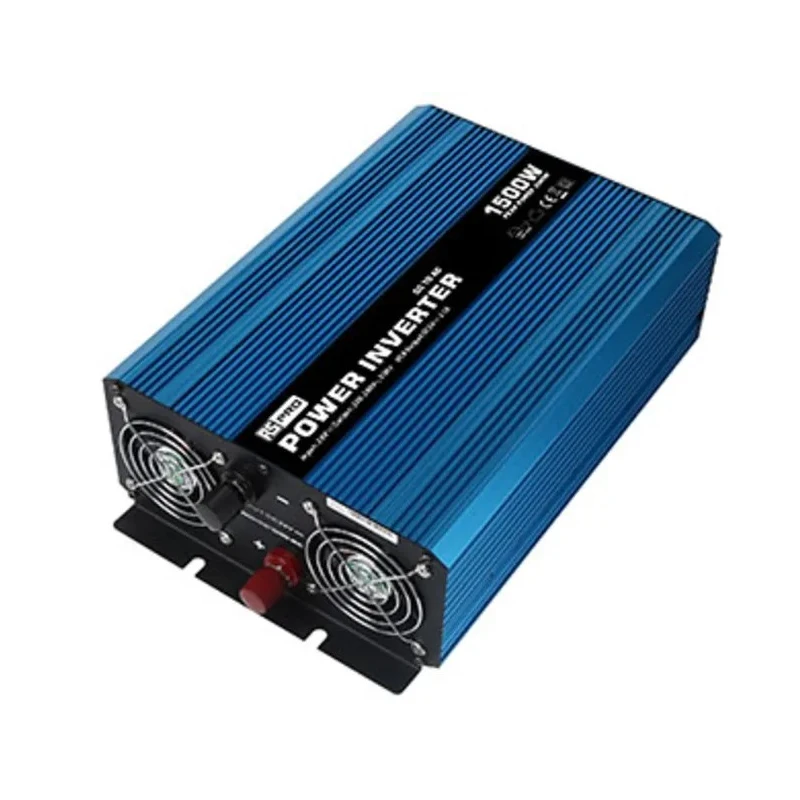

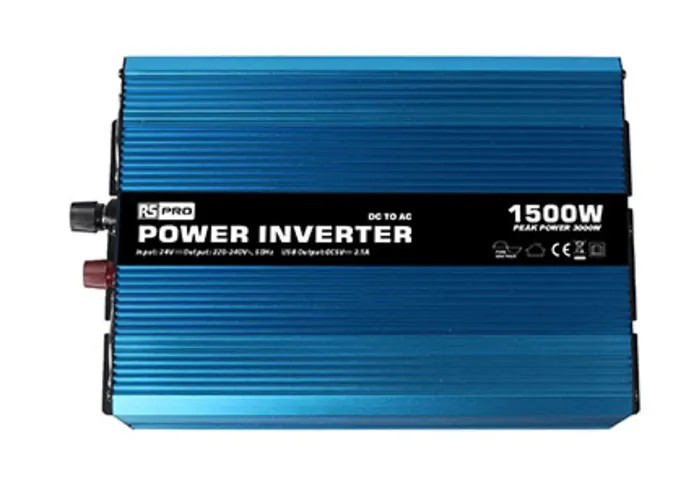

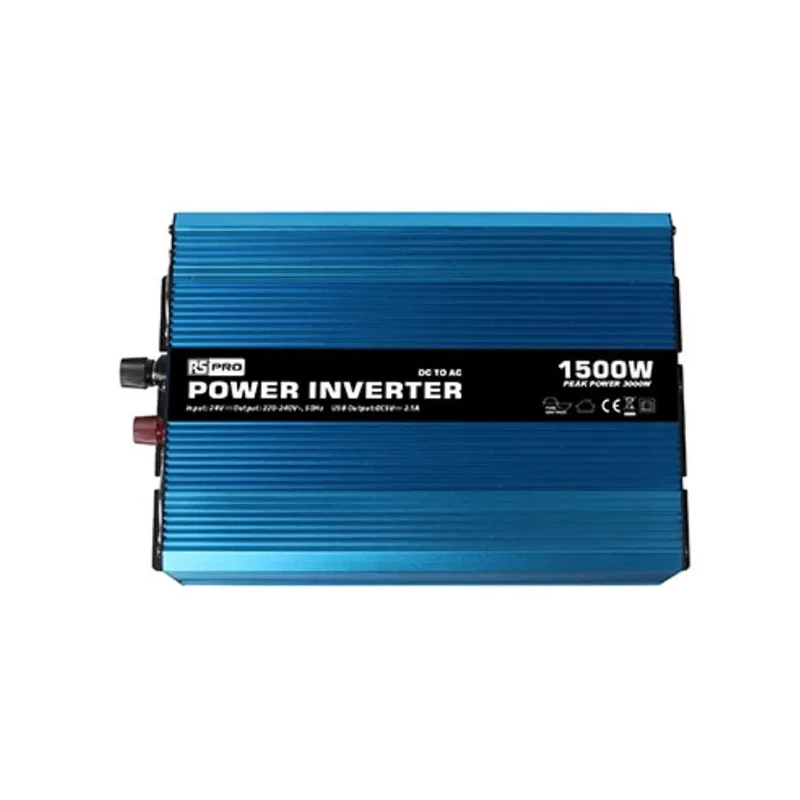

RS PRO Chassis Mount 1500W Power Inverter 24V Input 230V Output 90% Efficiency 13.4A 2 Outputs 50°C Max Operating 179-3334

RS PRO 179-3334 chassis mount power inverter is a robust 1500 W fixed installation DC-AC power inverter designed for converting 24 V DC input into 230 V AC output. It is suitable for applications such as recreational vehicles, boats, trucks, and other fixed installations requiring reliable AC power supply from DC sources.

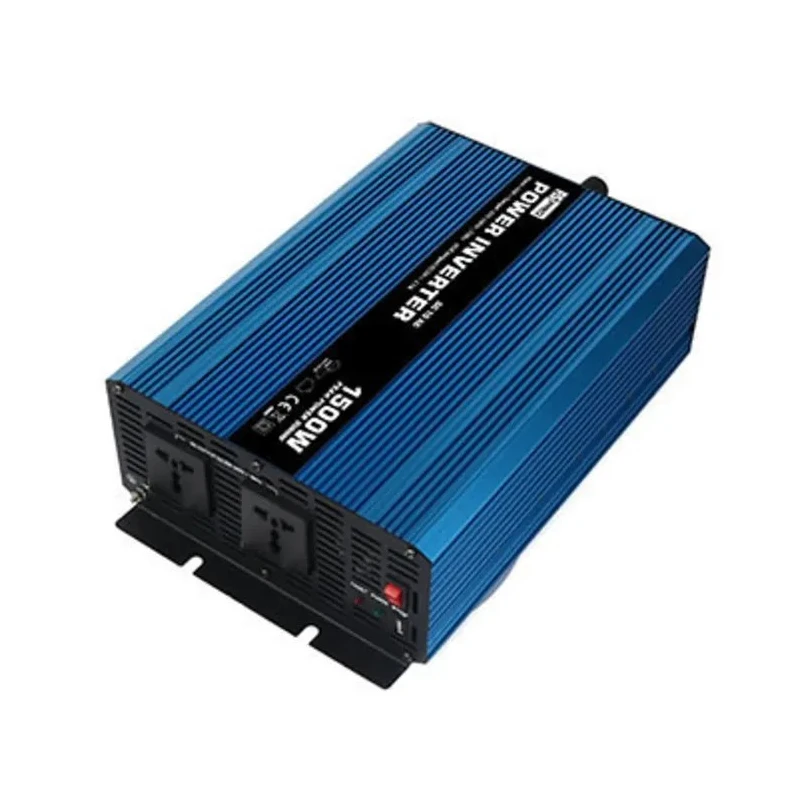

The inverter features two universal output connectors allowing simultaneous powering of multiple appliances. Its anodised aluminium chassis not only provides structural durability but also optimizes heat dissipation, protecting internal components from overheating during continuous use.

With an output current rating of 13.4 A and a high efficiency of 90%, this inverter ensures efficient power conversion with minimal losses. The device operates safely within a wide ambient temperature range from -20°C to 50°C, making it versatile for various environments.

Protection features include overload, short circuit, overvoltage, undervoltage, and reverse polarity safeguards, enhancing operational safety and longevity. The unit’s compact footprint (372 mm x 230 mm x 107.7 mm) facilitates ease of installation in tight spaces.

Designed to comply with international safety and electromagnetic compatibility standards such as RoHS, CE, EN 61000 series, and ECE R10.05:2014, this inverter meets rigorous compliance required for vehicle and residential usage environments.

The impressive mean time between failures (MTBF) of 50,000 hours underscores its reliability in industrial, automotive, marine, and residential power supply applications. This inverter is well suited to power a variety of household appliances, power tools, and lighting equipment from a vehicle or fixed DC battery source.

Designed for 24V DC input with 230V AC output voltage. Delivers 1500W continuous power with two universal output sockets. Features 13.4A output current capacity and 90% efficiency. Constructed with anodised aluminium chassis for effective heat dissipation.

Operational temperature range from -20°C to 50°C suitable for varied environments. Includes built-in protection against overload, short circuit, overvoltage, low voltage, and reverse polarity. Compact dimensions: 372mm length, 230mm width, and 107.7mm depth.

Mean time between failures (MTBF) rated at 50,000 hours ensuring reliability. Compliance with RoHS, CE, EN 61000-6-1, EN 60950-1, EN 61000-6-3, and ECE R10.05:2014 standards. Ideal for powering household appliances and tools in RVs, boats, and trucks.
