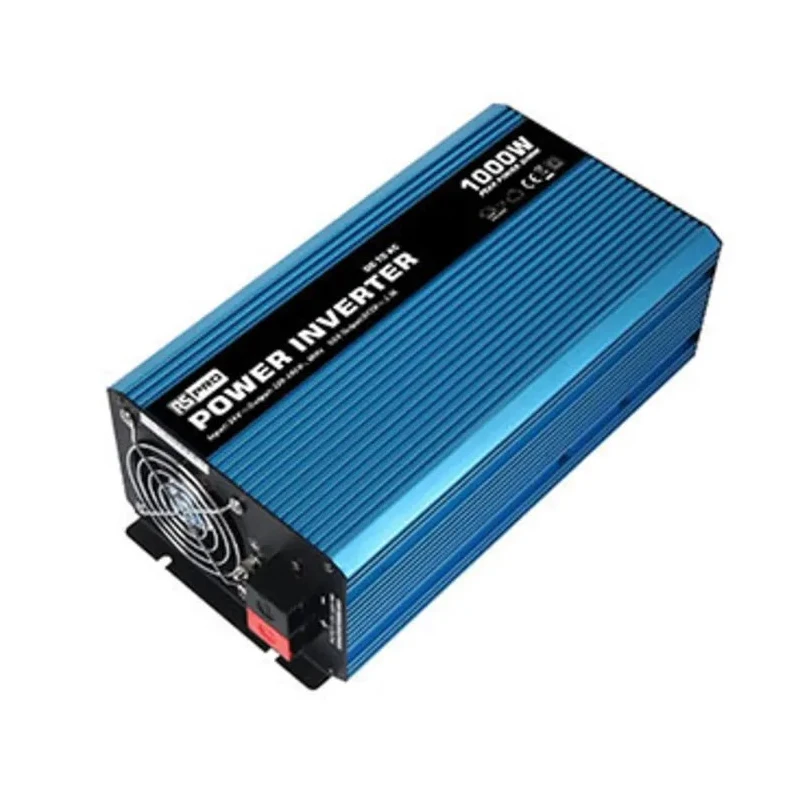

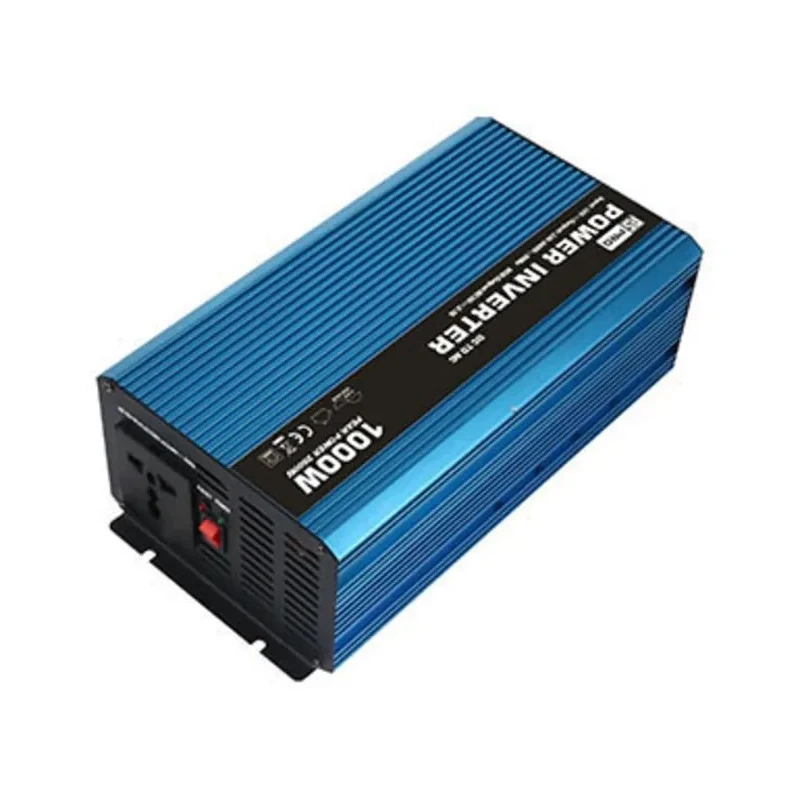

RS PRO Chassis Mount 1000W Power Inverter, 24V Input, 230V Output 179-3331

RS PRO 179-3331 chassis mount power inverter converts 24V DC input from sources like car batteries into 230V AC output suitable for domestic and sensitive electronics. This fixed installation DC-AC inverter generates a pure sine wave to optimally power smart devices and prevent damage.

Designed with a compact and sturdy anodised aluminium chassis mount case, this inverter dissipates heat efficiently and is built to withstand harsh conditions. It includes essential protection features such as over heating protection, short-circuiting, and overload safeguards to ensure safety and reliability.

The inverter’s operation spans from -20°C minimum to 50°C maximum, making it adaptable for various industrial, automotive, and field applications. With a continuous power output of 1000W and intermittent power capacity of 1100W, along with surge power for handling transient loads, it meets demanding performance needs.

This model has a universal output connector compatible with a wide range of appliances and devices. Its efficiency rating exceeds 90%, ensuring minimal energy loss. The mean time between failures (MTBF) is rated at 50,000 hours, confirming high reliability for extended use.

Physical dimensions of 302.2mm length, 150mm width, and 97.4mm depth facilitate straightforward chassis mounting. The inverter complies with standards such as ECE R10.05:2014, EN 61000-6-1, EN 61000-6-3 for electromagnetic compatibility, EN 60950-1 for safety, and RoHS, supporting regulatory compliance requirements.

This inverter outputs a pure sine wave ideal for sensitive electronics. It features an efficiency rating of over 90% for effective power use. Built with over heating protection and durable anodised aluminium chassis mount design.

Supports a wide operating temperature range from -20°C to 50°C. Compact dimensions ensure easy installation in tight spaces. Reliable operation with a mean time between failures of 50,000 hours. Output current of 8.7 A with surge power capacity for transient load protection.

Conforms to multiple international standards for EMC and safety.

Ideal for automotive, industrial, laboratory, and commercial applications where stable AC power conversion from DC supply is required. Explore more Power Inverters and related equipment at EnvMart’s Electronics & Electricals category.
