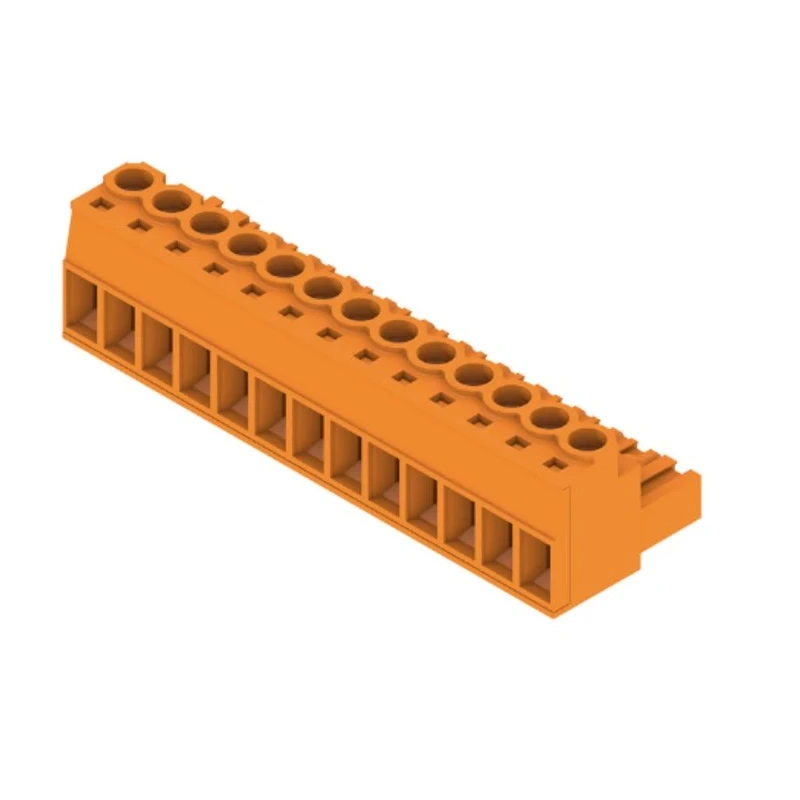

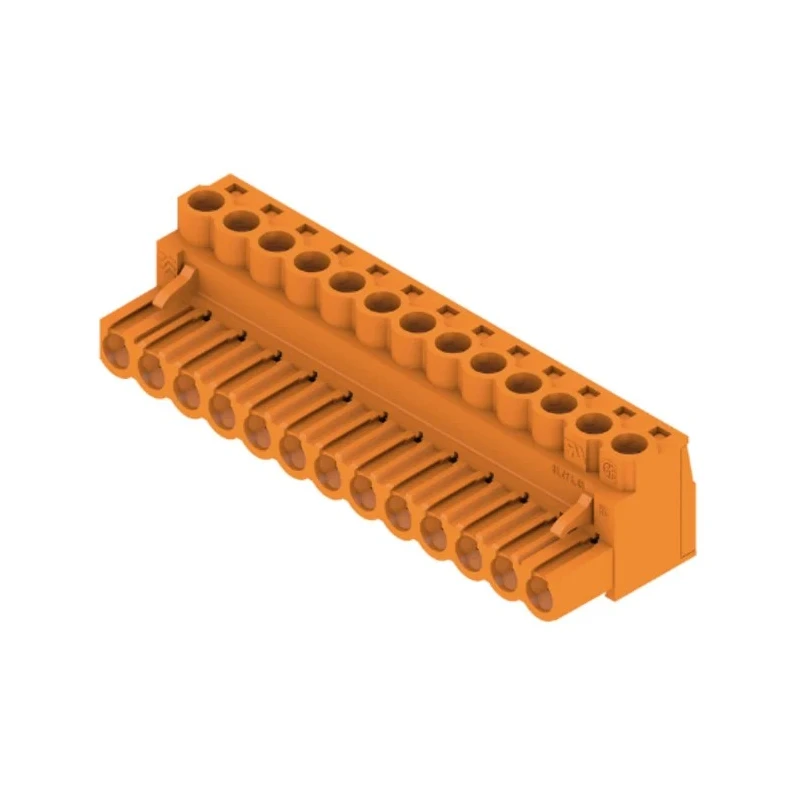

Weidmüller BL Series Pluggable Terminal Block, 13-Contact, 5.08 mm Pitch, 1 Row, 20A, 400V, Right Angle, Screw 1943690000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller BL Series Pluggable Terminal Block, 13-Contact, 5.08 mm Pitch, 1 Row, 20A, 400V, Right Angle, Screw 1943690000

Name: Weidmüller BL Series Pluggable Terminal Block, 13-Contact, 5.08 mm Pitch, 1 Row, 20A, 400V, Right Angle, Screw 1943690000
Brand: Weidmuller
SKU: 333408
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Weidmüller
Colour	Orange
Orientation	Right Angle
Current	20A
Length	74.96mm
Depth	16mm
Width	20.1mm
Housing Material	Copper Alloy
Series	BL
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	RoHS
Number of Contacts	13
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	4mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw

Key Features

Rated for 20A current, ensuring support for high electrical loads.
Features a screw wire connection method for secure and easy installation.
Constructed with durable copper alloy housing for reliable conductivity and longevity.
Designed with a single row and right-angle orientation to optimize space in equipment.
Compatible with voltages up to 400V, suitable for various industrial applications.
Supports a wide range of wire sizes from 0.2mm² to 4mm², accommodating different wiring needs.
Orange color coding improves visibility and identification during installation.
Meets RoHS standards, ensuring compliance with environmental regulations.

Product Description

Weidmüller 1943690000 BL Series Pluggable Terminal Block is a high-quality electrical connector designed for industrial and commercial applications requiring compact and reliable wiring solutions. With 13 contacts and a 5.08 mm pitch, this terminal block facilitates precise and secure connections in a right-angle, single-row configuration.

This terminal block supports a current rating of 20A and voltage up to 400V, making it suitable for automation systems, power distribution panels, electronic equipment wiring, and mechanical assemblies. The screw termination method simplifies installation and maintenance by providing stable wire clamping. The copper alloy housing ensures excellent conductivity and durability, while the orange color enhances identification and safety.

The device supports a broad wire size range, from 0.2 mm² (26 AWG) to 4 mm² (12 AWG), accommodating diverse wiring requirements. Its compact form factor, with dimensions of approximately 74.96 mm length, 20.1 mm width, and 16 mm depth, fits seamlessly into space-constrained environments. Compliant with RoHS standards, it aligns with environmental and safety regulations.

Rated for 20A current and 400V voltage for demanding electrical connections. Screw wire connection ensures secure and easy wiring. Durable copper alloy housing with orange color for clear identification. Right-angle, 1-row design saves valuable space in equipment layouts.

Wide wire size compatibility from 0.2 mm² to 4 mm² for versatile usage. Ideal for industrial automation, power distribution, and control systems. RoHS compliant, meeting environmental and safety standards.

This Weidmüller BL Series Pluggable Terminal Block is manufactured in Germany, reflecting high manufacturing standards and quality assurance. Whether used in circuit connections, electronic control panels, or machinery, it provides reliable performance and ease of installation. Explore EnvMart for similar premium electrical components and terminal block solutions to meet your industrial and commercial needs.
