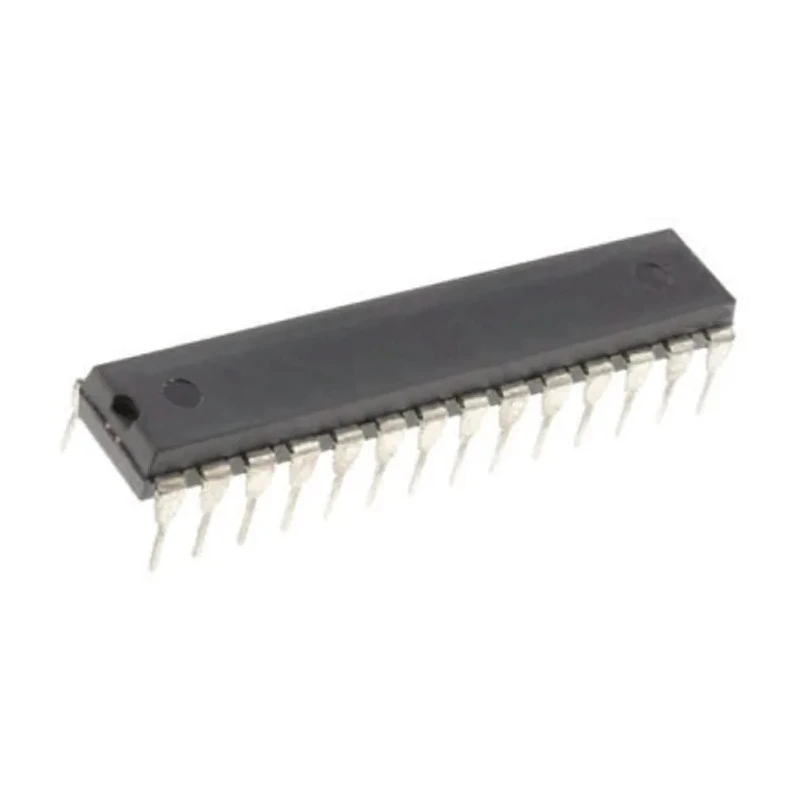

Microchip 8 Bit PIC Microcontroller PIC16C63A-20/SP, 20 MHz, 7kB EPROM, 28-Pin SPDIP

Microchip PIC16C63A-20/SP is an 8-bit microcontroller based on the PIC16C family, featuring a 20 MHz maximum clock frequency and 7 kB EPROM program memory. This device incorporates Microchip's renowned PIC architecture, offering high-performance embedded control suitable for a variety of applications. The microcontroller includes 192 bytes of RAM and 22 programmable I/O pins, packaged in a 28-pin SPDIP through-hole form factor.

Designed for efficiency and versatility, the PIC16C63A offers an 8-level hardware stack and a 14-bit instruction set architecture enabling up to 5 million instructions per second (MIPS). It operates within supply voltages ranging from 4 to 5.5 volts and supports operating temperatures from 0°C to 70°C, making it suitable for harsh operating environments.

This microcontroller features three timers, a watchdog timer (WDT), and power management functions including power-on reset (POR), power-up timer (PWRT), and brown-out reset (BOR). The on-board RC oscillator provides ±1% accuracy, while in-circuit serial programming (ICSP) allows easy reprogramming without removing the device from the circuit.

The PIC16C63A is a legacy part, widely used in industrial control systems, consumer devices, automotive electronics, and laboratory equipment due to its proven reliability and robust feature set. While now superseded by Flash-based PIC16F series microcontrollers, the PIC16C63A remains popular in existing designs and applications requiring EPROM memory.

The PIC16C63A microcontroller operates with an 8-bit RISC architecture optimized for embedded system control. It features 7kB of EPROM program memory and 192 bytes of RAM for data handling. Maximum clock frequency is 20 MHz, enabling up to 5 MIPS performance for real-time applications.

Possesses 22 programmable input/output pins for flexible interfacing capabilities. The 28-pin SPDIP package supports through-hole mounting for robust hardware integration. Operates within a supply voltage range of 4V to 5.5V, with maximum power dissipation rating of 1 watt.

Suitable for operating temperature range from 0°C to 70°C, complying with RoHS environmental standards. Includes three timers, RC oscillator with ±1% accuracy, and a 14-bit instruction set for precise control. Supports In-Circuit Serial Programming (ICSP) and features watchdog timer and power-on reset functionalities.

Ideal for industrial, consumer electronics, automotive, and laboratory embedded control applications.
