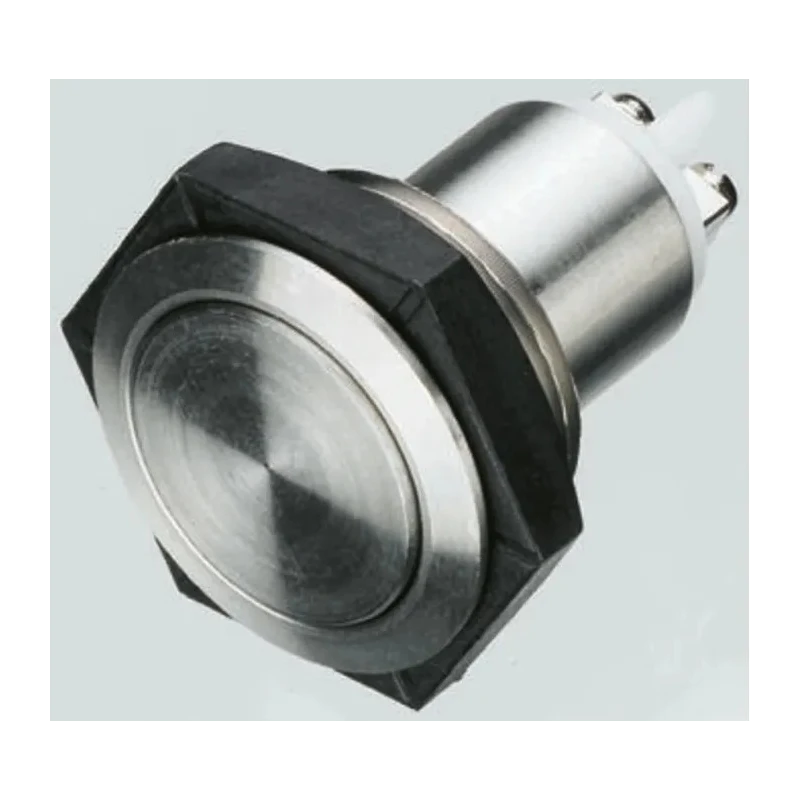

Schurter MCS ES 22 Series Momentary Push Button Switch Panel Mount, 22.2 mm Cutout, SPST, IP40, 48 V dc 1301.9565

Schurter 1301.9565 is a high-quality momentary push button switch from the MCS ES 22 series designed for panel mounting with a precise 22.2 mm cutout. The switch delivers reliable SPST (Single Pole Single Throw) switching capability with a silver push button actuator style that is non-illuminated, suitable for various electrical and industrial control applications.

The switch supports a contact DC voltage rating of 48 V dc and a switch contact current of 125mA, making it appropriate for low power control circuits. Its IP40 rating ensures protection against solid objects larger than 1 mm, suitable for panel environments with moderate exposure. The device operates efficiently within a wide temperature range of -25°C to +85°C, making it resilient for diverse conditions.

Dimensionally, the switch has a height of 34.8 mm and requires a panel cutout of 22 mm. It has a maximum panel thickness capacity of 5 mm and a rear depth of 33 mm, facilitating easy installation. The switch includes gold contacts rated at 50mA at 24 V d.c. with low contact resistance (10mΩ) for optimal electrical performance and longevity.

With a mechanical life expectancy of 500000 actuations and an electrical life of 300000 operations, this switch ensures extended durability in demanding industrial, laboratory, manufacturing, and automation use cases. It also complies with CE, EN, and RoHS standards, guaranteeing safety and environmental compliance.

This momentary push button switch is ideal for integration in industrial control panels, automation systems, and electrical devices where precise momentary switching is required. Schurter's proven engineering quality makes this product suitable for professional applications in electronics and electrical sectors.

The actuator features a silver push button style that is momentary and non-illuminated. Offers a contact configuration of Single Pole Single Throw (SPST) with screw terminal type. Rated for 48 V dc contact voltage and a switch contact current of 125mA.

Operates in a temperature range of -25°C to +85°C ensuring durability in varied industrial environments. Compact dimensions with a height of 34.8mm and depth behind the panel of 33mm, supporting max. panel thickness of 5mm.

Mechanical life rated at 500000 operations and electrical life of 300000 operations for extended reliability. Compliance with CE, EN, and RoHS standards for safety and environmental requirements. Features gold contacts with a contact rating of 50mA at 24V dc and a low contact resistance of 10mΩ.
