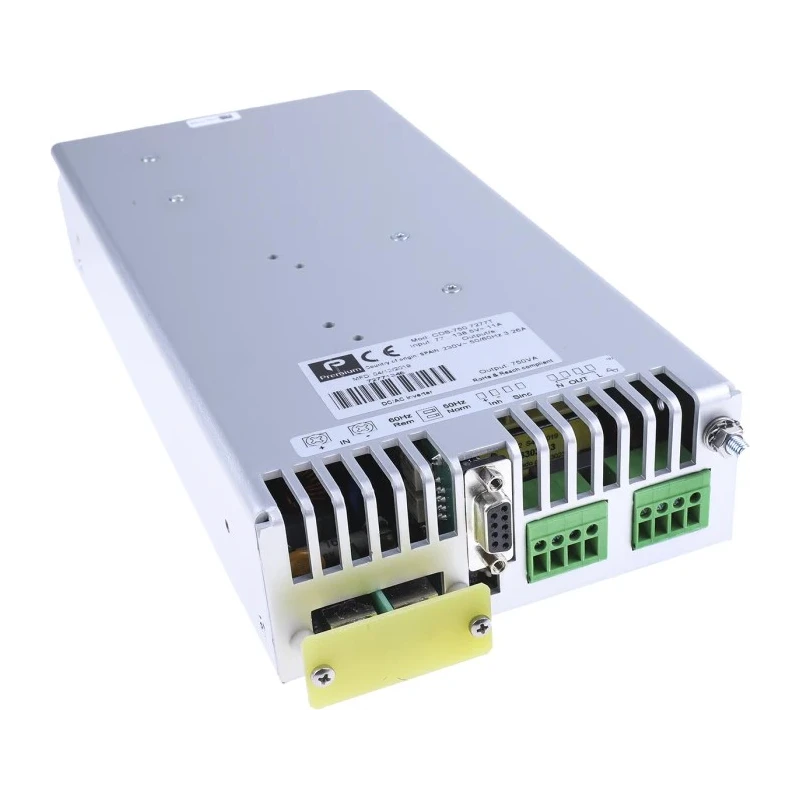

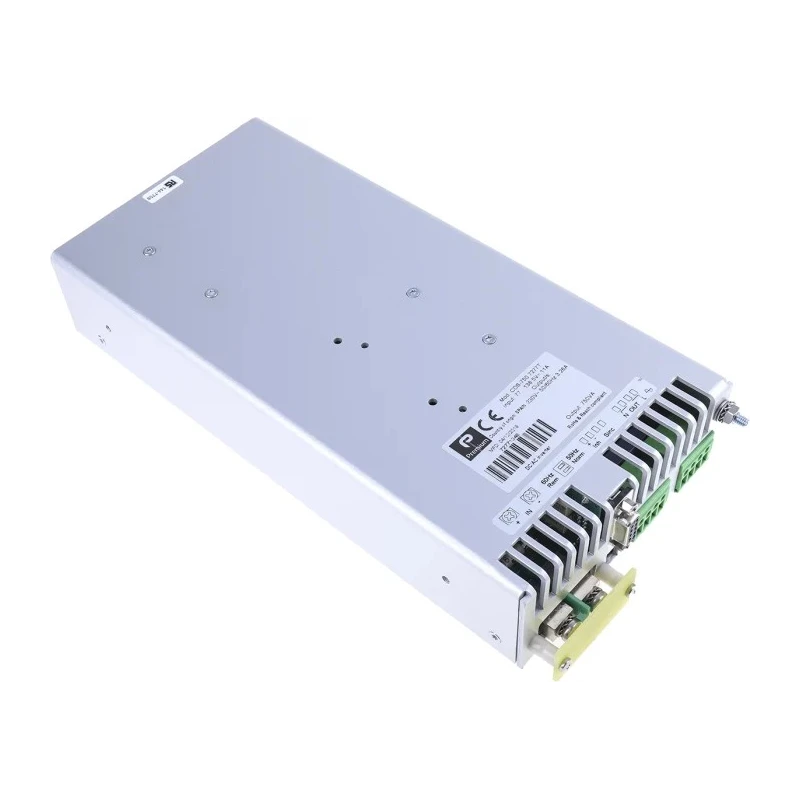

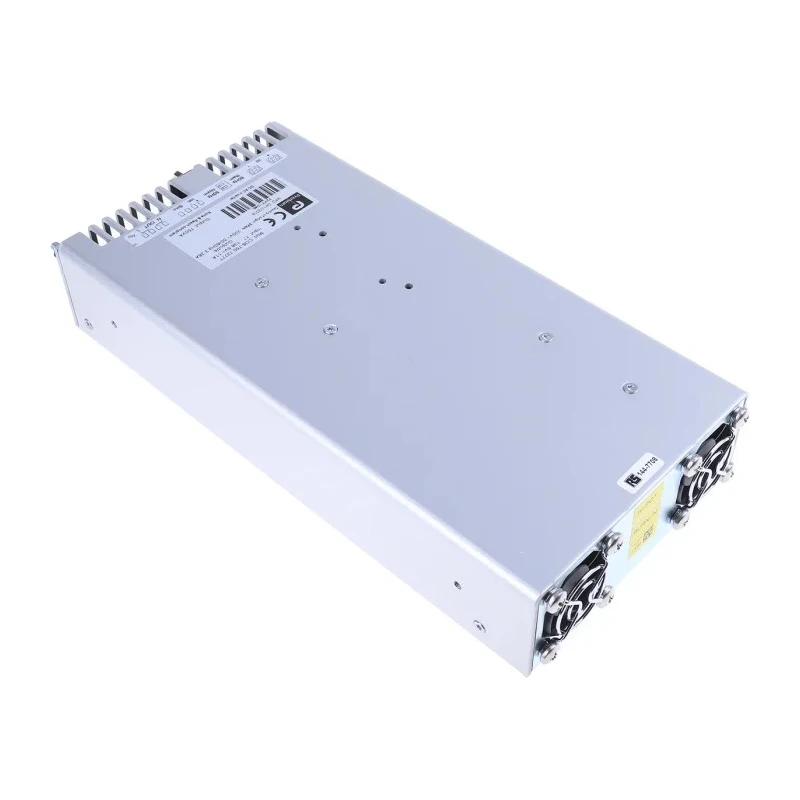

RS PRO Chassis 750W DC AC Inverter, 110V DC Input, 230V AC Output 144-7708
Specifications
| Country of Origin | Spain |
|---|---|
| Voltage | Converters / Power Inverters RS PRO Chassis 750W DC AC Inverter, 110V dc Input |
| Brand | RS PRO |
| Efficiency | 0.89% |
| Length | 270.5mm |
| Model | 144-7708 |
| Depth | 160mm |
| Gross Weight | 2kg |
| Width | 52.5mm |
| Output Power | 750W |
| Mount Type | Chassis |
| Series | RS PRO |
| Output Current | 3.26A |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 160000h |
| Protection features | Current Limit, Overload Protection, Polarity |
| Input Voltage | 110V dc |
| Output Voltage | 230V ac |
Key Features
- Chassis mounted inverter with dimensions 270.5 x 160 x 52.5 mm.
- High efficiency with a 0.89% efficiency rating.
- Durable design providing a mean time between failures of 160,000 hours.
- Equipped with current limit, overload, polarity, and power protection features.
- Operates within a temperature range of -25°C to +55°C for full load operation.
- Pure sine wave output with selectable output frequency of 50 or 60 Hz.
- Input voltage range of 77 to 138 V DC and maximum input current of 120 mA.
- Includes input and output alarms and remote inhibit capability via RS232.
Product Description
RS PRO 144-7708 chassis mount DC AC inverter offers a robust power solution with 110V DC input and 230V AC output, delivering a continuous 750W power capacity. Its chassis mount design allows for versatile installation via 10 threaded holes, facilitating easy mounting in various positions. The inverter measures 270.5mm in length, 160mm in depth, and 52.5mm in width, making it compact yet powerful.
Engineered for high reliability, it provides a mean time between failures (MTBF) of 160,000 hours. The unit features advanced protection systems including current limit, overload protection, polarity, and power safeguards to ensure operational safety. It operates efficiently with a 0.89% efficiency and includes a loading controlled cooling fan for optimal thermal management.
Performance specifications include a maximum operating temperature of 55°C at full load and a minimum operating temperature of -25°C. The inverter outputs a pure sine wave with selectable frequencies of 50 or 60 Hz, suitable for sensitive electrical equipment. Input voltage tolerance ranges from 77 to 138 V DC with a maximum input current of 120 mA.
Additional functionalities comprise input and output alarms and remote inhibit control via RS232 interface, enhancing operational monitoring and safety. The product complies with multiple stringent standards including EN 45545-2 (fire safety on railway vehicles), EN 50121-3-2, EN 50155 (railway applications), EN 62368-1 (safety), and electromagnetic immunity standard EN 61000-6-2. It is DNV GL maritime type-approved, confirming suitability for maritime and industrial environments.
This inverter is ideal for demanding industrial, railway, and maritime applications requiring reliable DC to AC conversion with high safety and performance standards. Chassis mounting with versatile threaded holes for flexible installation.
Advanced protection features for operational reliability and safety. Pure sine wave output suitable for sensitive equipment. Compliance with rigorous railway and maritime standards. Robust performance across wide temperature ranges.
Remote monitoring and control capabilities via RS232. Browse EnvMart for more high-quality RS PRO Power Inverters and industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inverter accepts an input voltage range of 77 to 138 V DC.
This model delivers a continuous output power of 750W.
The dimensions are 270.5mm in length, 160mm in depth, and 52.5mm in width.
It provides a pure sine wave output, which is suitable for sensitive electrical equipment.
The inverter operates with an efficiency of 0.89%.
It can operate within a temperature range of -25°C to +55°C at full load.
It includes current limit, overload protection, and polarity protection features.
It features a chassis mount design with 10 threaded holes for versatile installation.
The maximum input current is 120 mA.
It complies with EN 45545-2, EN 50121-3-2, EN 50155, EN 62368-1, and EN 61000-6-2 standards.
Yes, it includes remote inhibit control via an RS232 interface for operational monitoring.
The mean time between failures is 160,000 hours.
