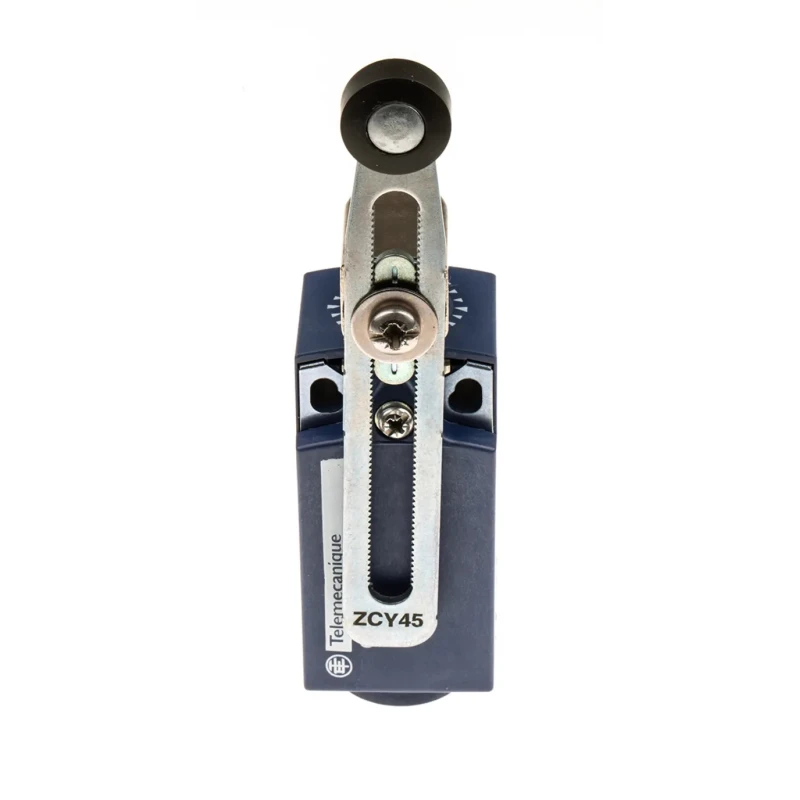

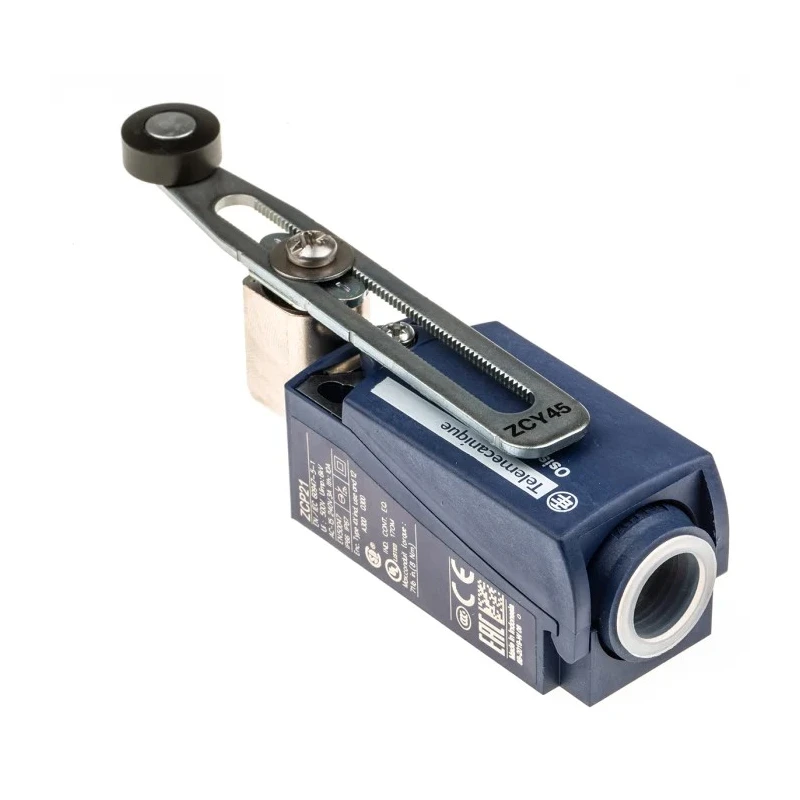

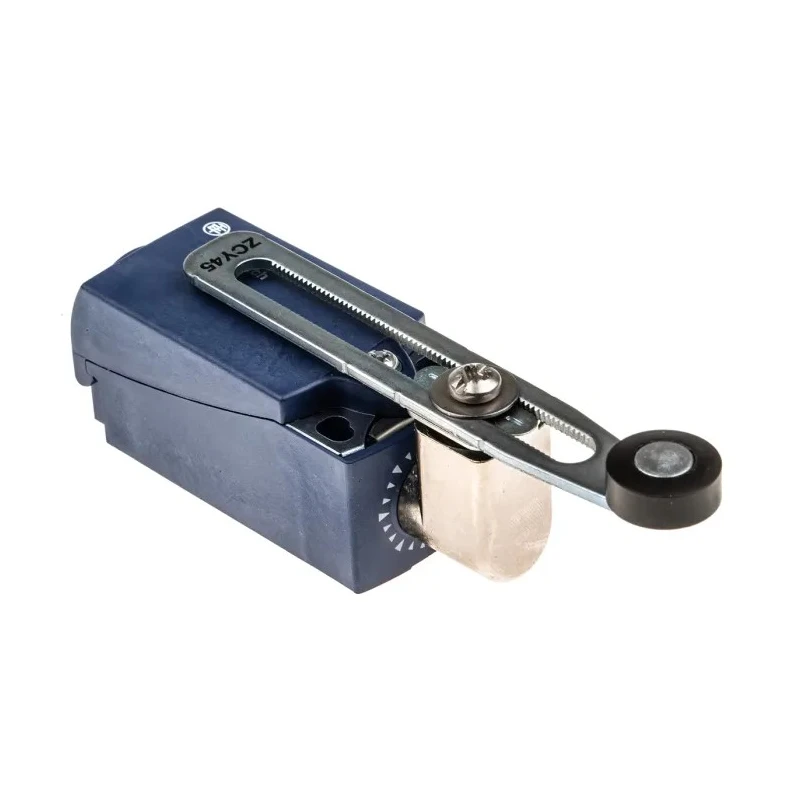

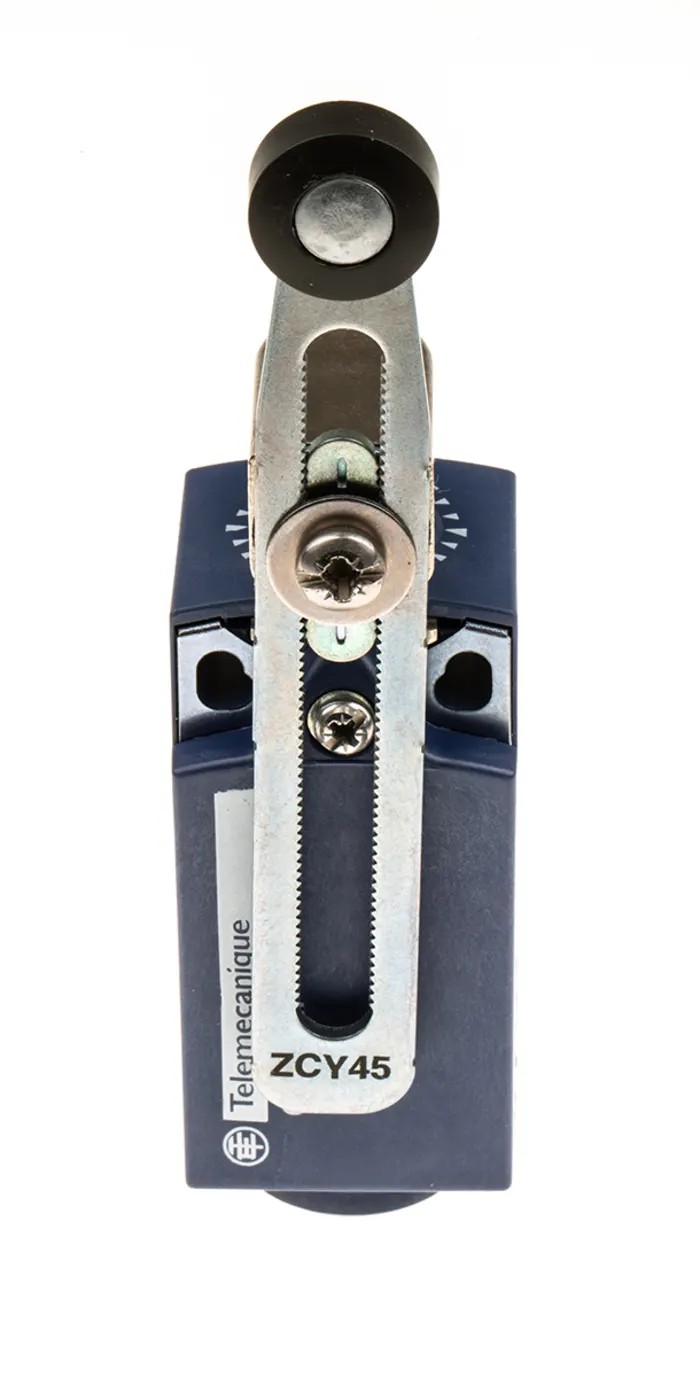

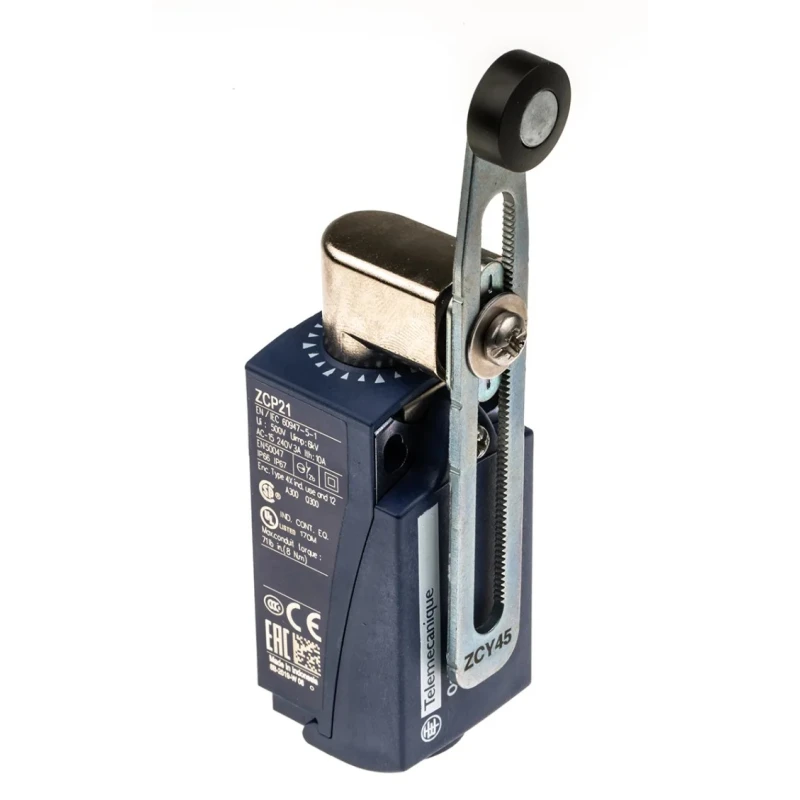

Telemecanique Sensors XCKP Series Roller Lever Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V AC, 3A XCKP2145P16

Telemecanique Sensors XCKP2145P16 Roll Lever Limit Switch is a compact electromechanical device designed to detect position changes via a roller lever actuator, providing snap-action signaling for industrial automation control systems. It features 1 normally open and 1 normally closed contacts rated for switching currents up to 3A at 240V AC, ideal for diverse control and safety applications.

This limit switch comes housed in a durable plastic enclosure that offers excellent corrosion resistance and lightweight properties. It has ingress protection ratings of IP66 and IP67, making it suitable for environments exposed to dust and water jets, including high pressure washdown situations found in manufacturing and packaging facilities.

With rated mechanical life of 10 million cycles and a low operating force of 0.25 Nm, the device ensures reliability and consistent performance. It operates efficiently across a temperature range of -25 °C to 70 °C, fitting well within industrial ambient conditions.

Mechanical dimensions of length 65 mm, width 31 mm, and depth 30 mm allow for easy integration into control panels with constrained space. Wiring connections utilize screw clamp terminals, which provide secure conductor fixation and facilitate straightforward installation. The M16 conduit entry supports standardized flexible conduit attachment for industrial cabling.

Common applications include conveyor end-of-travel detection on manufacturing lines, position sensing on packaging equipment, door interlock feedback in wet areas, and monitoring mechanical presses and actuators. The switch complies with UL, RoHS, REACH, CSA, and CCC standards, reflecting its adherence to recognized safety and environmental regulations.

Features a roller lever actuator delivering consistent operation at 0.25 Nm torque. Snap-action contact with 1 normally open and 1 normally closed configuration. Rated for 3 amp switching current at 240 volts AC in control circuits.

Robust plastic housing provides corrosion resistance and durability. Ingress protection IP66 and IP67 for resistance to dust and water, including high-pressure washdown. Compact dimensions: 65 mm length, 31 mm width, and 30 mm depth for tight panel mounting.

Mechanical life rated for 10,000,000 cycles ensuring long service life. Suitable for operation in temperatures from -25 degrees Celsius to 70 degrees Celsius. Equipped with screw clamp terminals for secure and easy wiring connections.

Includes M16 conduit entry point for control cabling installations. Explore the comprehensive range of Limit Switches and sensors at EnvMart to find products that fit your industrial automation requirements.
