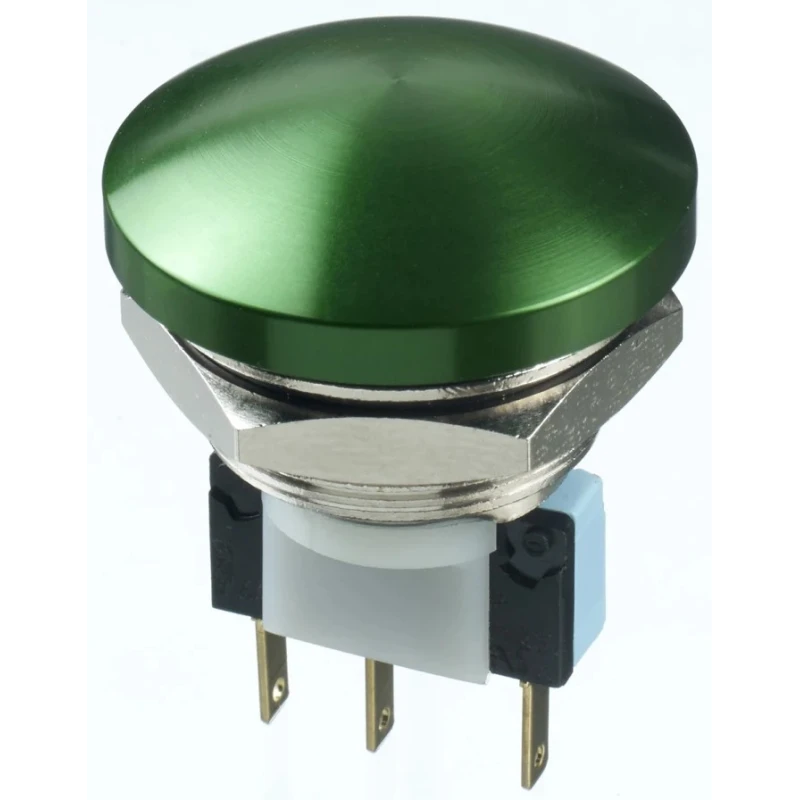

APEM AV Series Push Button Switch, Momentary Operation, Panel Mount, 22.2 mm Cutout, DPDT, IP65, 5A, 250 V AC AV22PNA3F4

The APEM AV22PNA3F4 is a high-quality push button switch from the AV Series designed for momentary operation in panel mounting applications. It features a double pole double throw (DPDT) contact configuration, enabling versatile switching functions in electrical and automation systems.

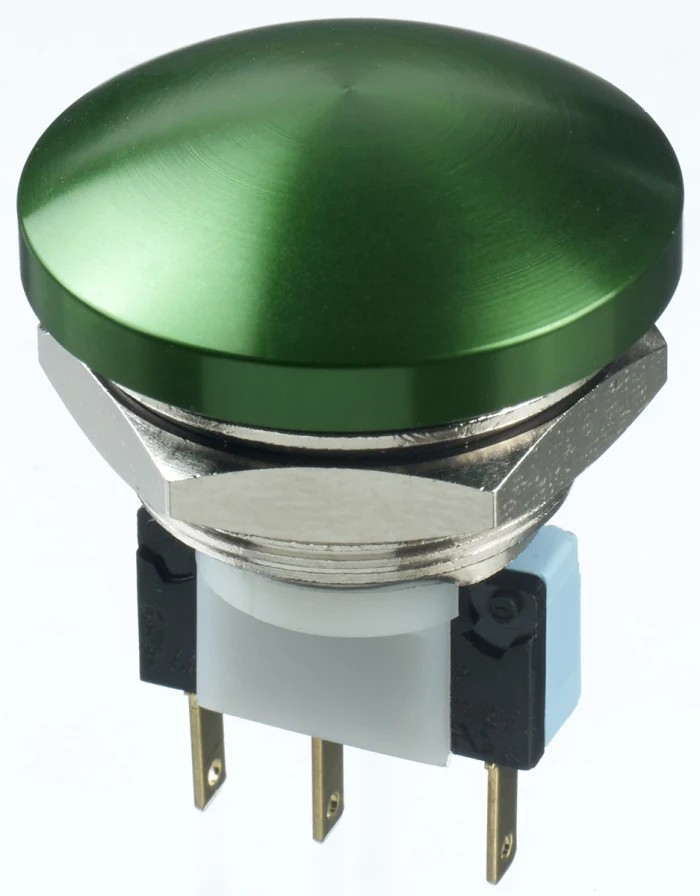

Built with a green round actuator and a robust brass, nickel-plated anodized aluminum bushing, this switch combines attractive design and durability. The 22.2 mm panel cutout provides compatibility with standard installations, and the IP65 ingress protection rating ensures reliability against dust ingress and water exposure, making it suitable for industrial and commercial environments.

The switch operates with a 5A contact current rating at 250 V AC voltage, supporting both industrial and automation electrical control applications. The quick connect terminal type allows for efficient wiring installation and maintenance. Its operational temperature range from -30°C to 70°C makes it suitable for a variety of environmental conditions.

Certified to CSA and UL standards, the APEM AV series push button switch meets stringent safety and performance specifications. It is ideal for use in electrical panels, control stations, and automation equipment where momentary switch functionality and durability are required.

The actuator is green colored and round in shape for easy identification and operation. Momentary switch operation ensures the contact is maintained only as long as the button is pressed. Robust construction using brass and aluminum materials with nickel plating and anodizing for corrosion resistance.

Quick connect terminals simplify installation and reduce wiring errors. IP65 rated to protect against dust and water jets, suitable for harsh industrial environments. Operational range from -30°C to 70°C supports diverse application environments.

Rated for 5A at 250 V AC, capable of handling typical industrial control currents and voltages. CSA and UL approvals ensure compliance with recognized safety standards.

This push button switch is especially suited for industrial, automation, electrical panel, and machinery control applications where reliable momentary switching and protection standards are necessary. Explore more Push Button Switches and components from APEM and other top manufacturers at EnvMart for your electrical system needs.
