RS PRO Diffuse Photoelectric Sensor Barrel Sensor 100 mm Detection Range NPN/PNP Output IP67 Rated IP67

RS PRO IP67 Diffuse Photoelectric Sensor Barrel Sensor, model IP67, offers reliable object detection up to 100 mm distance. Designed for automated industrial and control systems, this sensor uses diffuse detection with an infrared light source for detecting polymethyl methacrylate materials and similar objects.

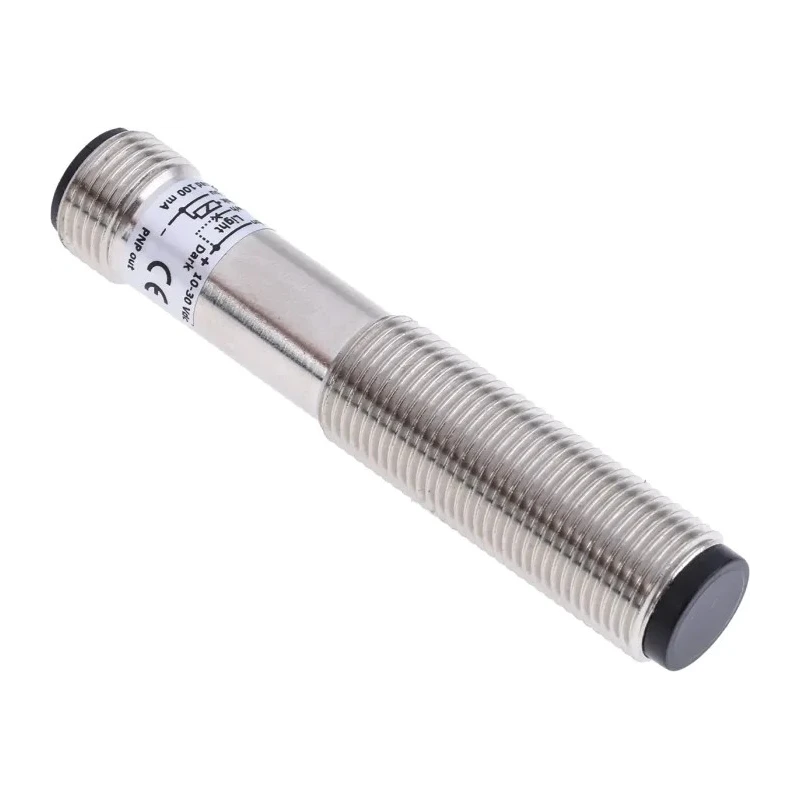

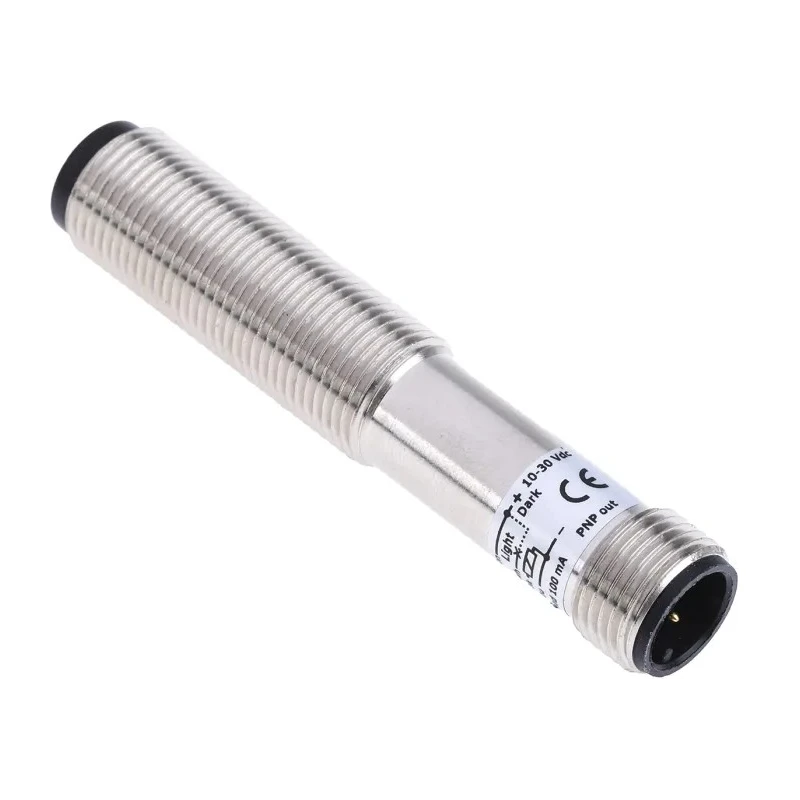

The barrel style sensor incorporates a corrosion-resistant nickel plated brass housing, ensuring robust performance in harsh industrial and automation environments. Its IP67 rating guarantees protection against dust and water ingress, suitable for laboratory, manufacturing, and environmental health & safety applications.

Equipped with dual NPN/PNP outputs and FASTON terminals, it allows flexible integration into control circuits. The sensor supports a maximum DC voltage of 30 V and maximum current of 100 mA, and operates reliably between -25 and +70 degrees Celsius. It features a fast 150 ms response time and comes with built-in reverse polarity and short-circuit protection.

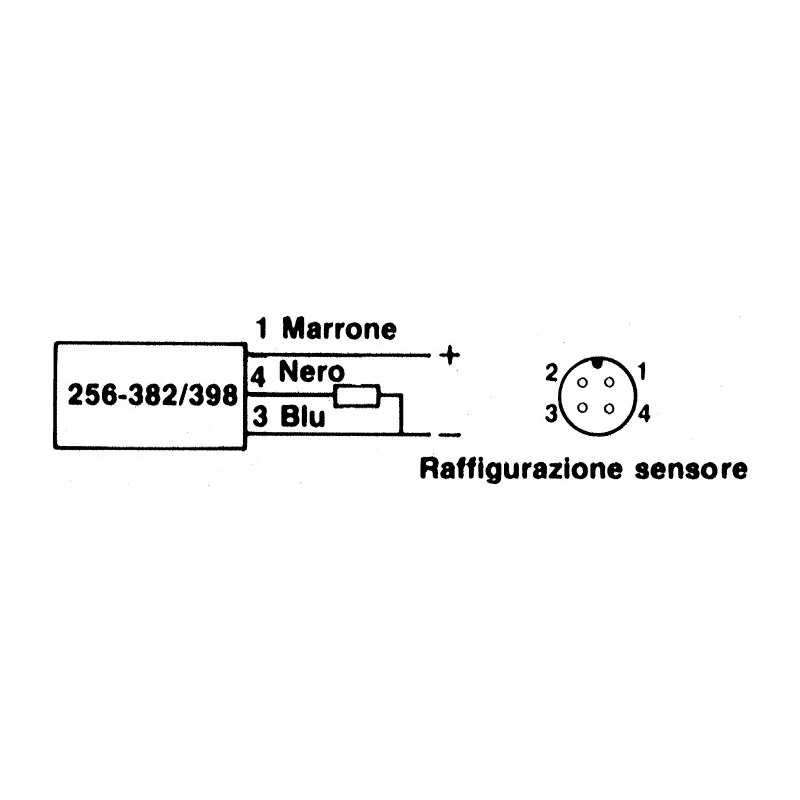

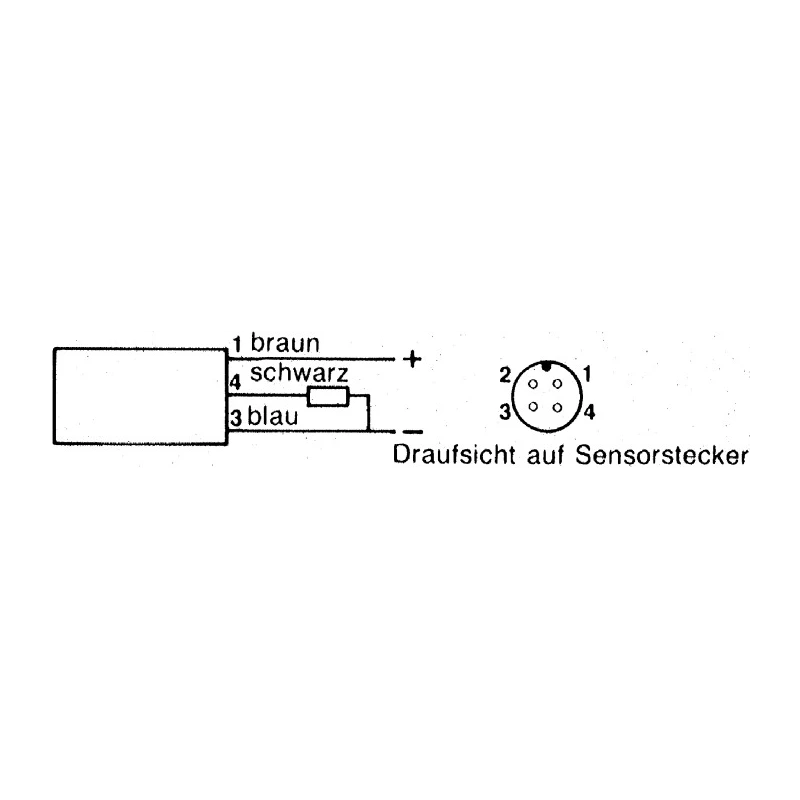

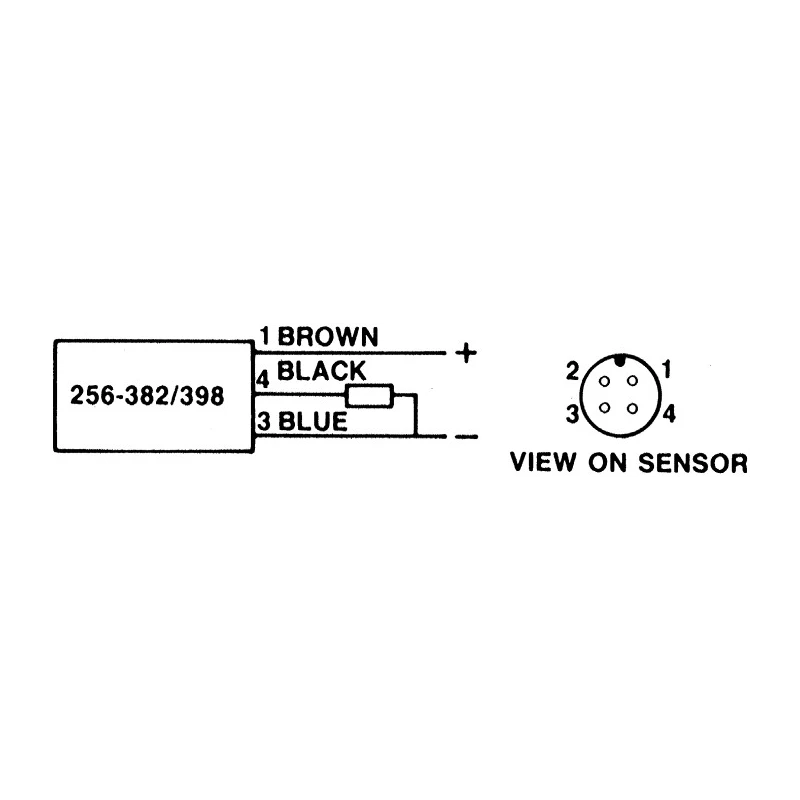

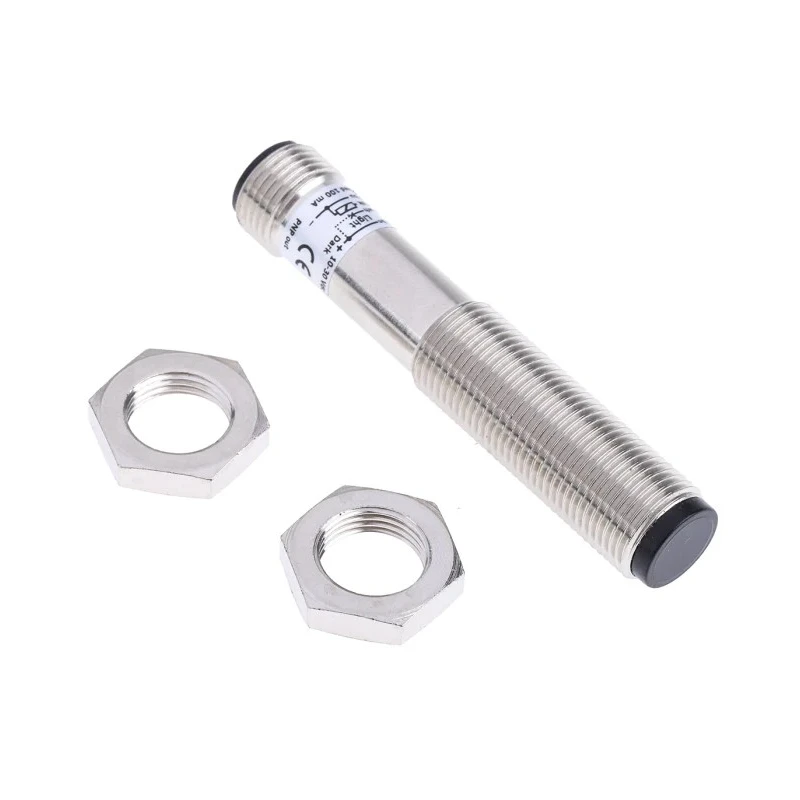

The sensor includes a 4-pin M12 connector and mounting bracket for easy installation. Dual-color LEDs and a visible red light help in alignment and status indication. Certified with CE and UL listings, it conforms to safety standards E348498 and NRKH7, as well as electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

This device is ideal for use in industrial, laboratory, manufacturing, HVAC, and automation control applications requiring precise, compact photoelectric sensing solutions. Its durable design and reliable performance make it a versatile choice for professionals.

Set contains one RS PRO Diffuse Photoelectric Barrel Sensor with mounting hardware and M12 connector. Browse more sensors and photoelectric devices within the RS PRO range at EnvMart for enhanced automation solutions. The sensor features a barrel style design for compact installation.

Provides diffuse detection type with an infrared light source for versatile sensing. Equipped with NPN/PNP output and FASTON terminals ensuring compatibility. Maximum DC voltage rating of 30 V and current rating of 100 mA guarantees reliable performance.

The housing is corrosion-resistant nickel plated brass with IP67 protection against dust and water ingress. Operates effectively within a temperature range from -25°C to +70°C for durability in varied environments. Response time of 150 ms ensures swift detection in automation applications.

Includes built-in short-circuit and reverse polarity protection for enhanced safety. Protected by CE and UL certifications and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic standards.
