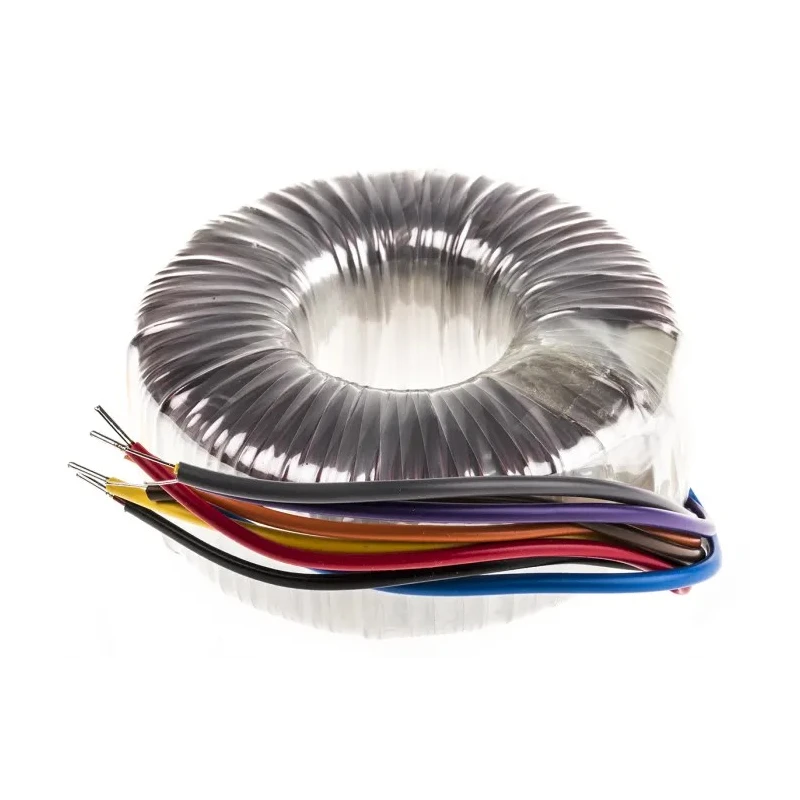

Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 18 V AC Secondary, 225 VA, 2 Output 92428-P2S2

The Nuvotem Talema 92428-P2S2 Toroidal Transformer is a high-quality electrical component designed for efficient power conversion in electronics and electrical systems. Featuring a 230 V AC primary input, it provides two separate 18 V AC secondary outputs, each delivering a secondary current of 6.3 A with a total power rating of 225 VA. This makes it suitable for various industrial, laboratory, electrical, and HVAC applications where reliable step-down voltage transformation is required.

Its open-style toroidal design minimizes electromagnetic interference and induced noise, resulting in quieter operation compared to traditional stacked lamination transformers. The transformer is compact with a diameter of 112 mm and height of 47 mm, making it ideal for installations with space constraints.

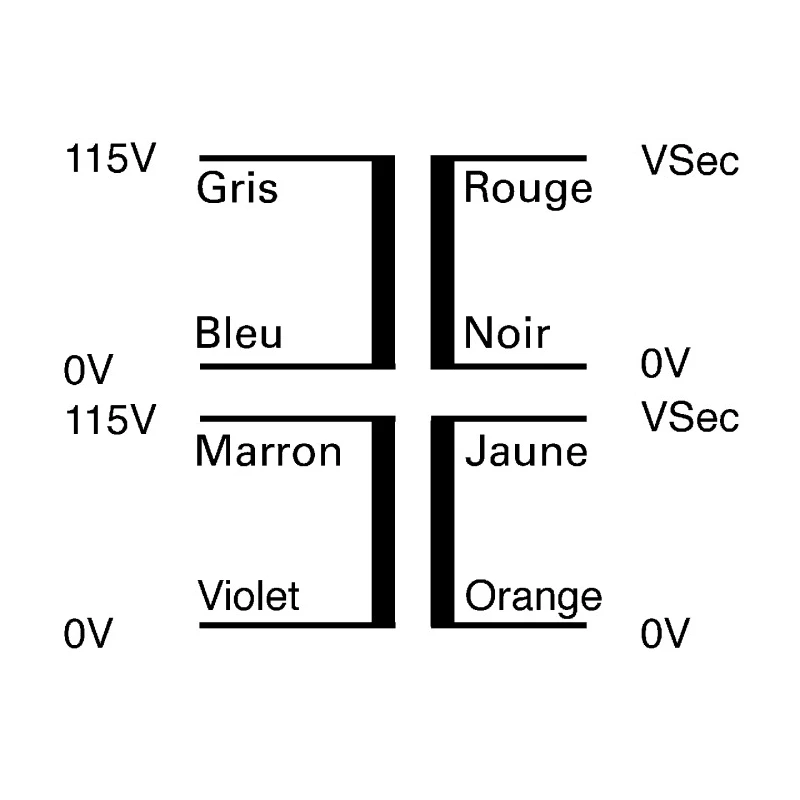

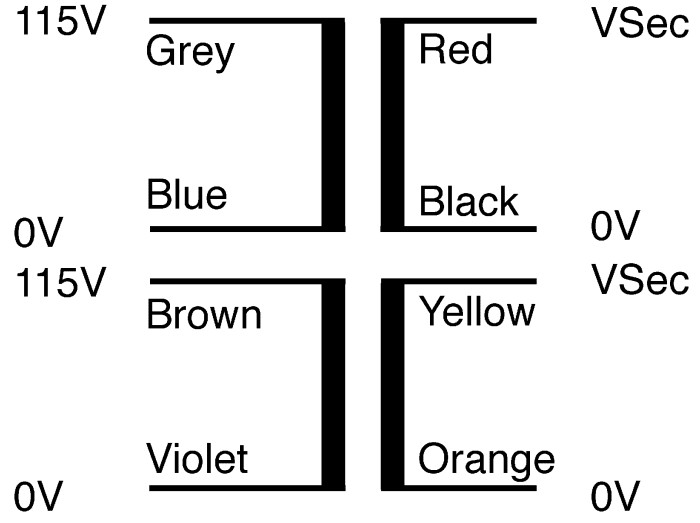

The device operates efficiently within a frequency range of 50 Hz to 60 Hz and can withstand maximum operating temperatures up to 40°C. Its winding configuration consists of a single primary winding with twin secondary windings that can be connected in series or parallel depending on application needs. Termination is via lead wires ensuring straightforward electrical connectivity.

Compliant with RoHS, EN61558, EN60950, and UL506 standards, the transformer meets stringent safety and environmental requirements. It is double insulated and comes supplied with a full mounting kit for secure installation.

Operates on 230 V AC primary voltage. Provides two 18 V AC secondary outputs. Rated for 225 VA power capacity. Low electromagnetic interference with an open toroid centre. Compact size: 112 mm diameter, 47 mm height. Termination via lead wires for easy installation.

Temperature rating up to 40°C for safe operation. Fully RoHS compliant and UL certified. Includes full mounting kit for convenience.

This transformer is ideal for electrical and electronic equipment manufacturers, HVAC systems, industrial automation, and laboratory instruments requiring stable and noise-minimized power conversion. For additional product selection, explore the Transformers category at EnvMart.
