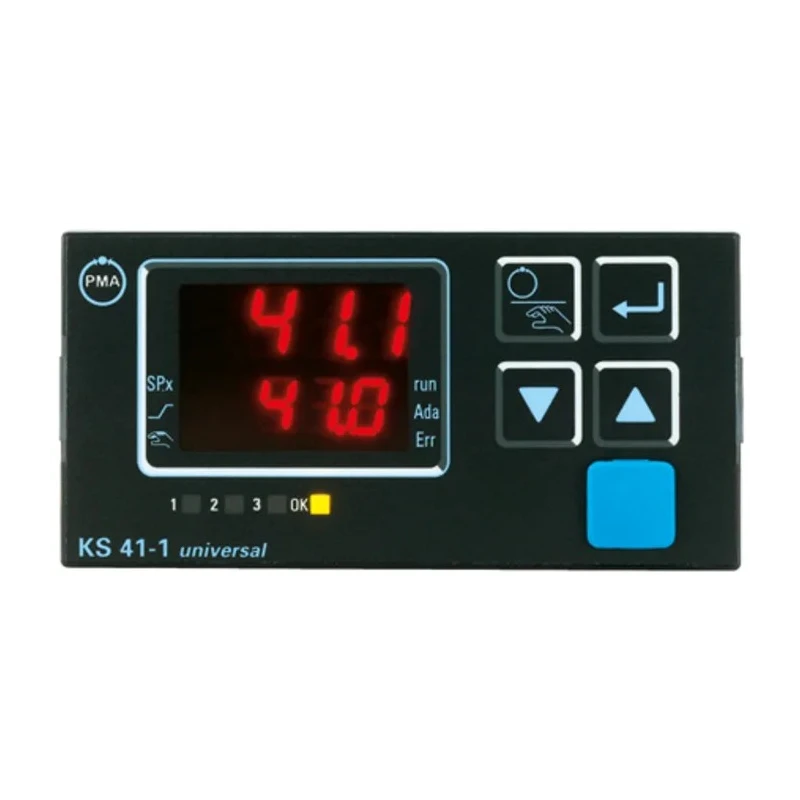

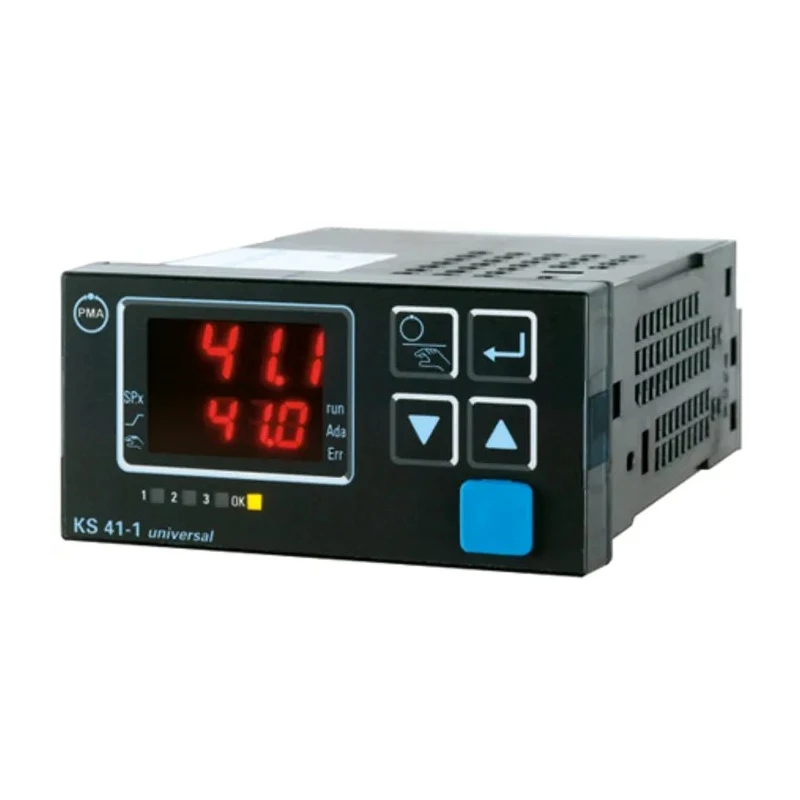

P.M.A KS41 Panel PID Temperature Controller, 3 Output Voltage (0/2 to 10 V), 0 to 20 mA, 12 V, Current (0/4 to 20 mA) KS41

P.M.A KS41 Panel PID Temperature Controller KS41 is a versatile and precise industrial temperature control device designed for use in various sectors including manufacturing, process control, and automation. It features three process outputs that can be configured as relays or as a combination of relays and universal outputs delivering voltage and current signals.

This controller supports universal inputs including voltage, thermocouple, and current, allowing flexibility in sensor integration. Its PID control capabilities include simple 2-point on/off control, continuous PID regulation, and 3-point stepping control which optimize temperature accuracy and process stability.

The device includes a user-friendly LED display enabling operators to monitor setpoints and process values effectively. Communication is facilitated through RS422, RS485, and Modbus RTU, enabling integration with modern industrial networks.

Operational temperature spans from -20°C to 65°C, making it suitable for harsh industrial environments. Its three outputs comprise voltage (0/2 to 10 V), current (0/4 to 20 mA), and relay outputs rated at 250 V/2 A ensuring compatibility across multiple applications.

Advanced diagnostic functions like maintenance manager, error list, self-tuning, and alarm handling enhance reliability and uptime. The controller also features a BluePort front interface and accompanying BlueControl software for advanced parameter configuration.

Mounting is panel type with dimensions of 96mm width and 118mm panel depth. The device is CE certified and IP rated as IP00, IP20, and IP65, ensuring protection in various installation conditions.

Applications encompass furnaces, ovens, burners, boilers, plastics processing, and dryers, delivering cost-effective and high-performance temperature control solutions across industries.

Category and brand browsing at EnvMart provide further options to explore temperature controllers and related automation components. Equipped with 3 outputs including voltage (0/2 to 10 V) and current (0/4 to 20 mA) signals.

Supports PID control with 2-point and continuous modes for accurate temperature management. Panel mount with dimensions of 96mm width and 118mm panel depth. LED display for clear visual feedback during operation. Operates within temperature range of -20°C to 65°C, suitable for industrial environments.

Includes digital communications via RS422, RS485, and Modbus RTU protocols. Features diagnostic tools such as maintenance manager, error list, self-tuning, and alarm handling. Designed to offer 250V AC maximum supply voltage with relay outputs rated 250V/2A.

Complies with CE standards and has multiple IP ratings: IP00, IP20, and IP65. Explore the P.M.A brand and KS41 model category for precise and reliable industrial Temperature Controllers at EnvMart.
