Crouzet Clockwise 0.42W 1 Phase 10-Pole Synchronous AC Motor 230V Fixing Hole Mounting 82330582

Free Delivery in India | Lowest Global Shipping Charges

Crouzet Clockwise 0.42W 1 Phase 10-Pole Synchronous AC Motor 230V Fixing Hole Mounting 82330582

Name: Crouzet Clockwise 0.42W 1 Phase 10-Pole Synchronous AC Motor 230V Fixing Hole Mounting 82330582
Brand: CROUZET
SKU: 330148
Price: 98 USD
Availability: InStock



Category AC Motor Brand CROUZET Condition New

Specifications

Country of Origin	France
Brand	Crouzet
Material	Steel
Length	22.9mm
Model	82330582
Depth	22.9mm
Width	22.9mm
Mount Type	Fixing Hole
Rotation	Clockwise
Series	820000
Power Rating	0.42W
Sub Type	Synchronous
Output Speed	600rpm
Shaft Diameter	1.96mm
Shaft Length	7.6mm
Number of Phases	1
Supply Voltage	230V
Number of Poles	10
Standards/Approvals	RoHS
Maximum Output Torque	8mNm

Key Features

The motor features a clockwise rotation with steady positioning due to a mechanical non-return system.
Compact dimensions of 22.9mm width, depth, and length provide versatile mounting options.
Steel construction ensures durability with a shaft diameter of 1.96mm and length of 7.6mm.
Operates at an output speed of 600 rpm, delivering a maximum torque of 8 mNm.
The motor mounts via fixing holes for secure installation in various devices.
Designed primarily for integration in programmers, mixers, medical devices, advertising equipment, and recorders.
Compliance with RoHS standards guarantees environmental safety and regulatory adherence.
Manufactured in France, assuring quality and reliability in industrial use.

Product Description

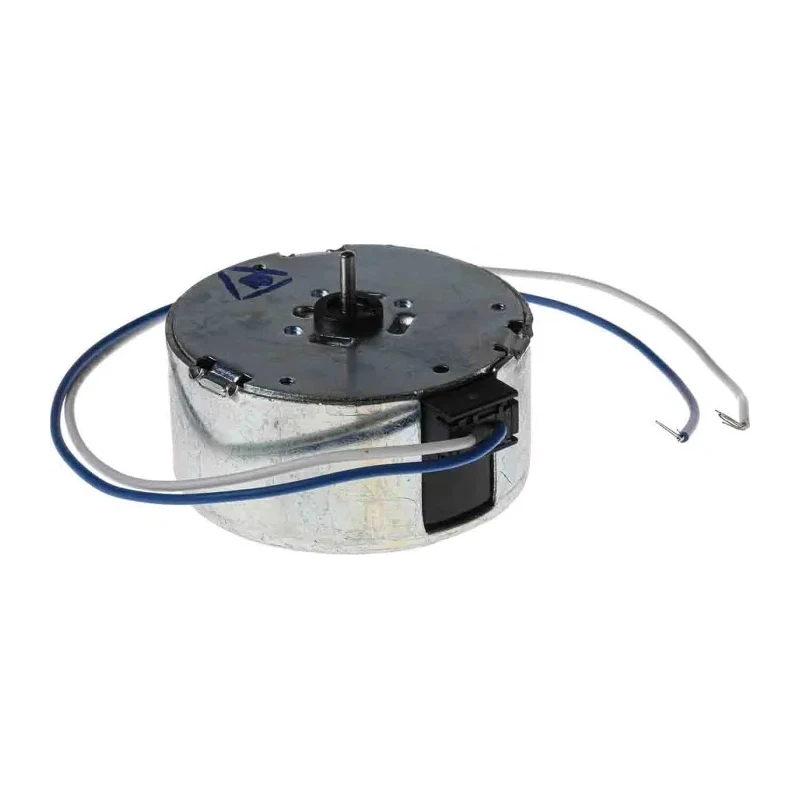

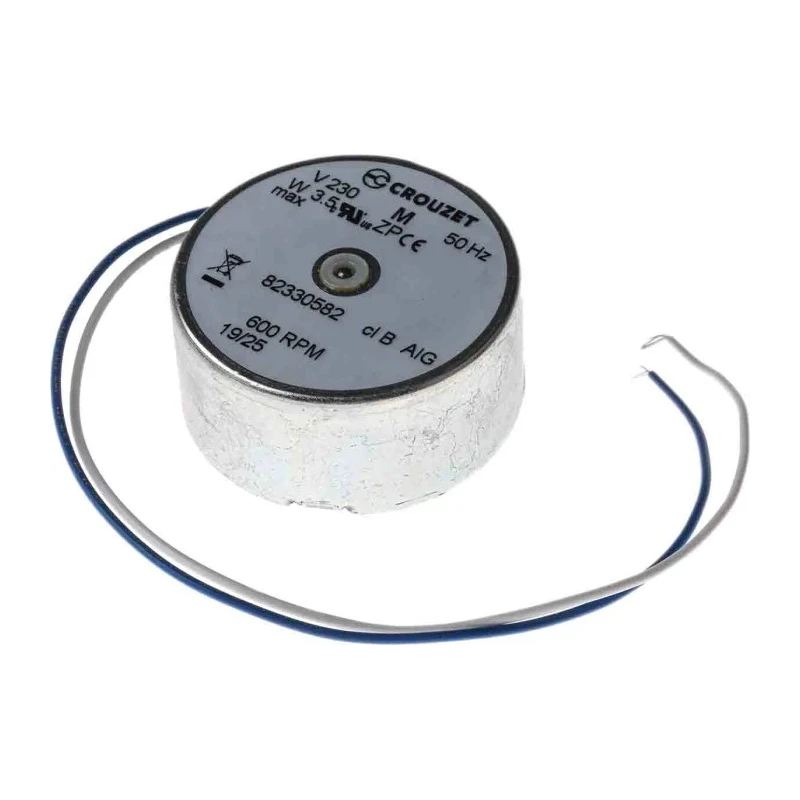

Crouzet 82330582 is a clockwise rotating AC synchronous motor rated at 0.42 W, operating on a single phase with a 10-pole design and 230V supply voltage. This motor is engineered for direct driving from an AC supply, ideally suited for time driving applications in instrumentation, machinery, and process control.

The motor features a mechanical non-return system to maintain stable positioning during operation, making it suitable for precision uses such as in programmers, mixers, medical devices, advertising devices, and recorders. Its compact dimensions of 22.9mm width, depth, and length, combined with a steel construction, provide robustness and versatility.

The shaft has a diameter of 1.96mm and length of 7.6mm, ensuring compatibility with a variety of mechanical interfaces. Operating at 600 rpm output speed, it delivers a maximum output torque of 8 mNm, supporting consistent performance in demanding environments.

Mounting is facilitated by fixing hole mounts, providing secure and reliable installation in equipment. The motor's design prioritizes longevity and compliance, adhering to RoHS standards for environmental considerations.

Manufactured in France, the Crouzet 82330582 motor offers industrial-grade quality and dependability for various automation and control applications. The motor ensures stable, unidirectional clockwise rotation backed by a mechanical non-return system.

Compact and durable steel body with precise shaft dimensions enhances mechanical integration. Output speed of 600 rpm and maximum torque of 8 mNm enable effective device operation. Fixing hole mounting supports easy installation in electronic and industrial equipment.

RoHS certification confirms adherence to environmental and safety standards. Suitable for instrumentation, machine and process control, and medical device applications. Manufactured in France, ensuring high production quality and reliability.
