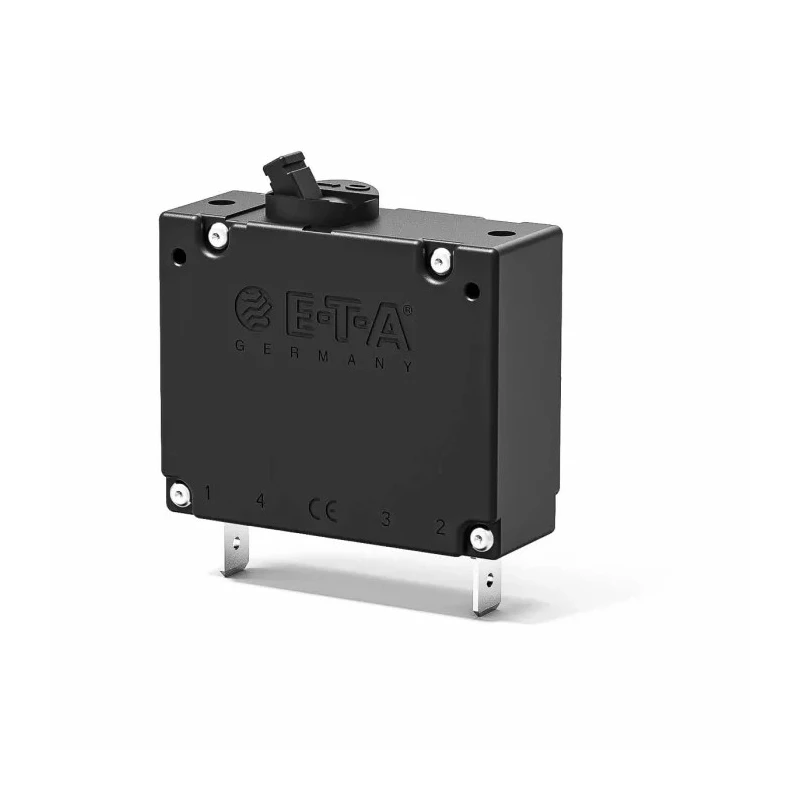

ETA Magnetic and Hydraulic-Magnetic Thermal Circuit Breaker 25A 1-Pole Flange Mount 415V AC 80V DC 8340-F410-P1M1-A3H0-25A

ETA 8340-F410-P1M1-A3H0-25A Thermal Circuit Breaker is a magnetic and hydraulic-magnetic type circuit breaker with a rated current of 25A and a single pole design, equipped with a flange mount for panel installation. It incorporates a trip free snap action mechanism with toggle switch actuation to provide reliable overcurrent protection. This thermal breaker is designed with industry standard dimensions, measuring 66mm in height, 54mm in depth, and 19mm in width to fit most control equipment cubicles and communication systems.

Rated for up to 415V AC and 80V DC, it is capable of handling high breaking capacity of 1200A, making it suitable for demanding industrial environments such as power supplies, transportation (including rail systems), and communication equipment. The device complies with multiple international standards including IEC, BV, EN, UL, CSA, and VDE, ensuring universal quality and safety certifications.

The breaker uses blade type terminals for secure wiring connections and features magnetic tripping for precise operation on overload conditions. It offers medium delay timing suitable for a wide range of applications where overcurrent protection is critical. With insulation resistance exceeding 100 megaohms, the device guarantees safety and operational reliability.

These circuit breakers are designed specifically for equipment and control systems and should not be confused with larger miniature circuit breakers intended for distribution wiring protection. The 8340 series magnetic hydraulic thermal circuit breakers are recognized for their durability and compliance with industry expectations.

Provides 25A current rating suitable for control equipment and power supplies. 1-pole design with flange mount and M4 mount hole for secure panel installation. Magnetic tripping mechanism ensures reliable operation with reset via toggle switch.

IEC, BV, EN, UL, CSA, and VDE approved standards ensure broad compliance. Rated AC voltage is 415V AC and rated DC voltage up to 80V DC for versatile applications. Breaking capacity of 1200A provides high fault current interruption capability.

Industry standard dimensions: 66mm height, 54mm depth, 19mm width. Blade terminals offer secure electrical connection with insulation resistance greater than 100MΩ. Ideal for industrial use in communication, transportation (rail), and control systems.
