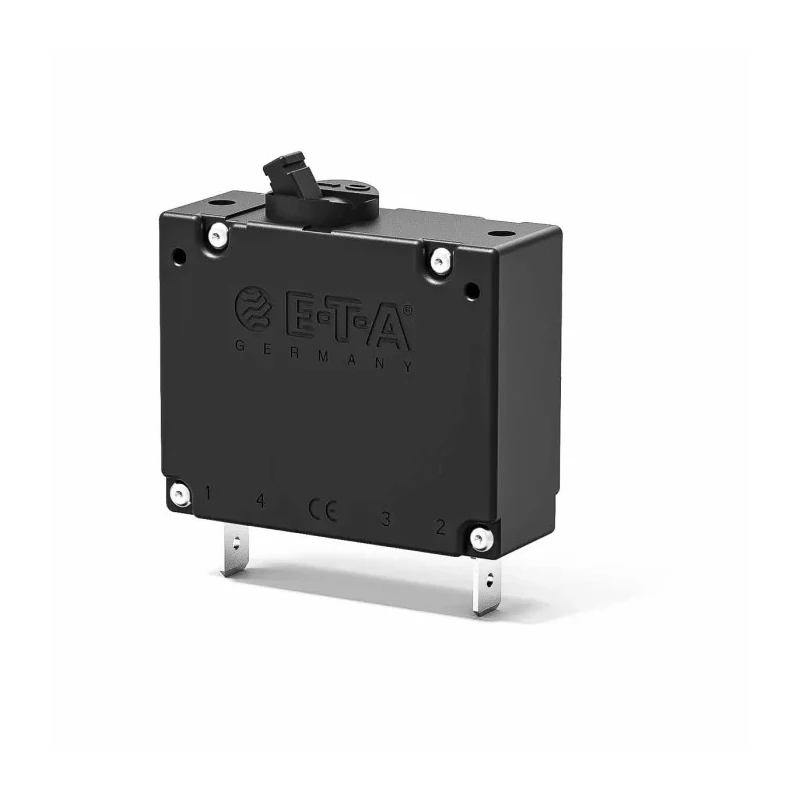

ETA Magnetic and Hydraulic-Magnetic Thermal Circuit Breaker 2.5A Current Rating 1-Pole Flange Mount 8340-F410-P1M1-A3H0-2.5A
Specifications
| Country of Origin | Germany |
|---|---|
| Range | Magnetic and Hydraulic-Magnetic Circuit Breaker |
| Brand | ETA |
| Height | 66mm |
| Model | 8340-F410-P1M1-A3H0-2.5A |
| Depth | 54mm |
| Width | 19mm |
| Mount Type | Flange |
| Current Rating | 2.5A |
| Series | 8340 |
| Terminal type | Blade |
| Breaking Capacity | 1200A |
| Number of Poles | 1 |
| Standards/Approvals | EN, VDE, BV, CSA, UL, IEC |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 80V dc |
| Tripping Mechanism | Magnetic |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | M4 |
Key Features
- Designed for panel mounting with flange attachment and M4 mount holes.
- Featuring a toggle switch reset actuator and blade terminal type.
- Compact dimensions of 66mm height, 54mm depth, and 19mm width.
- Rated for 415V AC and 80V DC operation with 2.5A current rating.
- Breaking capacity of 1200A with compliance to EN, VDE, BV, CSA, UL, and IEC standards.
- Magnetic trip-free snap action mechanism providing medium delay.
- Suitable for control equipment, communication systems, transportation, and power supplies.
- IEC classification S/HMT thermal magnetic convertible design.
Product Description
ETA 8340-F410-P1M1-A3H0-2.5A thermal circuit breaker is a single-pole magnetic and hydraulic-magnetic device designed for panel mounting with flange attachment and a toggle switch actuator. It offers a rated AC voltage of 415V and a rated DC voltage up to 80V, making it versatile for both AC and DC circuit protection.
This circuit breaker features a snap action trip-free magnetic mechanism with medium delay, suitable for applications requiring precise overcurrent protection in control panels, communication systems, transportation such as rail applications, and power supply units. The breaker complies with international standards including EN, VDE, BV, CSA, UL, and IEC, ensuring safety and reliability for industrial and commercial installations.
Its physical dimensions are 66mm in height, 54mm in depth, and 19mm in width, fitting industry standard panels. The flange mount comes with M4 sized mounting holes, and blade terminals provide secure and easy electrical connections. The unit has a breaking capacity of 1200A, offering robust protection against overload and short circuits.
The thermal magnetic convertible design complies with IEC classification S/HMT and guarantees insulation resistance greater than 100MΩ, contributing to stable operation and durability under demanding conditions. This product is manufactured in Germany, supporting high-quality manufacturing standards and long operational life.
Panel mounting magnetic circuit breaker with flange and toggle switch reset. Rated for 2.5A current, suitable for sensitive control and power circuits. Compact size fitting industry standard dimensions. Breaking capacity of 1200A for reliable fault interruption.
Compliant with multiple international safety standards. Applicable in industrial, laboratory, HVAC, transportation, and manufacturing contexts. High insulation resistance ensuring operational reliability. Manufactured in Germany with quality assurance.
This ETA Thermal Circuit Breaker combines magnetic and hydraulic-magnetic tripping mechanisms for medium delay protection, ideal for industrial and commercial electrical safety needs. It is a dependable choice for monitoring and protecting electrical equipment and systems.
Explore more circuit protection devices and advanced industrial electrical components in EnvMart’s Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this thermal circuit breaker is 2.5A.
This model has dimensions of 66mm in height, 54mm in depth, and 19mm in width.
It has a breaking capacity of 1200A, providing robust protection against overload and short circuits.
It features a flange mount with M4 sized mounting holes for installation.
The rated AC voltage is 415V and the rated DC voltage is 80V.
It utilizes a magnetic trip-free snap action mechanism with medium delay.
It complies with several international standards including EN, VDE, BV, CSA, UL, and IEC.
This unit features blade terminals for secure electrical connections.
It is suitable for control equipment, communication systems, transportation, and power supplies.
The reset actuator type is a toggle switch.
It is manufactured in Germany, supporting high-quality manufacturing standards.
The series designation for this model is 8340.
