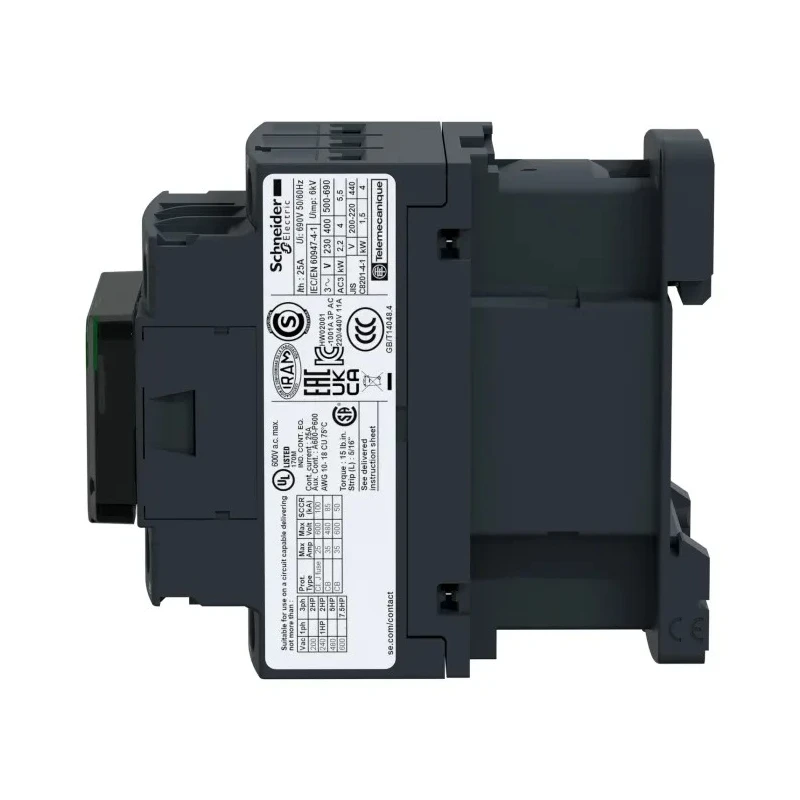

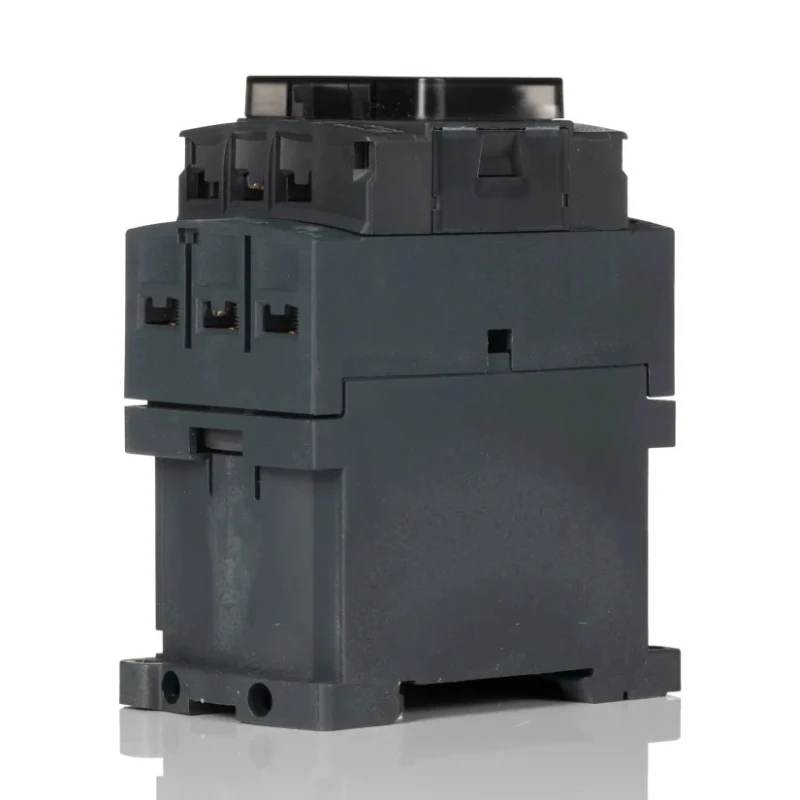

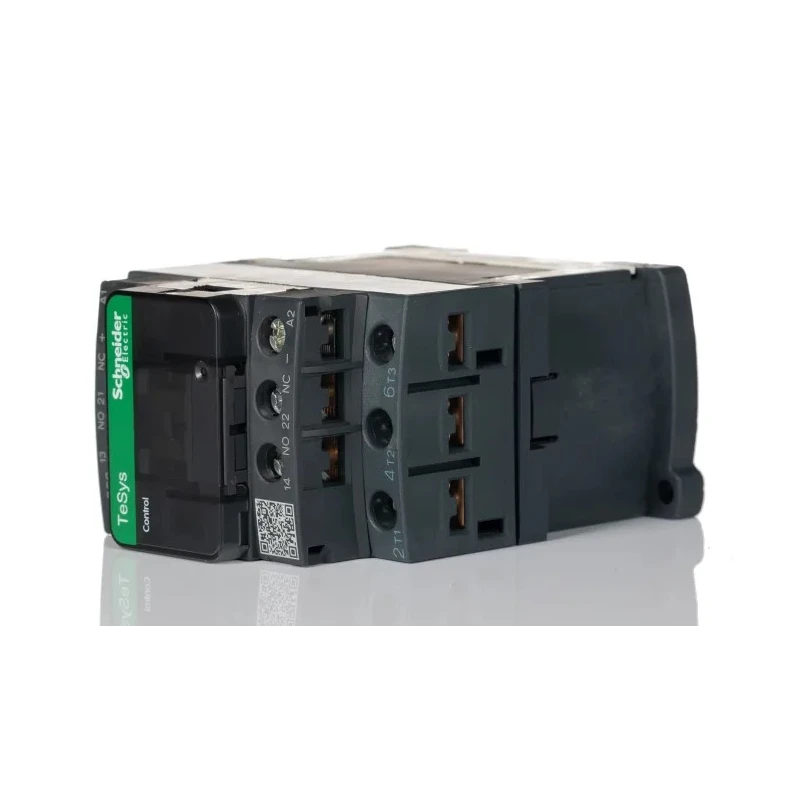

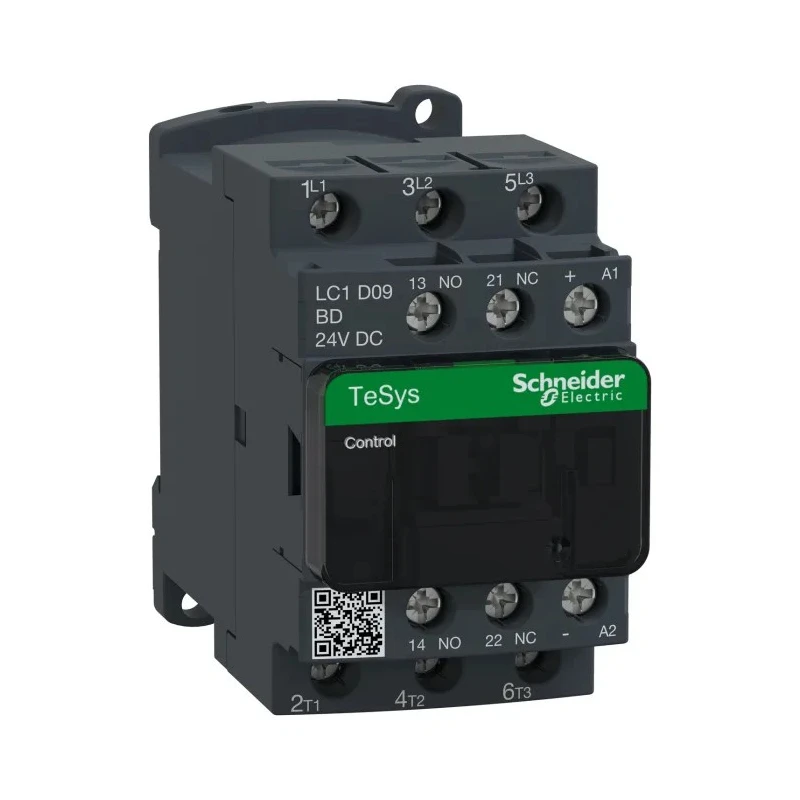

Schneider Electric Motor Control Contactor, 24V DC Coil, 3-Pole, 9A, 4kW, 690V AC LC1D
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Supports up to 9A contact current for versatile applications.
- Rated for 690V AC contact voltage ensuring heavy-duty performance.
- Power rating of 4kW accommodates various resistive and motor loads.
- Features 3 normally open (NO) contacts optimized for efficiency.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Equipped with screw type terminals for secure wiring connections.
- Mounts easily on DIN rails facilitating straightforward installation.
- Operational temperature range from -40°C to 60°C ensures reliability in diverse environments.
Product Description
Schneider Electric LC1D09BD motor control contactor offers a high-performance solution for industrial applications requiring reliable motor and resistive load control. Operating with a 24V DC coil voltage, this contactor supports a contact current of 9A and contact voltage rating of 690V AC, making it well-suited for demanding electrical systems.
The 3-pole configuration with 3 normally open contacts ensures efficient and safe switching capabilities. Its auxiliary contact arrangement includes one normally open and one normally closed contact, expanding its functionality within control circuits. Designed for DIN rail mounting, the device simplifies installation processes while screw terminals provide secure electrical connections.
Built to withstand harsh industrial conditions, the contactor functions effectively within a temperature range of -40°C to 60°C and exhibits strong resistance to vibrations and mechanical shocks. Its compact form factor - 77mm length, 45mm width, and 95mm depth - allows integration within tight panel spaces.
Applications include motor control in industrial machinery, managing resistive loads, automation tasks within manufacturing processes, and complex control circuits requiring modular and reliable components. The high rated insulation voltage of 690V AC ensures safety and stability under electrical stress conditions.
Schneider Electric’s dedication to sustainability is reflected in this Better World product, designed for disassembly, supporting environmental responsibility in industrial automation.
Supports up to 9A contact current for versatile applications. Rated for 690V AC contact voltage ensuring heavy-duty performance. Power rating of 4kW accommodates various resistive and motor loads. Includes auxiliary contacts for expanded control options.
DIN rail mount design simplifies installation. Robust resistance to vibration and mechanical shock. Operates reliably between -40°C and 60°C ambient temperatures. Compact dimensions suit industrial control panels. Designed for disassembly promoting sustainability.
This contactor is ideal for industrial, manufacturing, electrical automation, and HVAC applications, enhancing system performance and reliability. For more industrial automation and control gear solutions, browse the Schneider Electric category on EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor supports a contact current of up to 9A, making it suitable for various applications.
It has a power rating of 4kW, accommodating both resistive and motor loads.
This contactor is rated for a maximum contact voltage of 690V AC, ensuring heavy-duty performance.
The LC1D09BD features a 3-pole configuration with 3 normally open contacts.
It is equipped with screw type terminals for secure wiring connections.
This model operates reliably within a temperature range of -40°C to 60°C.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The contactor is designed for DIN rail mounting, which simplifies installation processes.
It complies with several standards including UL, RoHS, IEC, EAC, CSA, and CCC.
This contactor is ideal for motor control in industrial machinery, managing resistive loads, and automation tasks within manufacturing processes.
The dimensions are 77mm in length, 45mm in width, and 95mm in depth, allowing for compact installation in control panels.
It operates with a coil voltage of 24V DC, suitable for various control circuits.
