Eaton 3-Pole Surface Mount Isolator Switch IP65, 520A, 13 kW

Eaton 222554 T5B-3-7/I4 3-Pole Surface Mount Isolator Switch with IP65 rating offers robust safety and electrical isolation for industrial and commercial electrical installations. Rated for 520A switching current and 13 kW switching power, this isolator switch is suitable for three-phase electrical systems requiring effective control and disconnection capabilities.

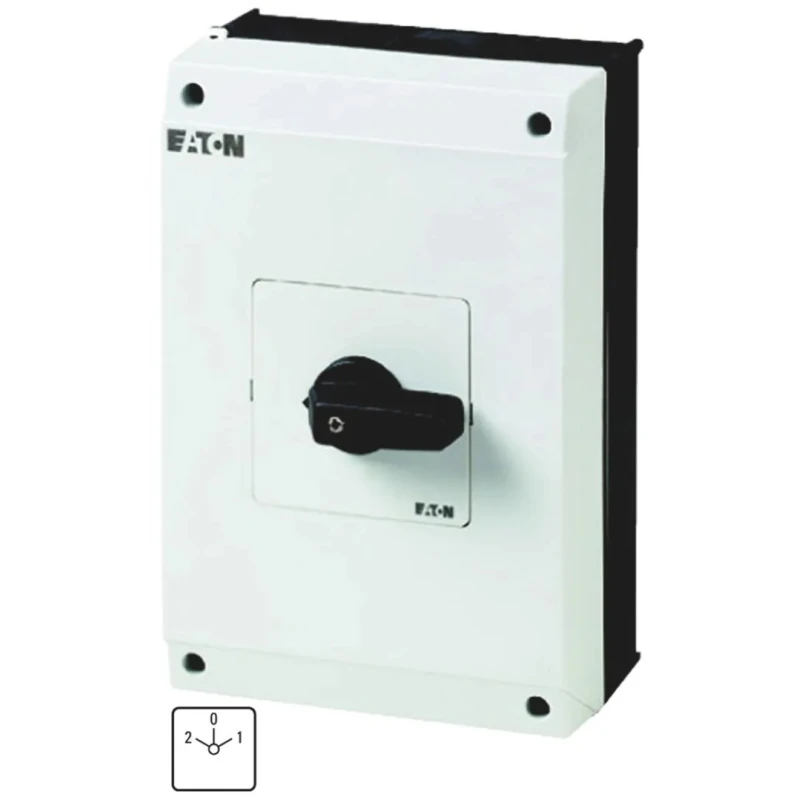

The device features a surface mount design with a totally insulated enclosure providing protection to IP65 standards against dust ingress and water, making it ideal for harsh environments. The black thumb grip handle provides ergonomic manual operation, while the grey front plate ensures durability. It is engineered to function reliably within ambient temperatures ranging from -25°C to +40°C.

Equipped with screw terminals, the switch ensures secure and reliable electrical connections. This isolator is intended for AC voltage up to 230V and DC voltage up to 240V, supporting stringent industrial applications. The series T5B switch complies with relevant international standards including UL, IEC, and CSA certifications ensuring high quality and safe usage.

This 3-pole isolator switch is designed without auxiliary contacts and padlock compatibility, emphasizing a straightforward rotary switch operation with two or three positions. The switch’s compact depth of 16.5 mm facilitates easy integration in control panels and electrical enclosures.

Ideal for industries such as manufacturing, commercial buildings, electrical installations, and HVAC systems requiring reliable circuit isolation with ingress protection. Eaton's expertise in electrical components ensures performance, safety, and longevity in demanding environments.

Designed for surface mounting providing robust and easy installation. Equipped with black colored handle for easy operation. Compatible with industrial AC/DC applications up to 230V AC and 240V DC. Constructed to operate in temperatures ranging from -25°C to 40°C.

Features screw terminal type for secure electrical connections. Meets UL, IEC, and CSA standards ensuring quality and safety. Totally insulated enclosure providing IP65 ingress protection against dust and water. Supports 3 electrical poles for three-phase electrical isolation.

Compact depth of 16.5mm enables space-saving installations. Auxiliary contacts are not available with this model.

Explore the extensive range of Eaton Isolator Switches on EnvMart for your industrial and commercial electrical requirements. Technical documents and 3D models are available to support integration and design.
