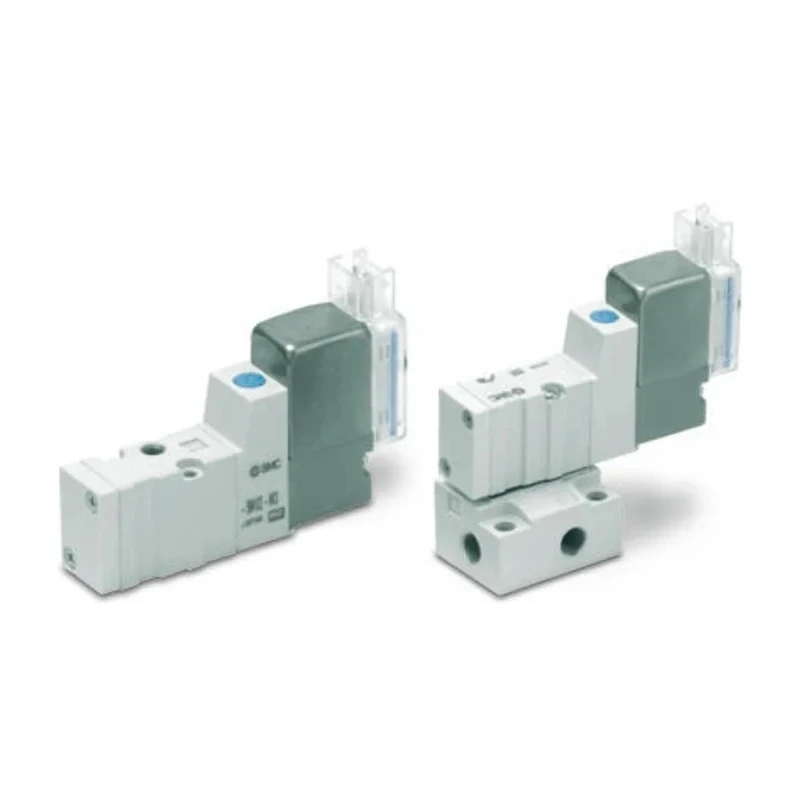

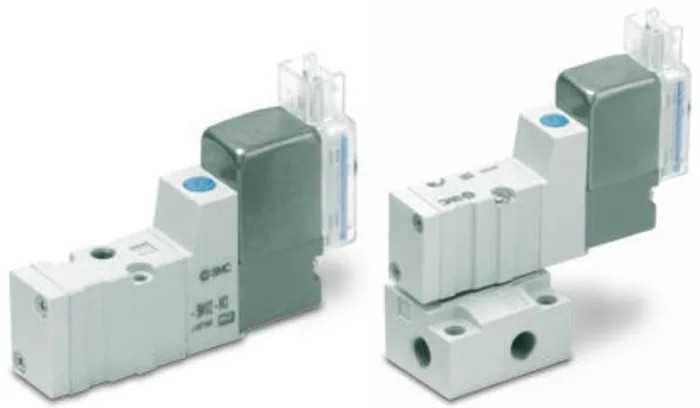

SMC Pneumatic Solenoid Valve Pilot SYJ500 Series 230V AC, Die Cast Aluminium, Halogenated Nitrile Rubber Seals

SMC SYJ512-4DZ-M5-Q Pneumatic Solenoid Valve, part of the SYJ500 Series, operates on 230V AC and is designed for pilot type actuation with low power consumption and space-efficient form factor. This valve is engineered for use in various industrial pneumatic systems, providing reliable fluid control with its die cast aluminium body and halogenated nitrile rubber seals.

Featuring a maximum operating pressure of 0.7 MPa and operating temperature range from -10°C to 50°C, it performs efficiently in demanding environments. The model supports 3 ports with metric M5 size threaded connections and offers valve configurations in 4 port and 5 port designs based on application needs.

The SYJ512-4DZ-M5-Q valve includes a pilot exhaust and copper-free design to enhance safety and durability over prolonged use. The mounting options include body ported and base mounts, allowing flexible installation in manifold or sub-plate assemblies. Flow rate is maximized up to 196.3 NL/min ensuring sufficient air throughput for pneumatic controls.

This solenoid valve series is ideal for industrial fluid power, automation machinery, HVAC pneumatic control, laboratory pneumatic instrumentation, manufacturing lines, and other commercial pneumatic systems.

Key features include low power consumption enabling direct PLC operation, non-locking manual override for maintenance ease, and robust construction tailored for durability in industrial environments.

The valve features a 230V AC pilot actuation type for efficient control. Constructed with a die cast aluminium body for durability and corrosion resistance. Equipped with halogenated nitrile rubber seals ensuring reliable sealing performance.

Supports a maximum operating pressure of 0.7 MPa and temperature range from -10°C to 50°C. Designed for 3 port valve function with port size metric M5 thread type. The valve supports maximum flow rate up to 196.3 NL/min for effective pneumatic operations.

Includes pilot exhaust and copper-free design for extended lifespan and safety. Mount type options include body ported and base mounting for flexible installation. Valve functions include 4 port and 5 port variations. Suitable for industrial pneumatic, automation, and fluid power control systems.

Explore EnvMart for a wide range of SMC pneumatic valves and industrial fluid control solutions designed to optimize performance and reliability.
