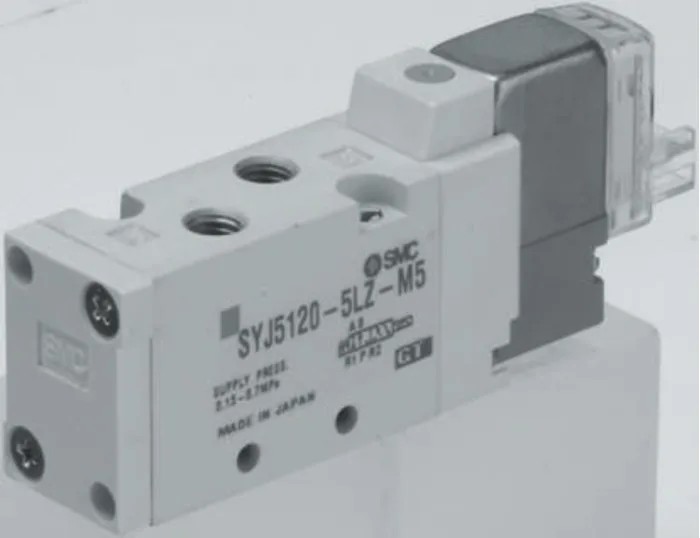

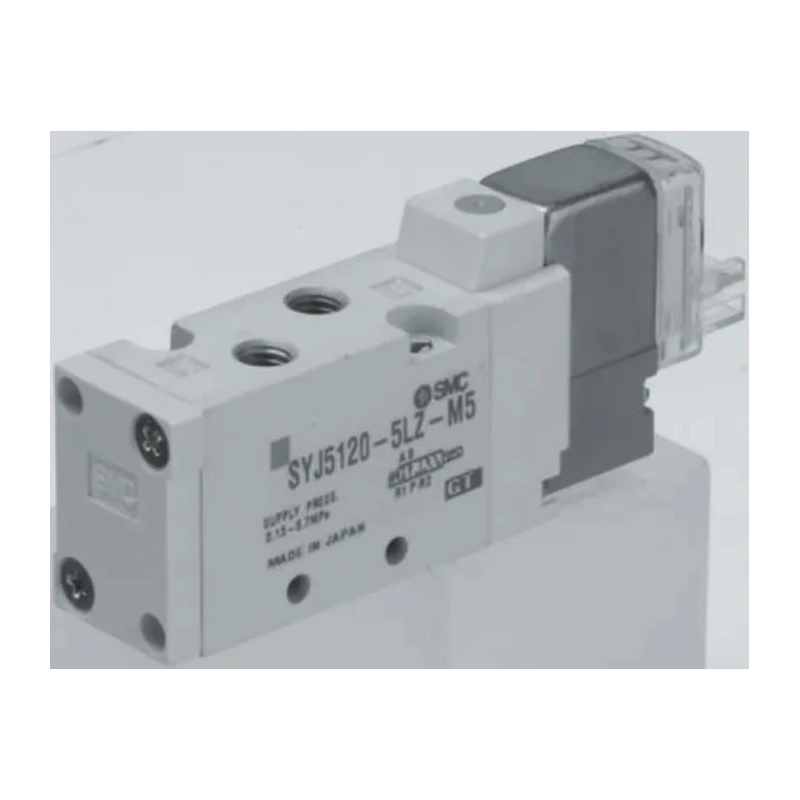

SMC Pneumatic Solenoid Valve Pilot Metric 115V AC Die Cast Aluminium Body SYJ5000

SMC SYJ5120-3DZ-M5-Q Pneumatic Solenoid Valve Pilot Metric 115V AC from the SYJ5000 series features a robust die cast aluminium body and hydrogenated nitrile rubber seals designed for long-lasting performance. It supports a 5-port pneumatic configuration with a connection thread standard of Metric and port size M5, optimized for precision fluid control in industrial automation.

This pilot actuation valve allows for a maximum operating pressure of 0.7 MPa with a maximum flow rate of 129 L/min, offering efficient pneumatic control across various applications. It operates reliably within a temperature range of -10°C to 50°C, suitable for both industrial and laboratory environments.

Mounting is facilitated via a base, body ported configuration, contributing to space-saving installation and easy integration into existing pneumatic manifolds or subplates. The valve's low power consumption aids in reducing engineering costs and enables direct operation by PLC systems without additional power supplies.

The SYJ5000 series valves include specialized valve functions such as 3 Position Exhaust Centre, 2 Position Double Check, and 3 Position Closed, providing application versatility in pneumatic control systems. With a pilot pressure ranging from 0.1 MPa to 0.7 MPa, the valve ensures reliable pilot actuation for optimal performance.

Engineered in Japan, this SMC solenoid valve supports industry-standard pneumatic valve practices and is ideal for use in construction, manufacturing, HVAC, water treatment, and automated control systems. Its copper-free design reduces corrosion risks, enhancing operational life in demanding environments.

The valve features a 5-port design suitable for various pneumatic applications. It operates at a maximum pressure of 0.7 MPa and flow rate of 129 L/min. Constructed of die cast aluminium provides durability and lightweight assembly.

Operates within a temperature range from -10°C to +50°C for versatile industrial settings. Hydrogenated nitrile rubber seals ensure effective sealing and resistance to wear. Designed with a base, body ported mount for efficient installation and maintenance.

Low power consumption allows for direct PLC operation, reducing energy costs. Multiple valve functions including 3 Position Exhaust Centre enhance control options. Explore our wide range of Industrial Valves & Valve Fittings for robust pneumatic solutions with EnvMart.
