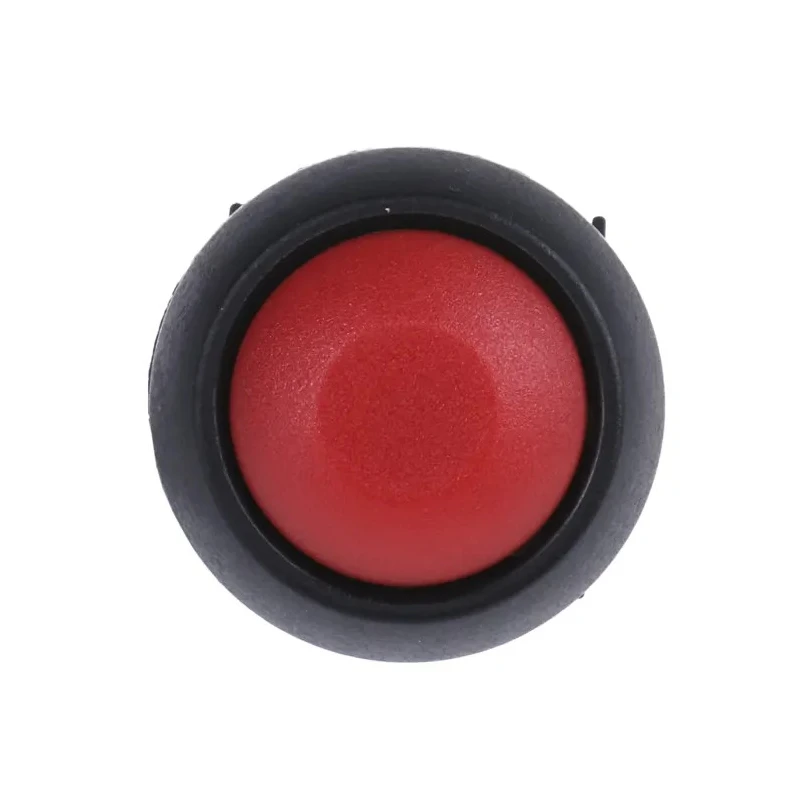

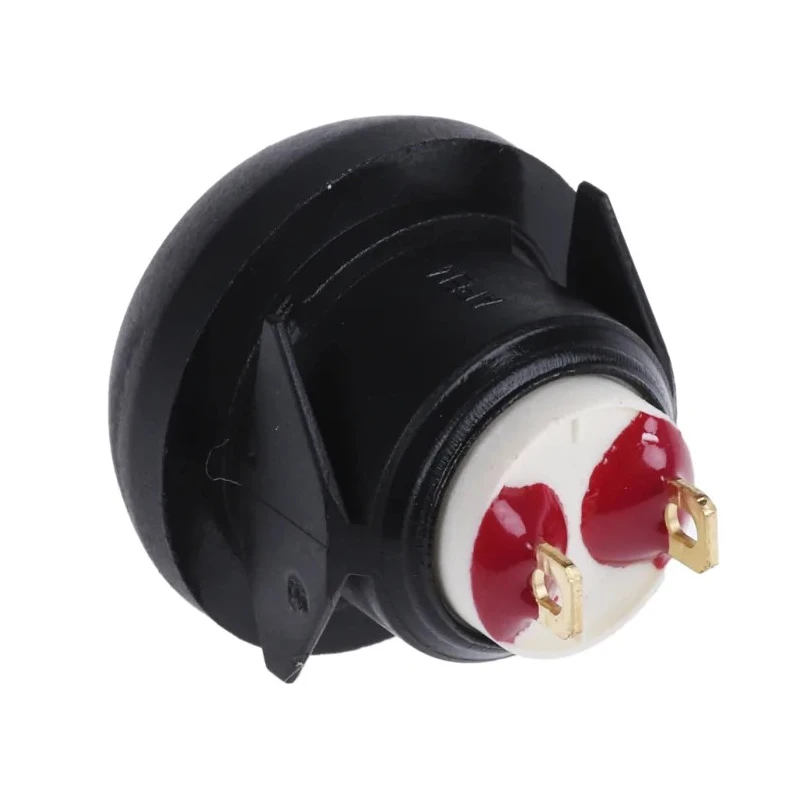

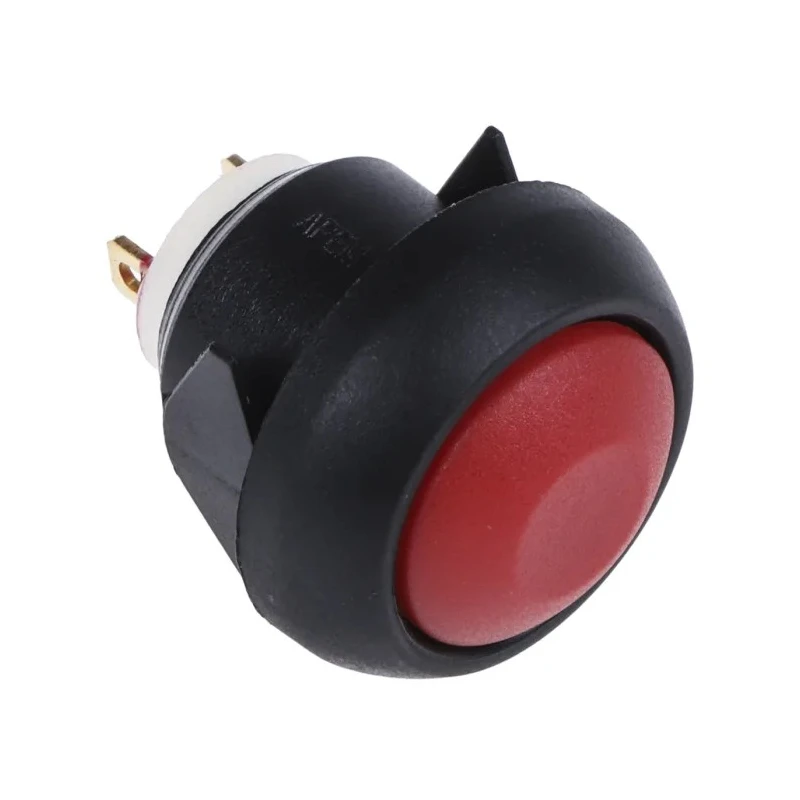

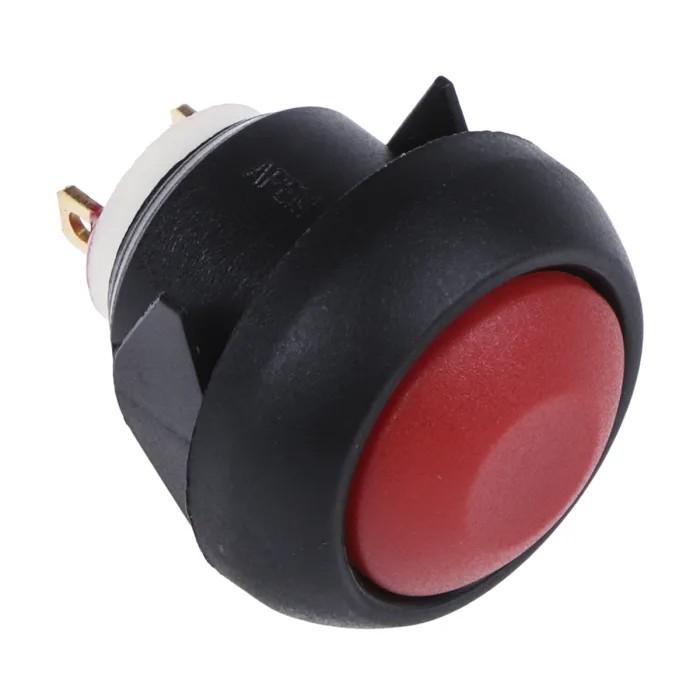

APEM IB Series Miniature Momentary Push Button Switch, Panel Mount, Red Actuator, 13.6 mm Cutout, SPST, IP67 IBR3SAD6
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IBR3SAD6 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Style | Plunger |
| Switch Contact Current | 400mA |
Key Features
- The switch is designed for momentary operation with a plunger-style actuator.
- It has epoxy sealed terminals to prevent flux ingress during soldering, ensuring durability.
- The switch supports a contact current rating of 400 mA.
- It complies with RoHS standards for environmental safety.
- Minimum and maximum operating temperature ranges from -40°C to 85°C.
- The panel-mount installation uses snap-in fixing for secure placement.
- The actuator color is red, ideal for clear indication in control panels.
- Manufactured in France with high-quality standards.
Product Description
APEM IBR3SAD6 miniature push button switch is a high-quality, momentary push button switch designed for panel mounting applications. Featuring a compact 13.6 mm cutout size and single-pole single-throw (SPST) contact configuration, it provides reliable momentary switching action with a red plunger actuator for easy identification and operation.
This switch is engineered with epoxy sealed terminals to prevent flux ingress during soldering, significantly enhancing durability and reliability in industrial environments. It carries an IP67 rating, ensuring dust tightness and protection against temporary immersion in water, making it suitable for harsh and demanding conditions.
The switch supports a contact current rating of 400 mA and operates efficiently across a wide temperature range of -40°C to 85°C. Compliance with RoHS standards ensures it meets environmental and safety regulations.
The snap-in fixing mount type allows straightforward and secure installation into panels, making it ideal for use in automation, electrical control, signaling, and instrumentation panels in industrial, laboratory, manufacturing, and HVAC applications.
The switch is designed for momentary actuation with a red plunger actuator style for clear visual feedback. Epoxy sealed terminals protect against soldering flux, increasing switch longevity. Panel cutout size of 13.6 mm for precise mounting compatibility.
Single-pole single-throw (SPST) contact configuration ensures simple ON/OFF control. IP67 rating offers protection against dust and water ingress. Wide operating temperature range from -40°C to 85°C enables robust environmental tolerance.
Manufactured in France, ensuring high manufacturing quality standards.
APEM miniature Push Button Switches are widely recognized for their robustness and reliability in demanding industrial environments. This model, IBR3SAD6, is especially suitable for electrical panels, automation systems, control stations, and other applications requiring precise momentary switching action with secure panel mounting and environmental protection.
Explore a wide range of industrial switches and components on EnvMart for your electrical and automation system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The APEM IBR3SAD6 miniature push button switch supports a contact current rating of 400 mA.
This switch has an IP67 rating, ensuring it is dust tight and protected against temporary immersion in water.
The operating temperature range for this model is from -40°C to 85°C.
The APEM IBR3SAD6 utilizes a panel mount type with snap-in fixing for secure installation.
This switch requires a panel cutout size of 13.6 mm for proper installation.
It is designed for momentary operation, allowing for temporary switching action when the actuator is pressed.
The actuator of this model is red, providing clear visual feedback for operation.
Yes, the APEM IBR3SAD6 complies with RoHS standards for environmental safety.
This switch has solder terminals that are epoxy sealed to prevent flux ingress during soldering.
The APEM IBR3SAD6 is manufactured in France, ensuring high manufacturing quality standards.
This model features a single-pole single-throw (SPST) contact configuration for simple ON/OFF control.
This push button switch is suitable for use in automation, electrical control, signaling, and instrumentation panels in various industrial applications.
