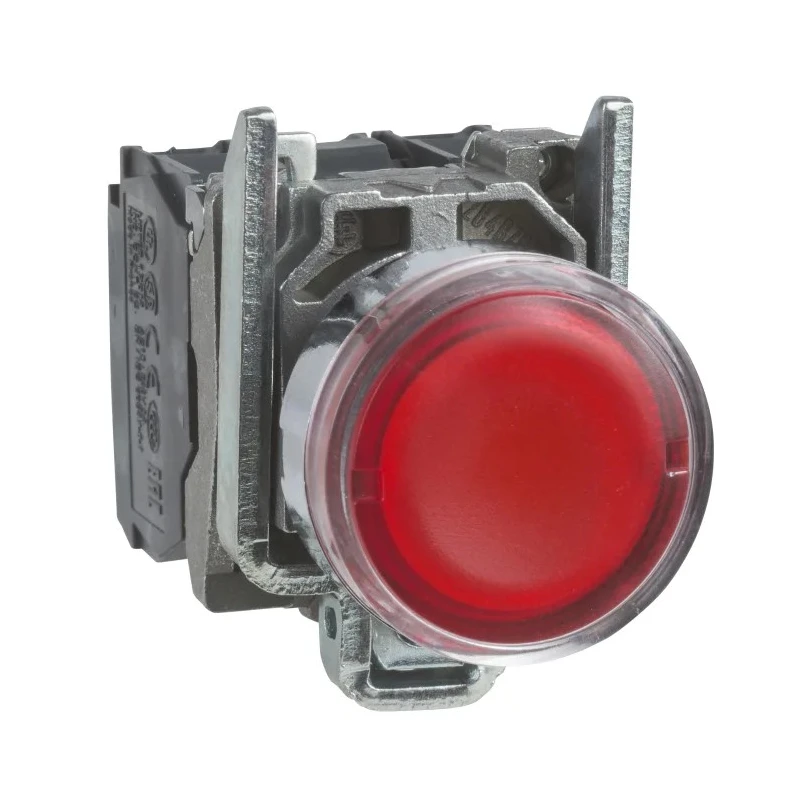

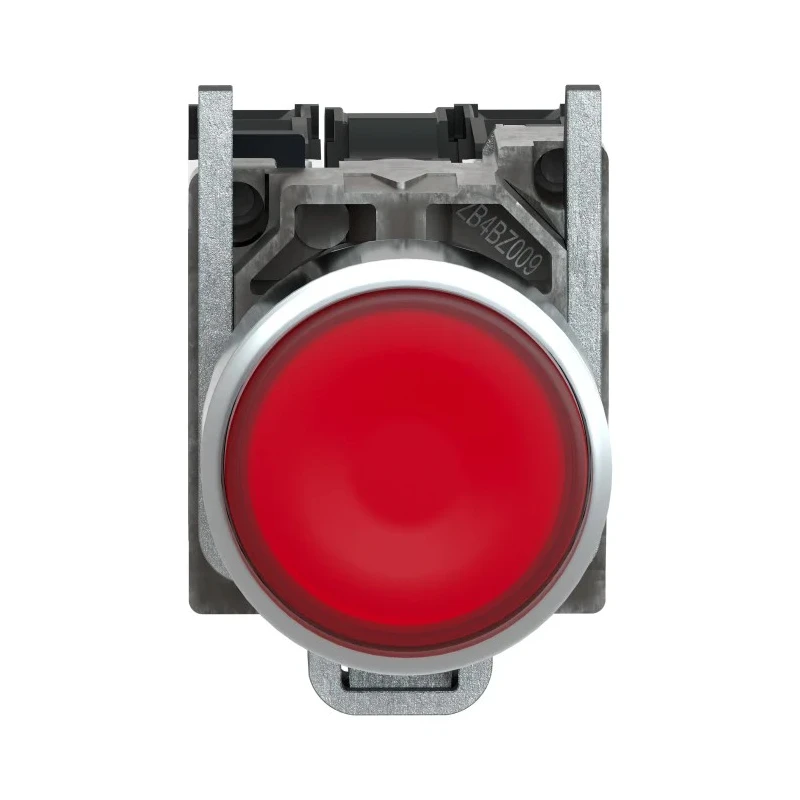

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW3465

Name: Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW3465
Brand: Schneider Electric
SKU: 328846
Price: 45.16 USD
Availability: InStock



Category Push Button Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	Czech Republic
Brand	Schneider Electric
Height	47mm
Length	57mm
Model	XB4BW3465
IP Rating	IP66, IP67, IP69K
Width	30mm
Mount Type	Panel
Series	Harmony XB4
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
LED Colour	Red
Switch Operation	Spring Return
Actuator Colour	Red
Contact DC Voltage	600V
Actuator Style	Round
Switch Contact Current	1.2A
Better World Claim	Repairable by the End User
Legend	Blank

Key Features

Features a spring return switch operation for reliable momentary activation.
Panel mount design with a standard 22 mm cutout diameter for easy installation.
Red illuminated LED for clear visibility in varying lighting conditions.

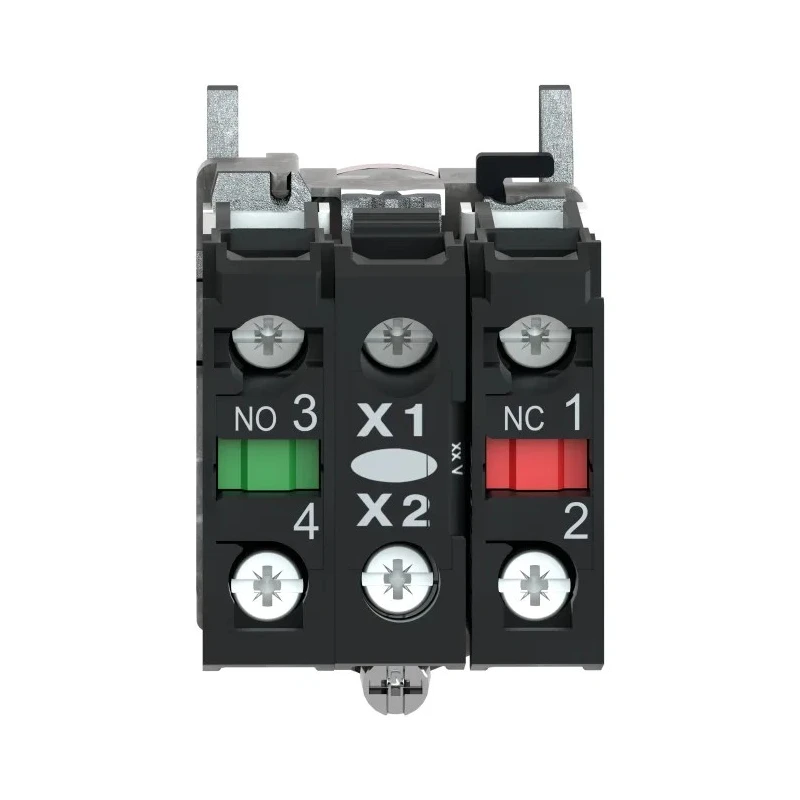

SPDT contact configuration suitable for both normally open and normally closed circuits.
Robust chromium-plated metal finish ensures corrosion resistance and durability.
Wide operating temperature range from -25°C to 70°C for harsh industrial environments.
High ingress protection with ratings of IP66, IP67, and IP69K against dust and water jets.
Capable of handling up to 600V AC/DC contact voltage and 1.2A contact current.

Product Description

Schneider Electric XB4BW3465 is an illuminated momentary push button switch with a spring return mechanism, designed for panel mounting with a standard 22 mm cutout diameter. It features a SPDT (Single Pole Double Throw) contact configuration with a red LED indicator providing clear signaling. The chromium-plated metal finish ensures enhanced durability and corrosion resistance, making it ideal for demanding industrial conditions.

This push button switch operates reliably within a broad temperature range from -25°C to 70°C, suitable for various industrial applications including factory automation, warehouses, and distribution centers. It supports a maximum contact voltage of 600V AC/DC and a contact current of 1.2A, allowing it to handle high power electrical switching tasks effectively.

The device is rated IP66, IP67, and IP69K, providing robust protection against dust ingress and high-pressure, high-temperature water jets, ensuring long service life and minimal maintenance. Its compact size (47 mm height, 30 mm width, and 57 mm length) facilitates easy integration into control panels.

Designed for use in safety and control systems, this push button switch can serve emergency-stop functions by breaking normally closed (NC) contacts and activating normally open (NO) contacts simultaneously. The red LED enhances visibility, making status indication unambiguous under various lighting conditions.

Spring return switch operation offers dependable momentary control. Panel mount design simplifies installation with a 22 mm diameter cutout. Highly visible red LED illumination ensures safety and clarity. SPDT contacts support flexible circuit control with NO and NC options.

Durable chromium-plated metal finish resists corrosion. Wide operating temperature range for versatile industrial conditions. IP66, IP67, and IP69K ingress protection ratings safeguard against dust and water. Supports 600V AC/DC contact voltage and 1.2A contact current.

Compact and ergonomically sized at 47x30x57 mm (HxWxL). Manufactured in the Czech Republic with high-quality industrial standards.

This Schneider Electric Harmony XB4 Series push button switch is ideally suited for industrial, manufacturing, automation, and electrical panel applications that require reliable and visible operator interface components. Its robust construction and advanced protective features make it a dependable choice for professional control systems in harsh environments.

Explore the full range of Schneider Electric products and Push Button Switches in EnvMart's industrial electrical section for comprehensive control solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for both normally open and normally closed circuit applications.

It supports a maximum contact voltage of 600V AC/DC and a contact current of 1.2A, making it suitable for high power electrical switching tasks.

The dimensions of this unit are 47 mm in height, 30 mm in width, and 57 mm in length.

It operates reliably within a temperature range from -25°C to 70°C, suitable for various industrial environments.

This push button switch is designed for panel mounting with a standard cutout diameter of 22 mm, facilitating easy installation.

It has IP66, IP67, and IP69K ingress protection ratings, providing robust protection against dust and high-pressure water jets.

The LED indicator is red, which enhances visibility in various lighting conditions.

It uses screw terminals for secure electrical connections.

Yes, it can serve emergency-stop functions by breaking normally closed contacts and activating normally open contacts simultaneously.

It features a robust chromium-plated metal finish that ensures corrosion resistance and durability, suitable for demanding industrial conditions.

This model is manufactured in the Czech Republic, adhering to high-quality industrial standards.

It is ideally suited for industrial, manufacturing, automation, and electrical panel applications that require reliable operator interface components.
