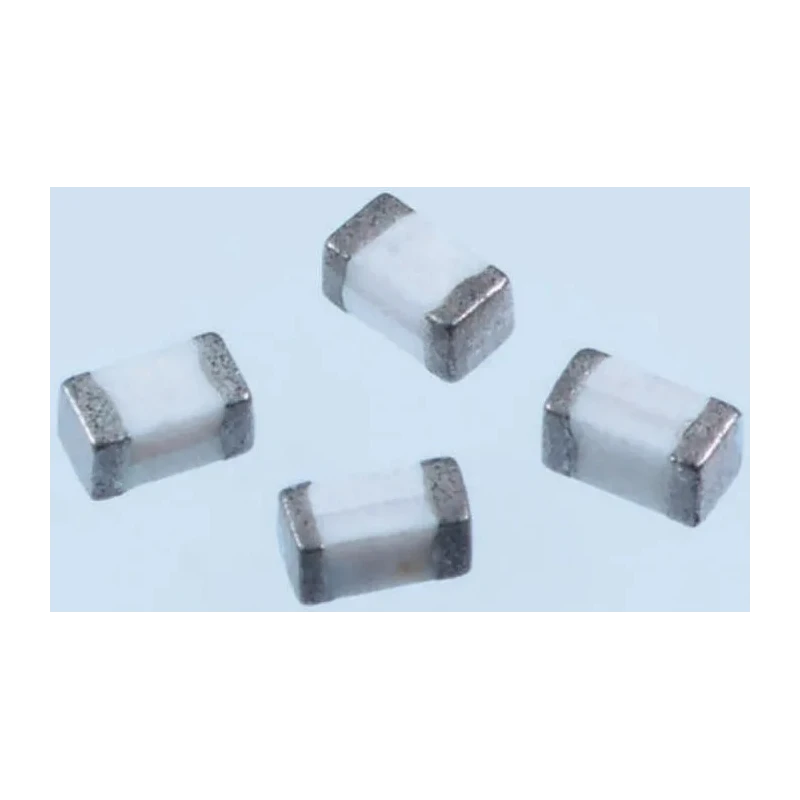

Murata WE-MK 0603 Unshielded Multilayer Surface Mount Inductor 10 nH ±5% Maximum DC Current 600mA 74478611

Free Delivery in India | Lowest Global Shipping Charges

Murata WE-MK 0603 Unshielded Multilayer Surface Mount Inductor 10 nH ±5% Maximum DC Current 600mA 74478611

Name: Murata WE-MK 0603 Unshielded Multilayer Surface Mount Inductor 10 nH ±5% Maximum DC Current 600mA 74478611
Brand: Murata
SKU: 328812
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Murata Condition New

Specifications

Country of Origin	Taiwan
Brand	Murata
Height	0.8mm
Length	1.6mm
Model	74478611
Depth	0.8mm
Packaging	Tape
Series	WE-MK
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Core Material	Ceramic
Inductance	10nH
Standards/Approvals	RoHS, REACH
Package/Case	0603
Maximum DC Current	600mA
Maximum DC Resistance	450mΩ
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	3.7GHz
Minimum Quality Factor	8
Inductor Construction	Multilayer
Automotive Standard	AEC-Q200

Key Features

Multilayer ceramic core construction ensures stable inductance over temperature.
Maximum DC current rating of 600mA provides reliable performance.

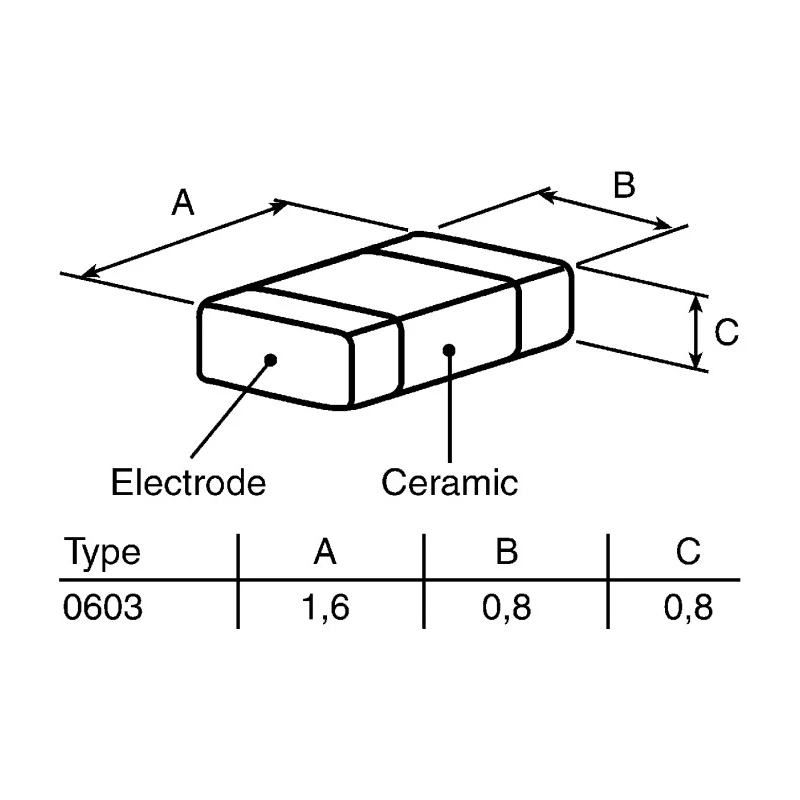

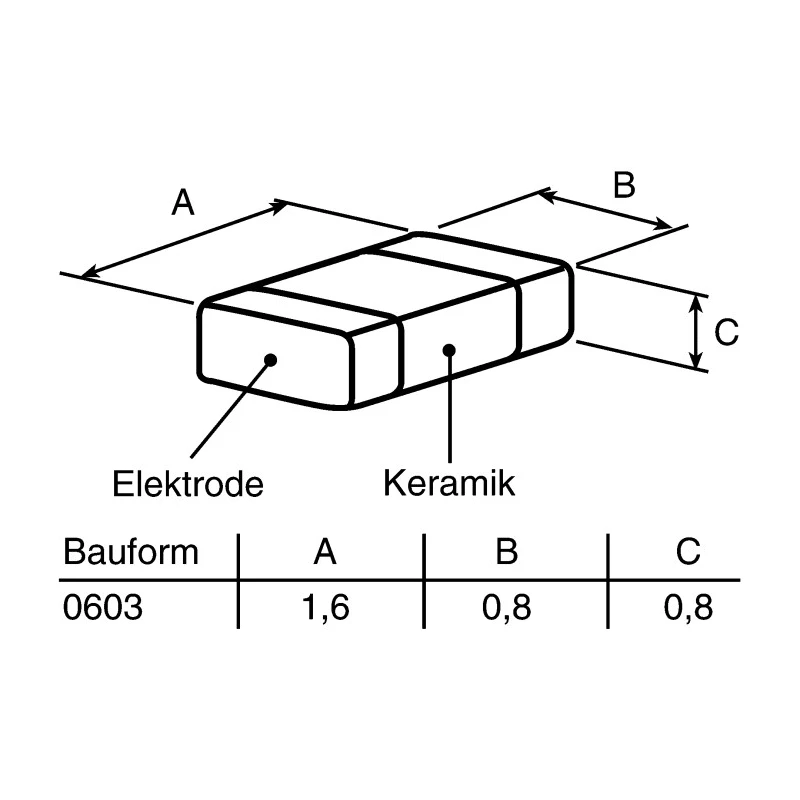

Compact 0603 package size with length and width of 1.6mm and height of 0.8mm.
Maximum operating temperature of 120°C supports extended use in demanding environments.
High self-resonant frequency of 3.7 GHz ideal for tuner and HF amplifier circuits.
RoHS and REACH compliant, meeting environmental standards.
AEC-Q200 automotive standard qualified for automotive-grade applications.
Surface mount termination style simplifies assembling on PCBs.

Product Description

Wurth Elektronik 74478611 WE-MK 0603 unshielded multilayer surface mount inductor features a ceramic core delivering 10 nH inductance with a tolerance of ±5%. Designed for precision and stability, this multilayer construction is ideal for use in high frequency applications such as tuners, transponders, and RF amplifiers.

The compact 0603 package (1.6mm length, 0.8mm height and depth) and surface mount termination style allow for easy integration into compact circuit boards. With a maximum DC current of 600mA and a maximum DC resistance of 450mΩ, the component supports efficient current flow while maintaining performance.

The inductor is qualified to the AEC-Q200 automotive standard and is RoHS and REACH compliant, ensuring reliability and environmental safety for automotive and industrial applications. Its maximum operating temperature of 120°C, coupled with a minimum operating temperature of -40°C, allows for robust operation across a wide thermal range.

The inductor construction as multilayer ceramic provides a high self-resonant frequency of 3.7 GHz and a minimum quality factor of 8, suitable for demanding RF and communications equipment including laptops, Bluetooth devices, and wireless LAN modules.

Multilayer ceramic core ensures temperature stability. Compact 0603 package for surface mount assembly. ±5% inductance tolerance enables precise circuit tuning. Supports maximum DC current of 600mA safely. High self-resonant frequency of 3.7 GHz for high-frequency circuits.

Meets AEC-Q200 automotive and environmental RoHS, REACH standards. Operates reliably within -40°C to 120°C temperature range. Ideal for wireless communication, filtering, and oscillator applications.

Wurth Elektronik inductors offer dependable performance in industrial, automotive, telecommunications, and consumer electronics sectors. Explore related surface mount inductors and passive components in EnvMart for expanded selection.
