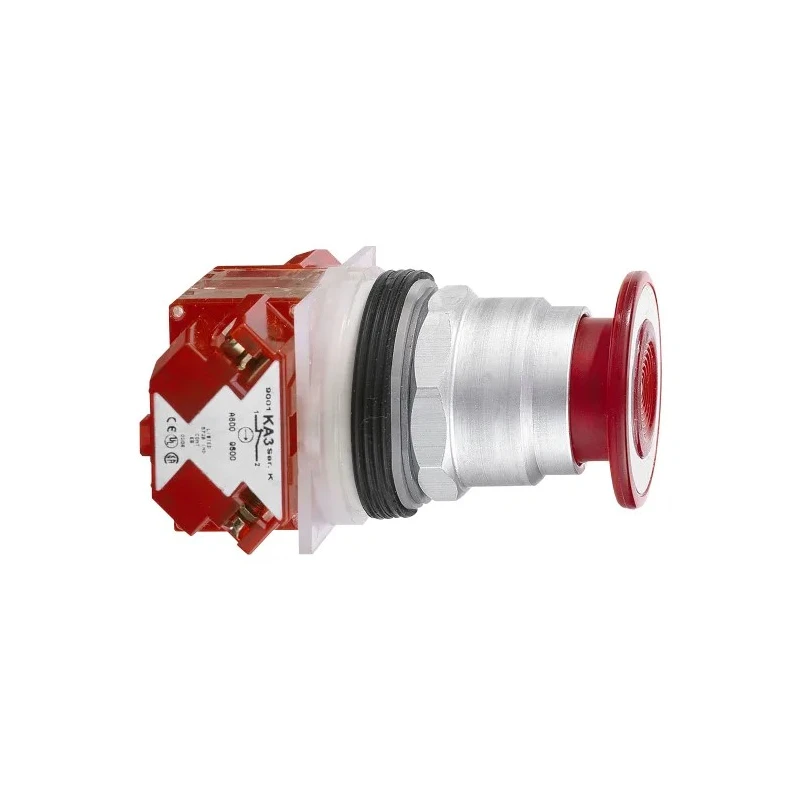

Schneider Electric Harmony 9001K Series Illuminated Mushroom Head Push Button Switch, Spring Return, Red LED, 30 9001KR9RH6

Schneider Electric 9001KR9RH6 is a high-quality illuminated push button switch from the Harmony 9001K series designed for industrial and automation applications. This switch features a mushroom head actuator with a red LED indicator for clear status visibility. The spring return mechanism provides momentary switch actuation, ideal for control panels and operator interfaces.

The push button is engineered with a 30 mm panel cutout ensuring easy integration into existing systems. The robust construction is chrome-plated and rated IP66, offering excellent protection against dust ingress and powerful water jets, making it suitable for demanding industrial environments.

The contact configuration is 1 CO with a current rating of 10A, supporting DC contact voltage up to 125V and AC contact voltage up to 240V. The switch uses screw terminals to guarantee secure and reliable electrical connections. It operates efficiently in a temperature range between -25°C and 70°C.

The product dimensions are 103 mm height, 92 mm length, and 54 mm width, providing ergonomics and ease of use for operators. Manufactured in Mexico, the switch complies with major environmental and safety standards including EU RoHS, WEEE, RoHS, and REACH, ensuring it meets global directives.

This illuminated push button switch is ideal for use in heavy-duty applications within industrial automation, manufacturing control panels, electrical machinery, and HVAC systems requiring reliable human-machine interface components.

The actuator color is red for clear visual indication. Designed with a 30 mm panel cutout size for standardized installation. Offers a single contact configuration of 1 CO with a contact current rating of 10A. The switch operation is spring return ensuring momentary actuation.

Rated to IP66 for protection against dust and powerful water jets. Supports contact voltages of 125V DC and 240V AC. Terminal type is screw for secure wiring connections. Operating temperature range from -25°C to 70°C. The product dimensions are 103 mm height, 92 mm length, and 54 mm width.

Manufactured in Mexico complying with EU RoHS, WEEE, RoHS, and REACH standards. Browse other products in the Push Button Switches category on EnvMart to find compatible components and accessories for your industrial automation projects.
