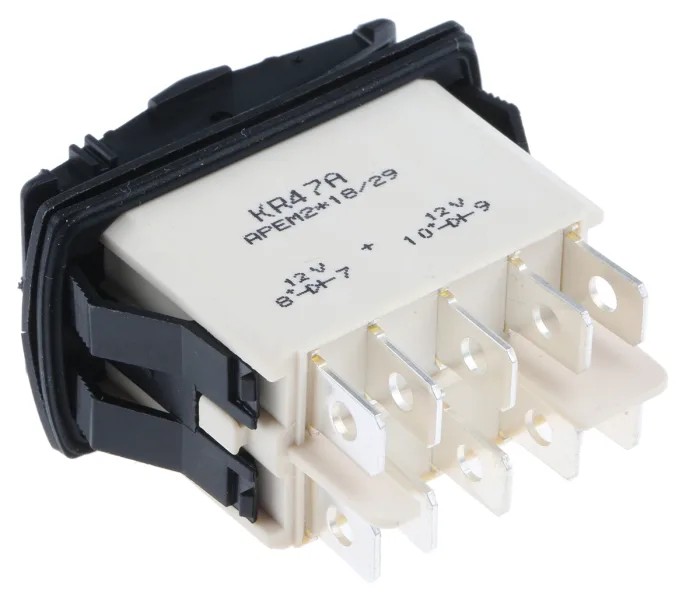

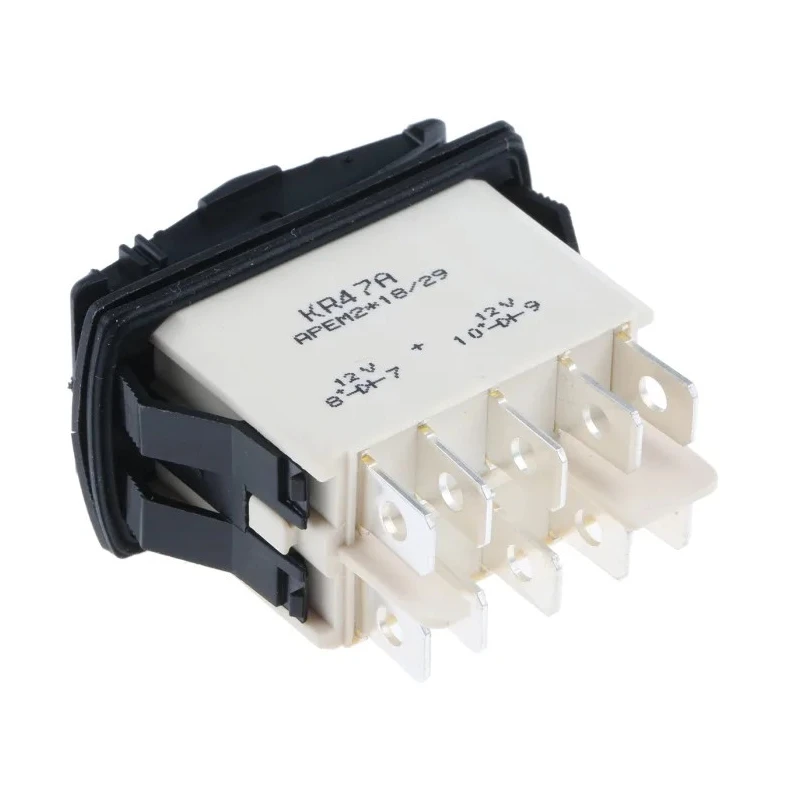

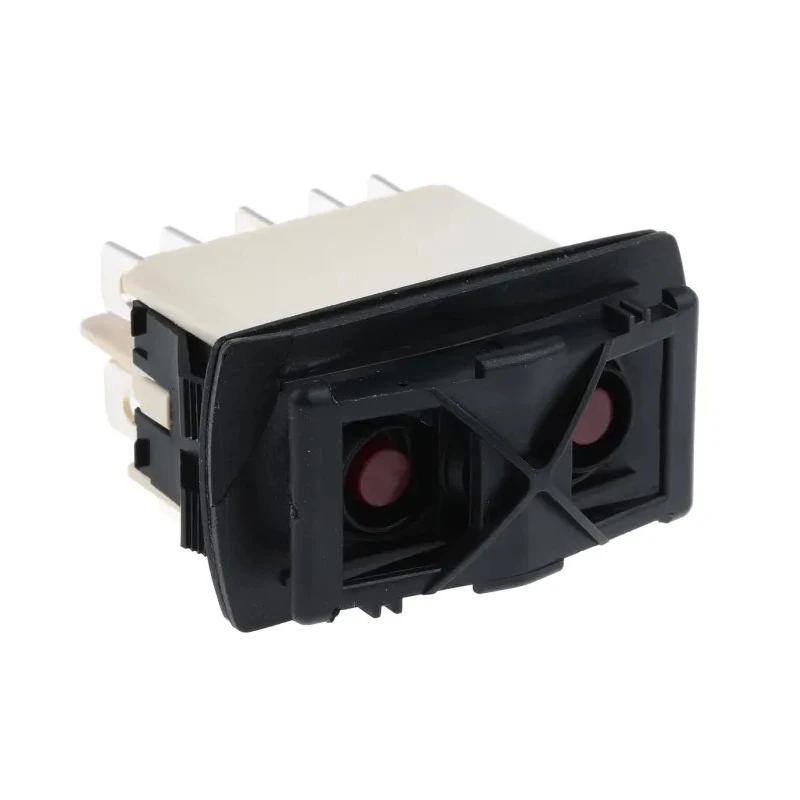

APEM Illuminated Double Pole Double Throw (DPDT) On-Off-On (On)-Off-(On) Rocker Switch Panel KR47CAKDDG

APEM KR47CAKDDG is an illuminated double pole double throw (DPDT) rocker switch panel offering robust electrical switching solutions. Designed for demanding industrial, automation, and electrical applications, it features an On-Off-On (On)-Off-(On) switching configuration that provides versatile circuit control options.

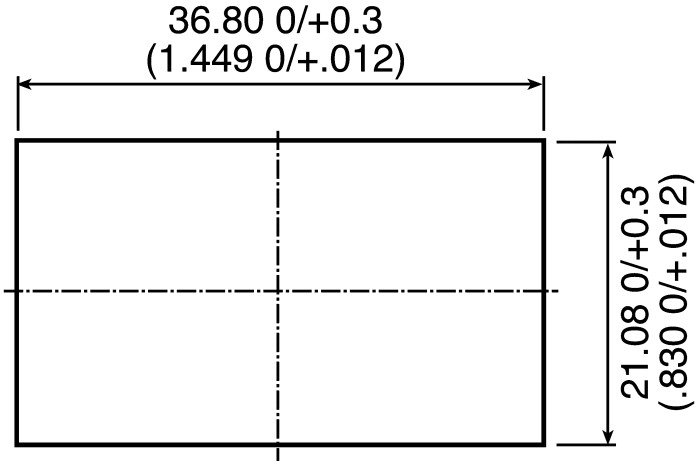

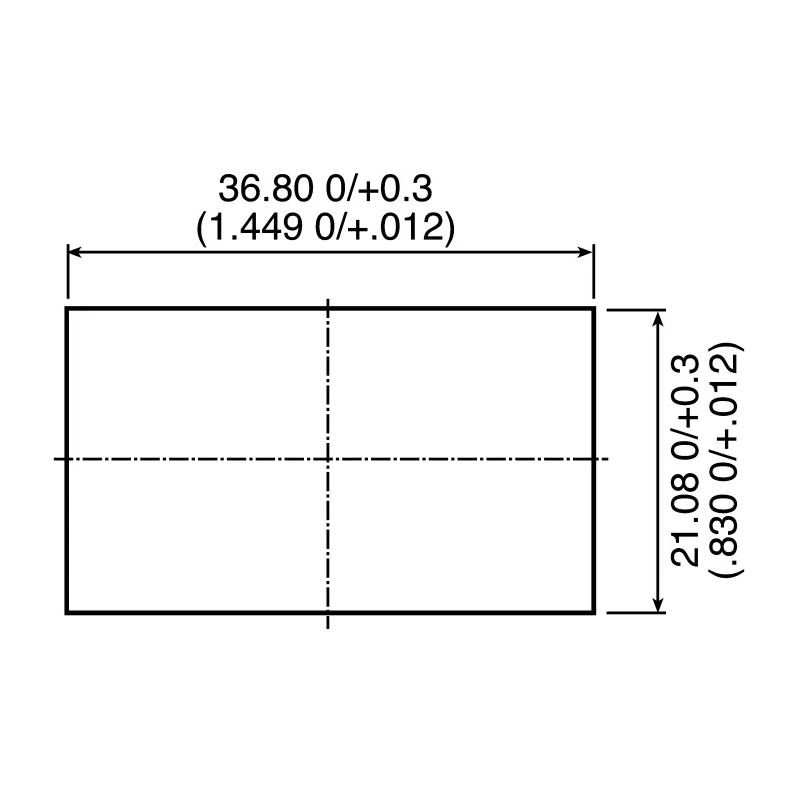

The switch housing is fabricated from high-quality nylon, ensuring durability, electrical insulation, and resistance to environmental factors. It fits into a panel cutout size of 36.8 x 21.08 mm, making it suitable for various equipment and control panels.

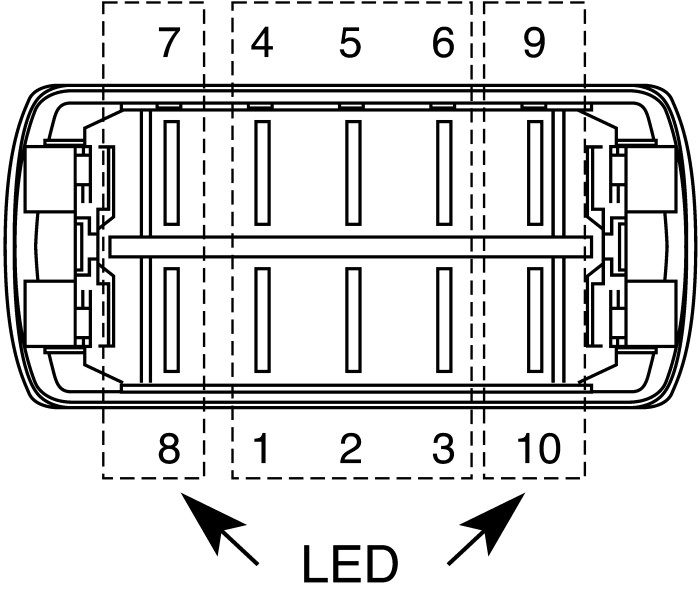

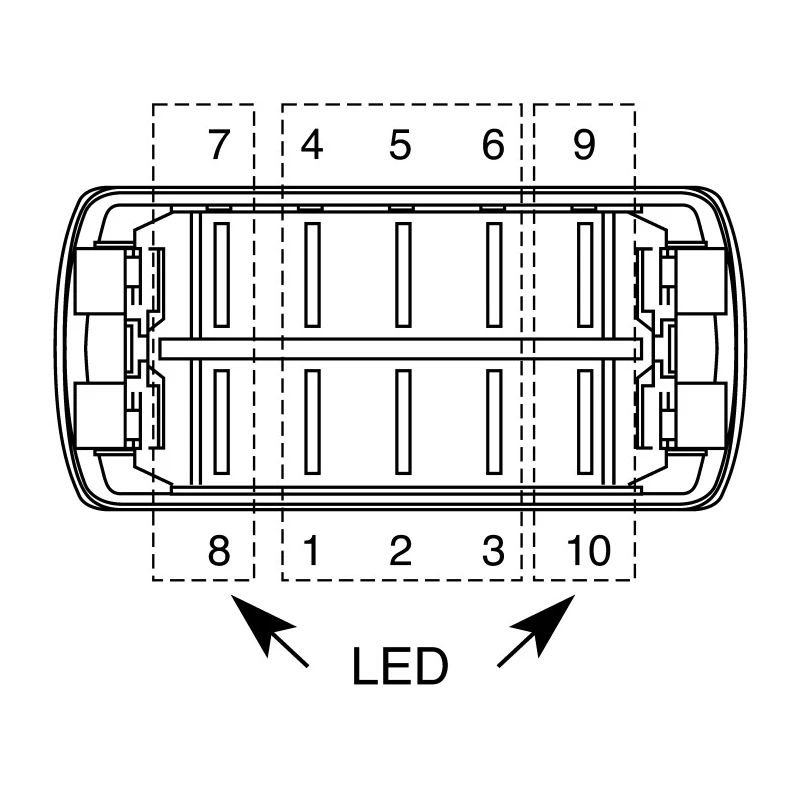

This Rocker Switch supports a contact current of 5A and contact voltages of 24V DC and 125V AC, accommodating a range of DC and AC electrical systems. Illumination improves operational visibility, making it ideal for control panels where indication is critical. The quick connect and solder terminal options enable flexible and secure wiring installations.

With an IP68 ingress protection rating, the switch is protected against dust and long-term immersion in water, suitable for harsh or outdoor environments. It is engineered to withstand a broad operating temperature range from -40°C to 85°C, ensuring performance reliability under extreme conditions. The actuator style is rectangular, offering ergonomic operation and firm tactile feedback.

The switch conforms to rigorous international standards including RoHS compliance and approvals from EN, IEC, and ISO bodies. It is rated for a mechanical life of 150,000 operations, guaranteeing extensive usage in industrial automation, electrical distribution, machinery controls, and HVAC systems.

This product is commonly used in industrial automation, electrical control panels, HVAC systems, and machinery control applications. Panel mounting and terminal compatibility simplify installation and enable quick wiring harness assembly.

The durable nylon body, combined with high IP protection, ensures reliable performance in tough environments including manufacturing and outdoor facilities. Illumination options with various LED colors provide clear switch status indication.

Suitable for projects requiring high mechanical endurance and certified safety standards. For comprehensive switching solutions and compatible parts, explore the full range of APEM switches and accessories at EnvMart.
