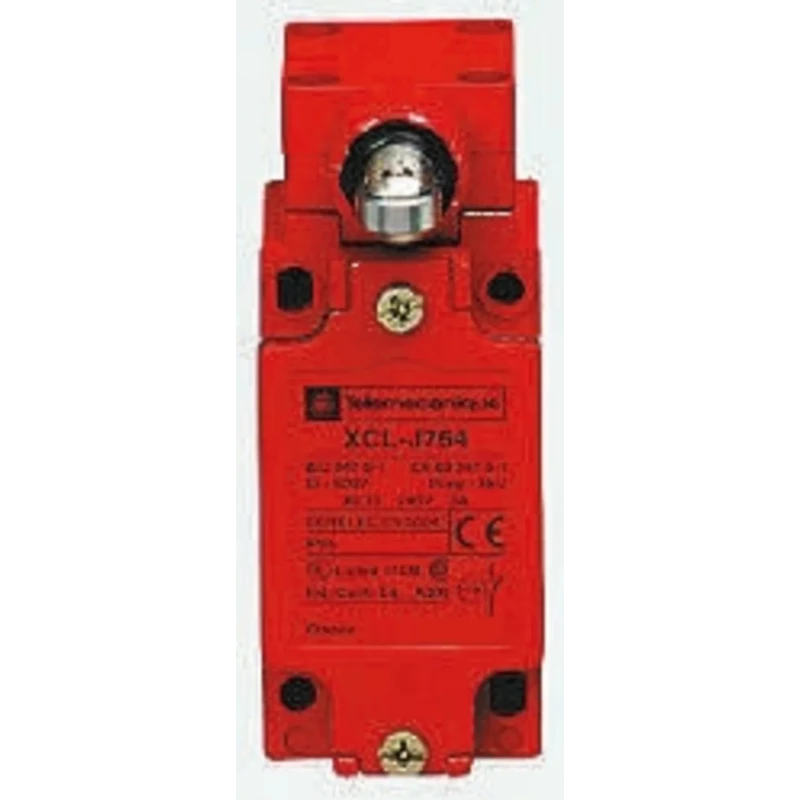

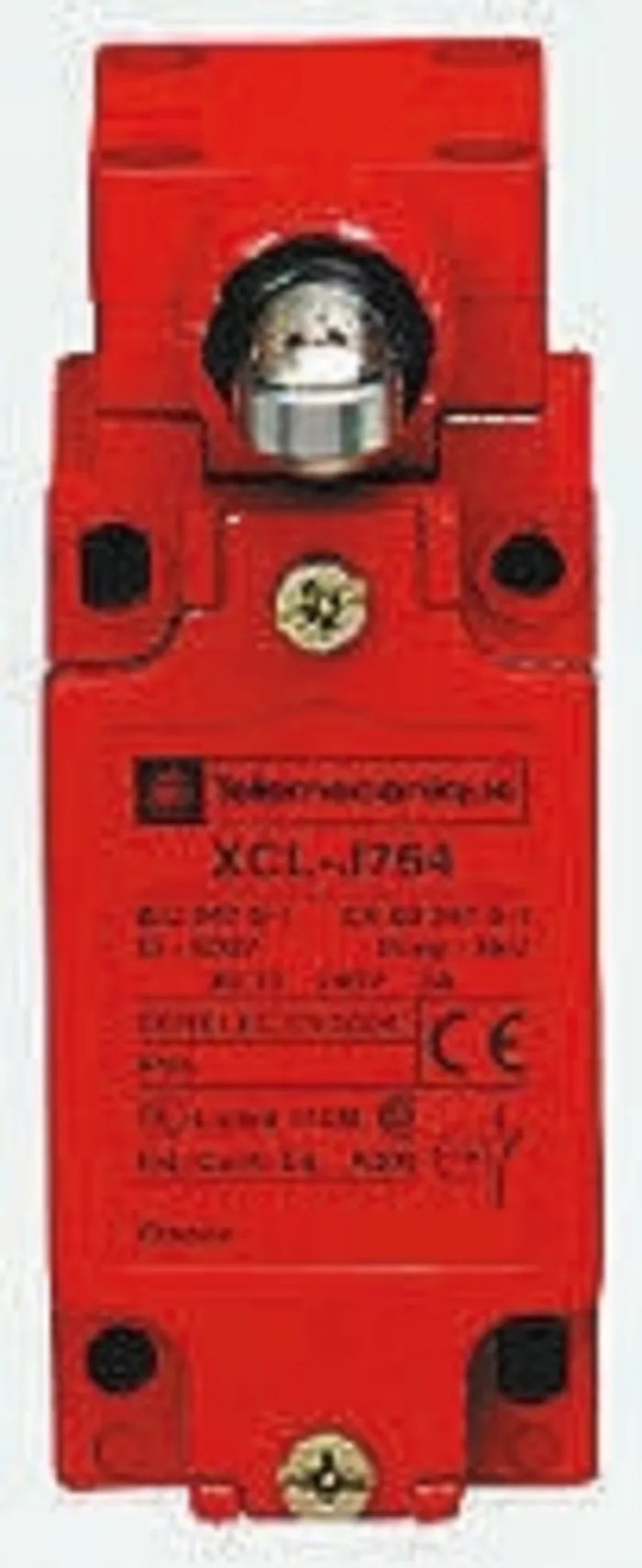

Telemecanique Sensors Safety Limit Switch Roller Plunger Metal Housing 240V AC 3A IP66
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 100mm |
| Model | IP66 |
| Depth | 63.6mm |
| IP Rating | IP66 |
| Width | 40mm |
| Housing Material | Metal |
| Series | XCL-J |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | M20 |
| Standards/Approvals | EN, IEC, REACH, RoHS |
| Operating Force | 28N |
| Mechanical Life | 30000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
Key Features
- Heavy duty metal body provides robust performance and durability.
- IP66 rated for protection against dust and strong water jets.
- Contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
- Designed for safety applications with slow action contacts and positive opening mechanism.
- Equipped with M20 cable entry for secure wiring.
- Operates reliably in temperatures ranging from -25°C to 70°C.
- Capable of switching 250V DC and 240V AC voltages safely.
- Mechanical life rated at 30 million cycles ensuring long-term use.
Product Description
Telemecanique Sensors XCLJ564H29 Safety Limit Switch features a robust roller plunger actuator and a heavy-duty metal housing rated for IP66 ingress protection, making it ideal for industrial automation and safety applications. This switch is designed to detect the position of moveable guards and other components, providing reliable control and safety interlocking.
The device operates at 240V AC with a maximum switching current of 3A and supports DC switching up to 250V. Its slow action contacts with positive opening mechanisms ensure dependable safety operation, meeting EN, IEC, REACH, and RoHS standards.

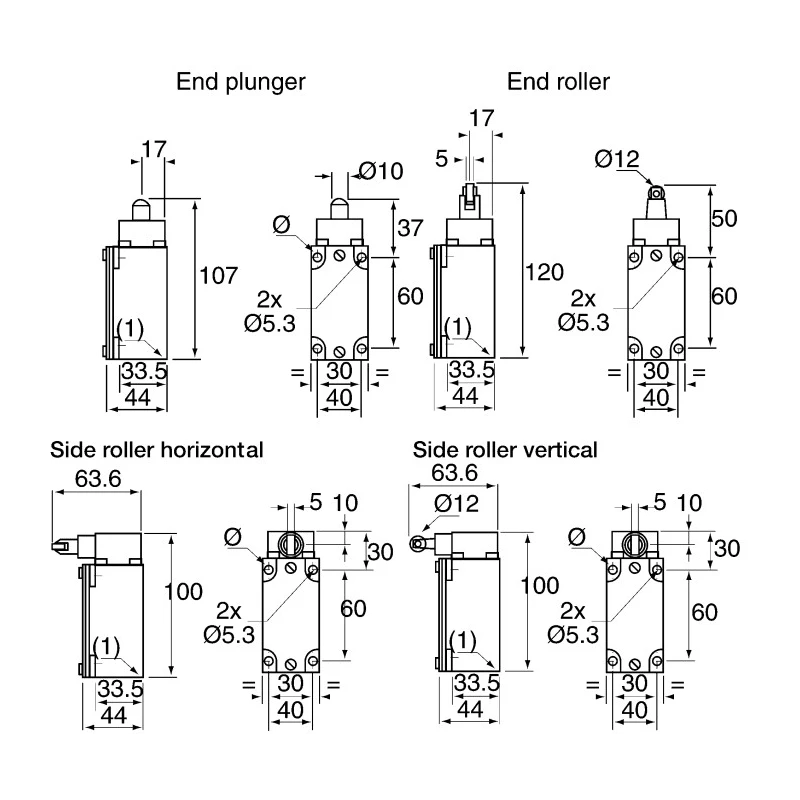

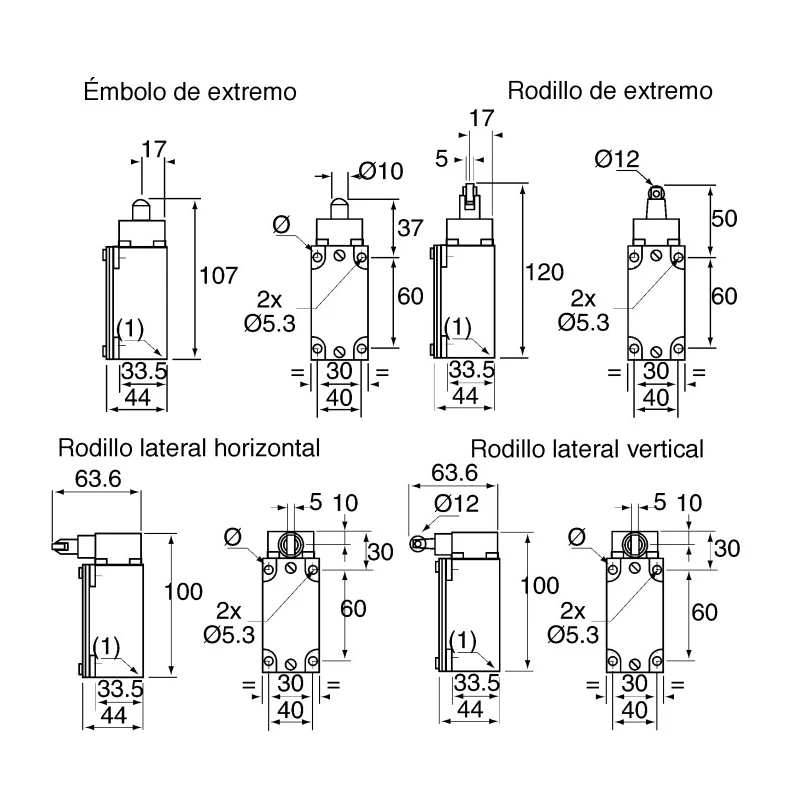

Built to withstand harsh operating conditions, the switch functions within a temperature range of -25°C to 70°C. It includes a tapped M20 x 1.5 ISO cable entry for secure installation, and measures 100mm in length, 40mm in width, and 63.6mm in depth.
The mechanical life of 30 million cycles supports extensive industrial use with minimal maintenance. This switch does not have hazardous area certification but complies with IEC 947-5-1, IEC 337-1, and EN 60947-5-1 standards, making it suitable for many automation and safety monitoring operations.
Heavy duty metal body ensures durability in demanding environments. IP66 protection allows use in dusty and wet conditions. 1 normally open and 1 normally closed contact configuration for versatile control. Positive opening slow action contacts for safety applications.
Standard M20 cable entry for easy wiring. Wide operating temperature range supports various industrial settings. 30 million cycle mechanical life for reliable long-term performance.
This Safety Limit Switch is suitable for use in industrial, manufacturing, automation, and electrical safety applications requiring precise position sensing and control. Browse EnvMart for a comprehensive range of limit switches and safety products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 3A.
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
This safety limit switch operates reliably within a temperature range of -25°C to 70°C.
It has an IP66 rating, providing protection against dust and strong water jets.
This switch uses a roller plunger actuator.
The dimensions are 100mm in length, 40mm in width, and 63.6mm in depth.
It complies with EN, IEC, REACH, and RoHS standards.
It is equipped with a tapped M20 x 1.5 ISO cable entry for secure wiring.
The mechanical life is rated at 30 million cycles, ensuring extensive use.
Yes, it is capable of switching DC voltage up to 250V.
The housing is made of heavy-duty metal, providing robust performance.
It utilizes slow action contacts with a positive opening mechanism for safety applications.
