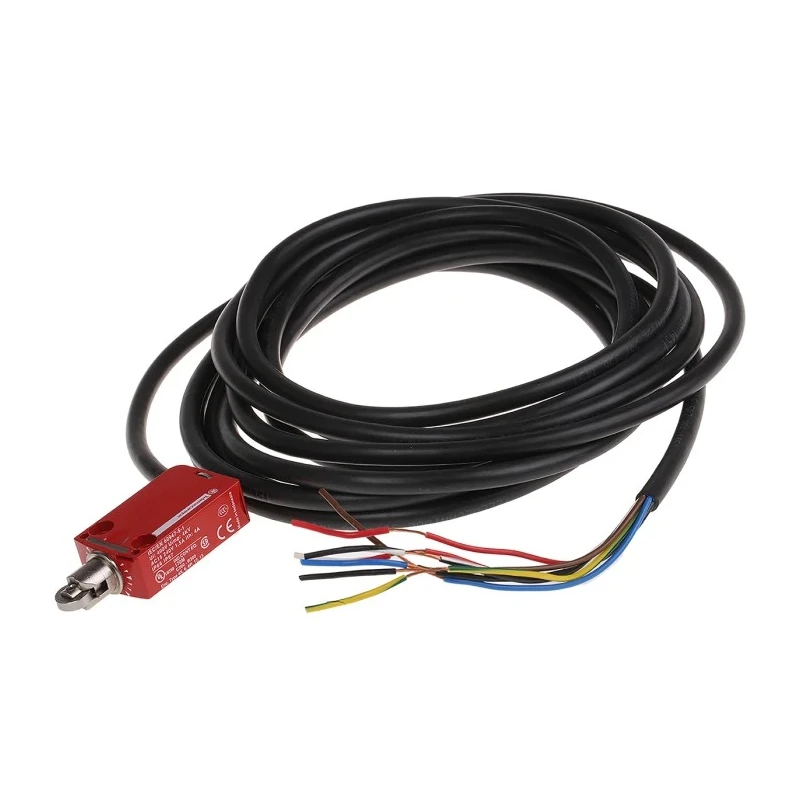

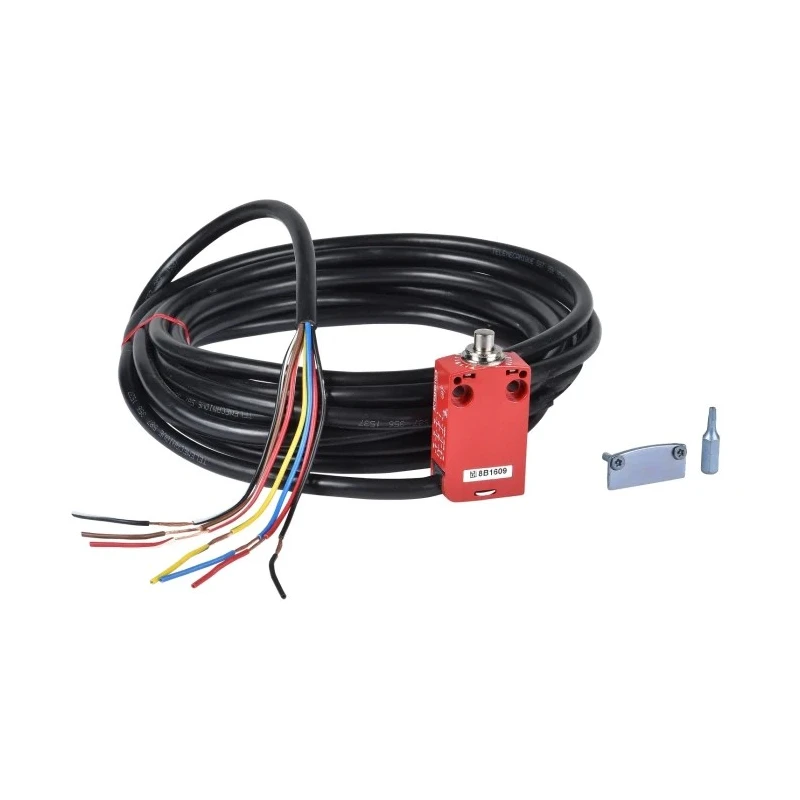

Telemecanique Sensors XCSM Series Roller Plunger Safety Limit Switch, 1 NO/2 NC, IP66 IP67 IP68 Metal Housing 240V XCSM3902L5

Telemecanique Sensors XCSM3902L5 Roller Plunger Safety Limit Switch is an industrial-grade device engineered for precise positional detection and control in automation and safety circuits. Featuring a compact design with robust metal housing, this limit switch is built to withstand harsh operating environments.

The switch utilizes a roller plunger actuator to convert mechanical motion into an electrical signal offering fast snap-action switching. It provides a flexible contact arrangement of 1 Normally Open and 2 Normally Closed contacts, allowing diverse circuit configurations and applications.

The device supports switching voltages up to 240 volts AC and 250 volts DC with a maximum switching current of 1.5 amperes. Its low operating force of 7 newtons minimizes actuation load, ensuring smooth function in machinery and safety interlock systems.

Designed for cable mounting, this Safety Limit Switch simplifies wiring with pre-cabled terminals, speeding up installation. It offers outstanding durability with a mechanical life rated for 10 million operating cycles, contributing to low maintenance requirements.

Certified to meet IP66, IP67, and IP68 protection standards, the switch is fully dust-tight and water-resistant, suitable for washdown and wet industrial conditions. Operating temperature ranges from -25°C to 70°C enable reliable usage across varied ambient conditions.

International safety and performance approvals include UL 508, IEC 60947-5-1, EN 60947-5-1, and CSA C22.2 No. 14, guaranteeing recognized quality and compatibility with safety standards.

This limit switch finds ideal applications in conveyor end-of-travel sensing, safety door interlocks, packaging machinery feedback, and automated production line position detection.

This switch features a robust metal housing suitable for harsh environments. It has a contact configuration of 1 Normally Open and 2 Normally Closed contacts for versatile control options. The roller plunger actuator ensures reliable and fast response with a low 7N operating force.

Rated for switching voltages of 240V AC and 250V DC with a switching current of 1.5A. The unit is pre-cabled for easy and quick installation in automated systems. It supports a durable mechanical life of up to 10 million cycles.

The IP66, IP67 and IP68 ingress protection ratings certify its resistance to dust and water immersion. Compact dimensions: 70 mm length, 30 mm width, and 16 mm depth make it suitable for cable-orientated mounting. Operates reliably within a temperature range from -25°C to +70°C for varied industrial environments.

Approved to international standards including UL 508, IEC 60947-5-1, EN 60947-5-1, and CSA C22.2 No. 14. Explore more safety and limit switches from Telemecanique Sensors at EnvMart to meet your industrial automation and safety needs.
