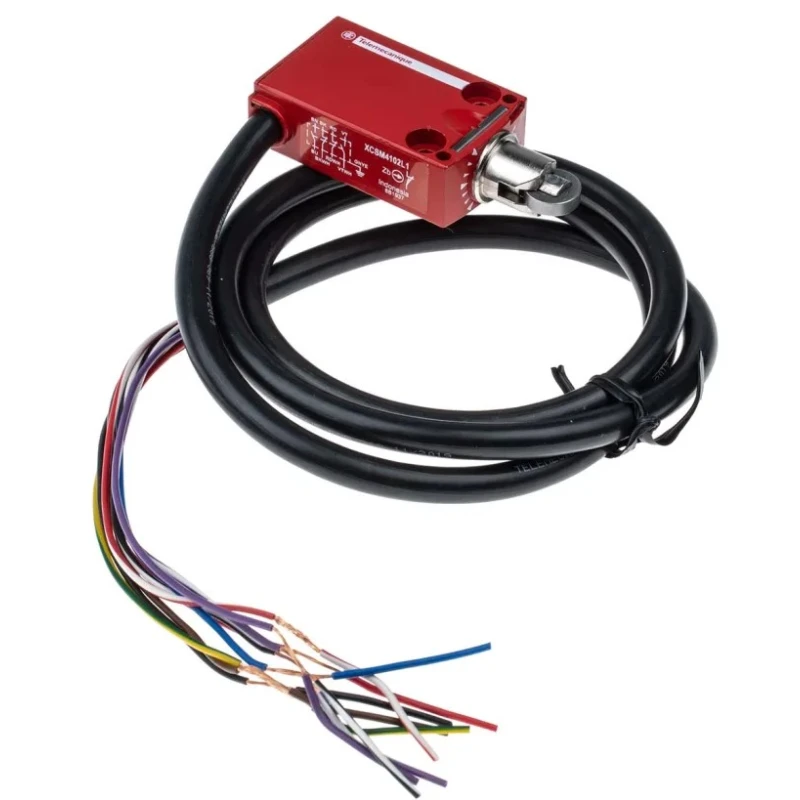

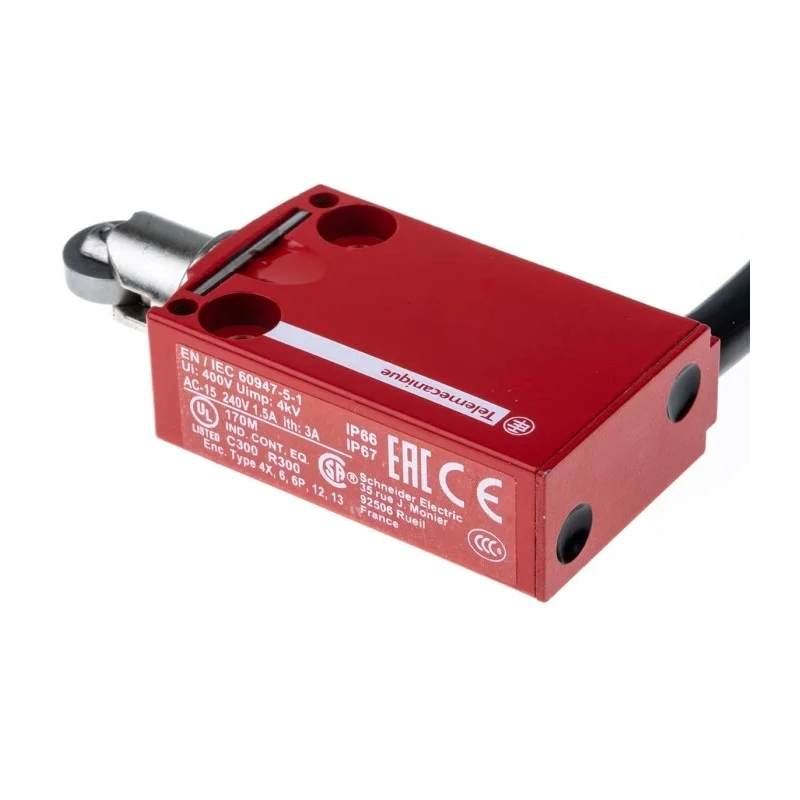

Telemecanique Sensors XCSM Series Roller Plunger Safety Limit Switch, 2 NO/2 NC, Metal Housing, IP68/IP67/IP66 XCSM4102L1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 70mm |
| Model | XCSM4102L1 |
| Depth | 16mm |
| IP Rating | IP68, IP67, IP66 |
| Width | 30mm |
| Housing Material | Metal |
| Series | XCSM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 2 NO/2 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1.5A |
| Terminal type | Pre-Cabled |
| Standards/Approvals | UL, RoHS, IEC, EN, CSA, CE |
| Operating Force | 35N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
Key Features
- Equipped with 2 normally open and 2 normally closed snap-action contacts for versatile circuit configurations.
- Features a durable metal housing with IP68, IP67, and IP66 ingress protection for harsh environments.
- Operates at 240V AC with a switching current of 1.5A suitable for DC loads up to 250V.

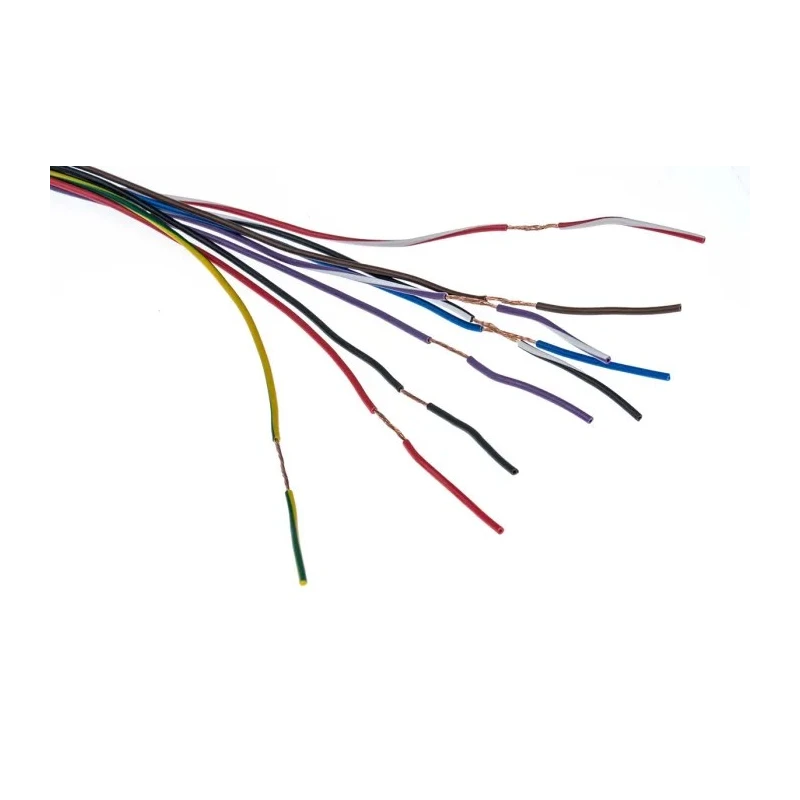

- Pre-cabled terminal type ensures easy installation without additional wiring.
- Supports a wide temperature range from -25°C to 70°C for diverse industrial settings.
- Mechanical endurance rated at 10,000,000 cycles guarantees prolonged operational life.
- Operating force of 35 N provides precise actuator response for safety interlocks.
- Compact dimensions of 70mm length, 30mm width, and 16mm depth allow flexible mounting.
Product Description
Telemecanique Sensors XCSM4102L1 Roller Plunger Safety Limit Switch offers a robust solution for industrial automation and safety applications. This device combines a metal housing that resists mechanical damage with high ingress protection ratings of IP68, IP67, and IP66, enabling it to operate reliably in environments exposed to dust and immersion.
The switch features a roller plunger actuator with snap-action contacts configured as 2 normally open and 2 normally closed, providing flexibility in control-circuit design. Rated to handle switching currents of 1.5A for DC and 240V AC, it supports industrial control and safety interlock requirements efficiently.
The pre-cabled terminal design simplifies installation by eliminating on-site wiring, saving time and reducing errors. Operating across a temperature range from -25°C to 70°C, this switch is suitable for various conditions including cold starts and warm process environments.
Mechanical life expectancy reaches 10 million cycles, endorsing its durability for high-use industrial settings such as conveyor end-of-travel detection, pneumatic actuator position confirmation, and material handling limit detection.
2 NO/2 NC snap action contacts for flexible circuitry. Metal housing provides mechanical robustness and protection. IP68, IP67, and IP66 ratings for high-level ingress resistance. Pre-cabled terminals ensure straightforward installation.
Mechanical life of 10,000,000 cycles supporting extensive use. Operating temperature from -25°C to 70°C suits diverse environments. Certified to international standards including UL, IEC, EN, CSA, and RoHS. Compact dimensions for versatile mounting in control panels.
Ideal for conveyor systems, safety guards, and machine tools. Manufactured in Indonesia with quality assurance.
This Safety Limit Switch is essential for reliable end-position sensing and safety interlocks in industrial, manufacturing, material handling, and electrical distribution applications. Explore more limit switches and industrial sensors at EnvMart for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 2 normally open (NO) and 2 normally closed (NC) snap-action contacts, allowing for versatile circuit designs.
The dimensions of this unit are 70mm in length, 30mm in width, and 16mm in depth, making it compact for flexible mounting options.
The maximum operating temperature for the XCSM4102L1 is 70°C, which allows it to function effectively in various industrial environments.
It has a switching current capacity of 1.5A for AC applications and can handle DC loads up to 250V.
This safety limit switch utilizes a roller plunger actuator, which provides precise actuation for safety interlocks.
This model has ingress protection ratings of IP68, IP67, and IP66, ensuring it is suitable for harsh environments with dust and moisture exposure.
The mechanical life expectancy of the XCSM4102L1 is rated at 10 million cycles, supporting extensive use in industrial applications.
It features pre-cabled terminals, which simplify installation by eliminating the need for additional wiring, making setup straightforward.
The operating force required for the actuator of this model is 35N, providing a precise response for safety applications.
This safety limit switch is certified to international standards including UL, IEC, EN, CSA, and RoHS, ensuring compliance with safety regulations.
The minimum operating temperature for the XCSM4102L1 is -25°C, allowing it to operate in cold environments effectively.
This safety limit switch is manufactured in Indonesia, ensuring quality assurance in its production.
